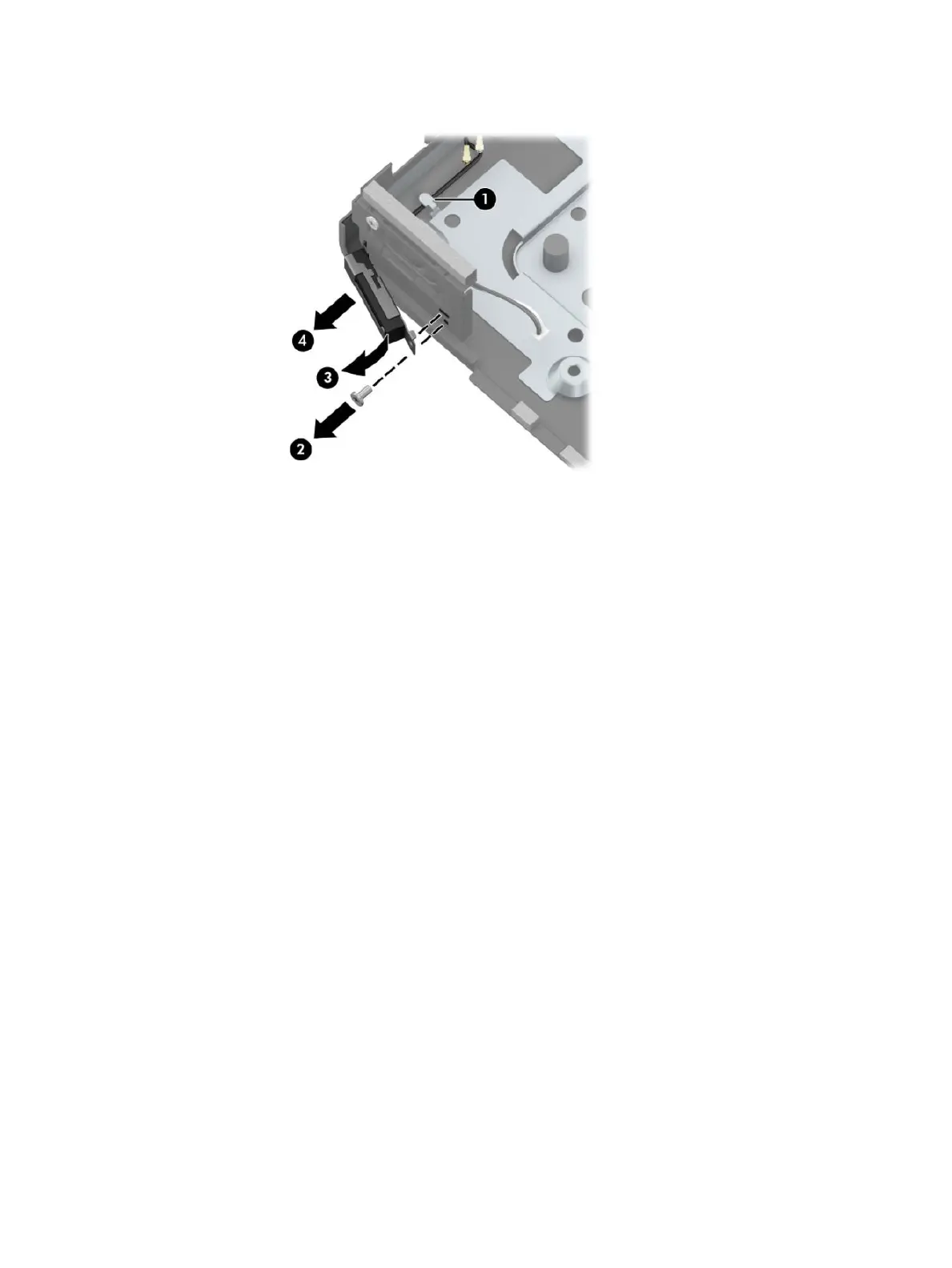

14. Rotate and remove the antenna (3), and then pull the cable out of the front of the chassis (4).

Reverse the removal procedure to install the WLAN antennas and cables.

36 Chapter 4 Removal and replacement procedures
