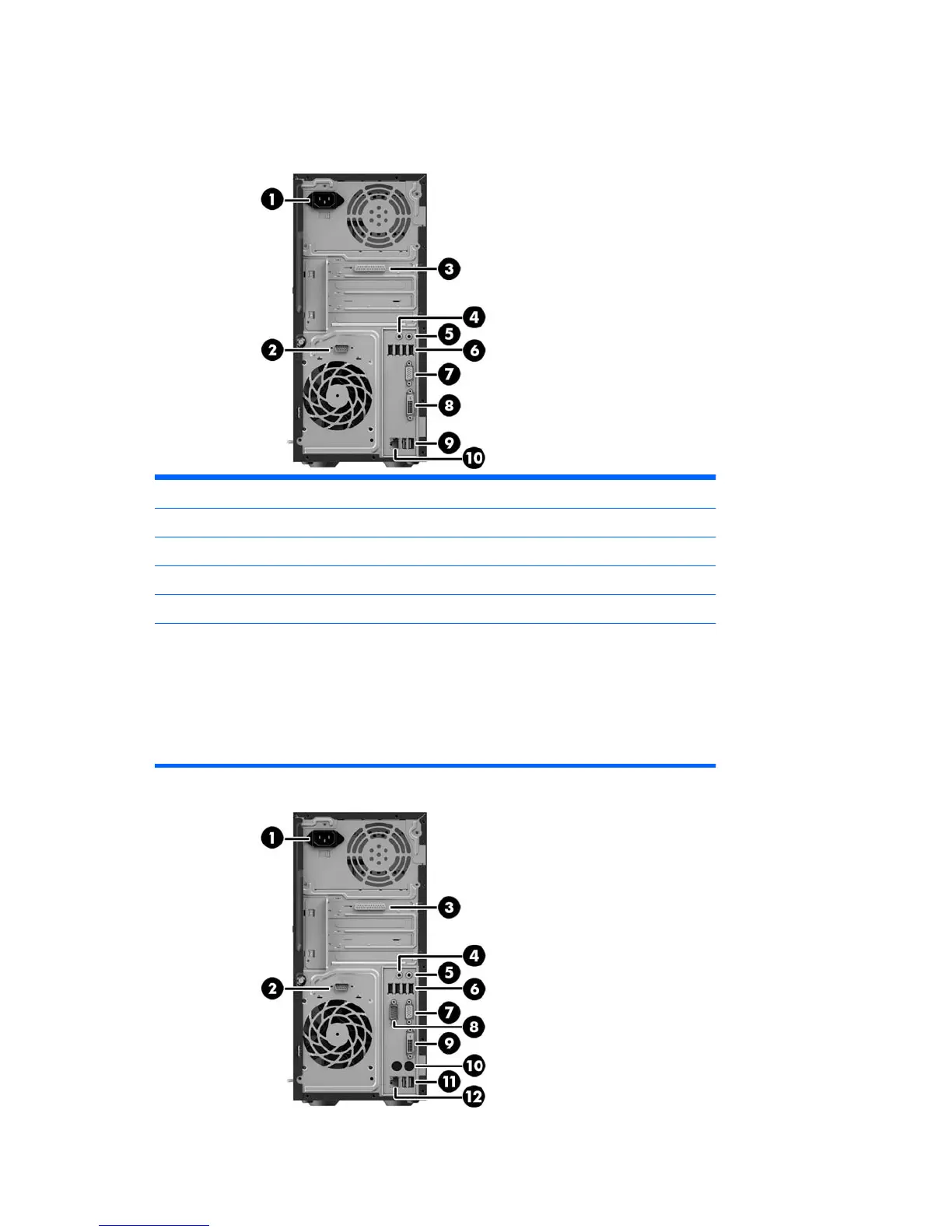

Rear panel components
Models with different sets of I/O options are available, as shown in the following images.
1 Power cord connector 6 (2) USB 3.0 ports (left); (2) USB 2.0 ports
2 Serial port (optional) 7 VGA connector
3 Parallel port (optional) 8 DVI-D connector
4 Audio line in 9 (2) USB 2.0 ports
5 Audio line out 10 RJ-45 network connector
NOTE: When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if
you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at
any time by double-clicking the Audio Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics
card and/or the integrated graphics on the system board may be used. The specific graphics card installed
and software configuration will determine the behavior.
The system board graphics can be disabled by changing settings in Computer Setup.
6 Chapter 2 Product Features
