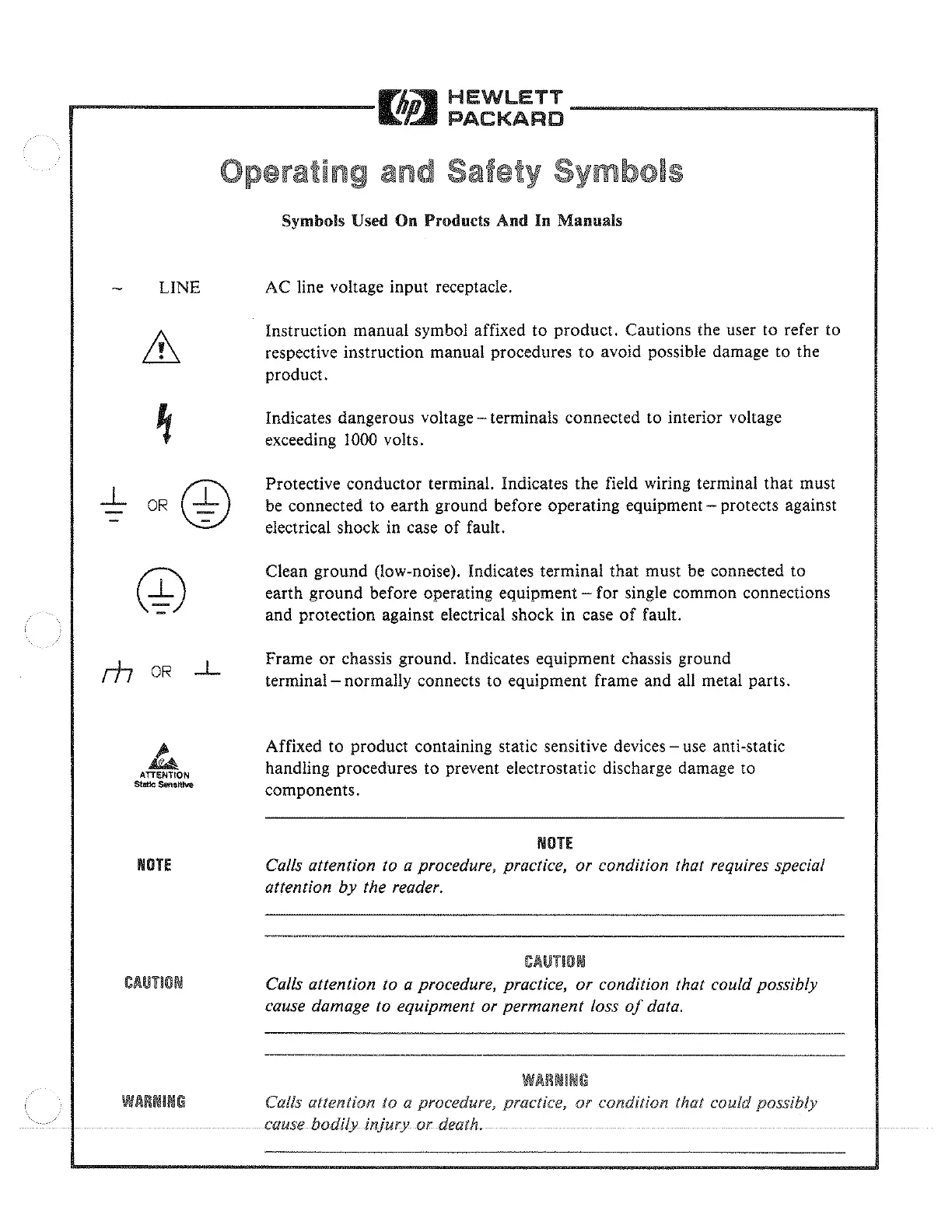

Operating and Safety Symbols
Symbols Used On Products And In Manuals
AC
line voltage input receptacle.
Instruction manual symbol affixed to product.
Cautions the user to refer to
respective instruction manual procedures
to
avoid possible damage to the
product.
Indicates dangerous
voltage-
terminals connected to interior voltage
exceeding
1000
volts.
.J_
OR@
Protective conductor terminal. Indicates the field wiring terminal that must
be
connected to earth ground before operating
equipment-
protects against
electrical shock in case
of
fault.
rh
0
OR
~
ATTENTION
Static
Sensltlw
NOTE
CAIJTIIIIII
_L
Clean ground (low-noise). Indicates terminal that must be connected to
earth ground before operating
equipment-
for single common connections
and protection against electrical shock in case
of
fault.
Frame or chassis ground. Indicates equipment chassis ground
terminal-
normally connects to equipment frame and
all
metal parts.
Affixed to product containing static sensitive devices- use anti-static
handling procedures to prevent electrostatic discharge damage
to
components.
NOTE
Calls attention to a procedure, practice, or condition that requires special
attention by the reader.
CAIJTION
Calls attention to a procedure, practice, or condition that could possibly
cause damage to equipment or permanent loss
of
data.
WAIIIIIIIIIIl
Calfs attention to a procedure, practice, or condition that could possibly
cause bodily injury or death.
