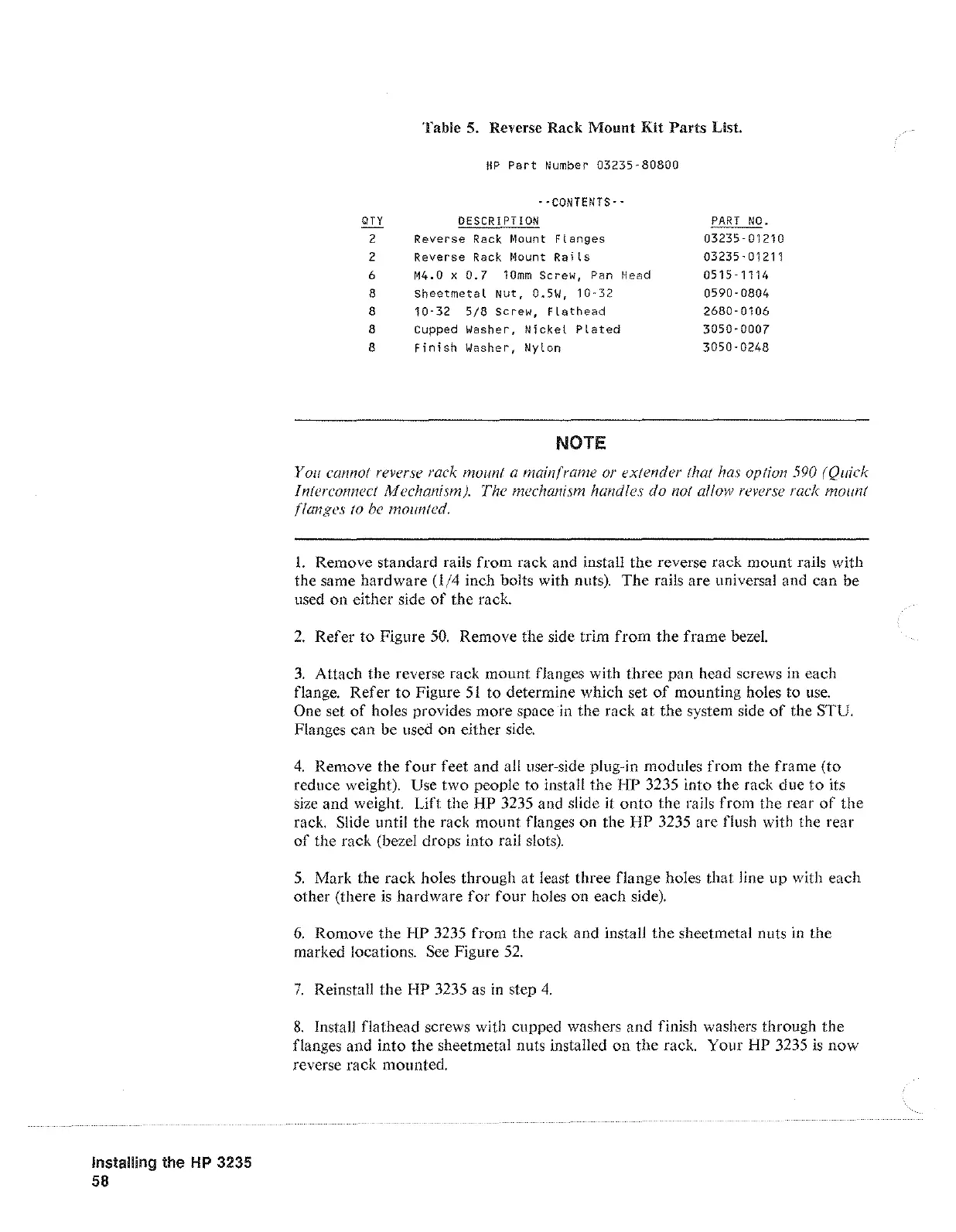

Installing the
HP
3235
58
Table 5. Reverse
Rack
Mount
Kit
Parts
List.
OTY
2
2
6
8
8
8
8
HP
Part
Number
03235·80800
··CONTENTS··
DESCRIPTION
Reverse
Rack
Mount
Flanges
Reverse
Rack
Mount
Rails
M4.0 x
0.7
10mm
Screw, Pan Head
Sheetmetal
Nut,
O.SW,
10-32
10-32
5/8
Screw,
Flathead
Cupped Washer, Nickel
Plated
Finish
Washer, Nylon
NOTE
PART
NO.
03235·01210
03235·01211
0515·1114
0590·0804
2680·0106
3050·0007
3050·0248
You cannot reverse rack mount a mainf'rarnc
or
extender that has option 590 (Q1dck
Interconnect
Mechanism). The mechanism handles do not allow reverse rack mount
flanges to be mounted.
1.
Remove
standard
rails
from
rack and install
the
reverse rack
mount
ralls
with
the same
hardware
(1/4 inch bolts with nuts).
The
rails
are
universal and
can
be
used
on
either
side
of
the
rack.
2.
Refer
to
Figure
50.
Remove the side trim
from
the
frame
bezel.
3.
Attach
the
reverse rack
mount
flanges with
three
pan
head screws in each
flange.
Refer
to
Figure
51
to
determine
which
set
of
mounting holes
to
use.
One set
of
holes provides
more
space in
the
rack
at
the
system side
of
the STU.
Flanges
can
be used on
either
side.
4.
Remove
the
four
feet
and
all user-side plug-in modules
from
the
frame
(to
reduce weight). Use
two
people
to
install
the
HP
3235
into
the
rack
due
to
its
size
and
weight.
Lift
the
HP
3235 and slide it
onto
the
rails
from
the rear
of
the
rack. Slide until the rack
mount
flanges on
the
HP
3235 are flush with the
rear
of
the
rack
(bezel drops
into
rail slots).
5.
Mark
the
rack
holes through
at
least three flange holes
that
line
up
with
each
other
(there
is
hardware
for
four
holes
on
each
side).
6.
Romove
the
HP
3235
from
the
rack
and
install
the
sheetmetal nuts in
the
marked locations. See Figure
52.
7.
Reinstall
the
I-!P
3235 as in step
4.
8.
Install
flathead
screws with cupped washers
and
finish washers through
the
flanges
and
into
the
sheetmetal nuts installed
on
the
rack. Your
HP
3235
is
now
reverse
rack
mounted.
