Installing

the

HP 34592A

Wire

Distribution

Frame

The

34592A

a standalone quick interconnect mechanism which holds

ten

feedthrough panels. This provides a central wiring center

for

non-switched sig-

nals. Figure

56 illustrates a Wire Distribution Frame with a Low-Frequency

Feedthrough

Panel installed.

The

Wire Distribution Frame

mounts

in a 19 inch

EIA rack. You rack mount

the

Wire Distribution Frame using

the

standard

rack

mounting kit 5061-9681. Installation instructions are included in

the

rack

mount

kit.

load the Wire Distribution Frame, refer to the section titled "Installing

Feedthrough Panels".

Refer

the section titled "Installing

the

Quick

Interconnect

Fixture"

for

connecting terminal blocks in a

fixture

the

modules.

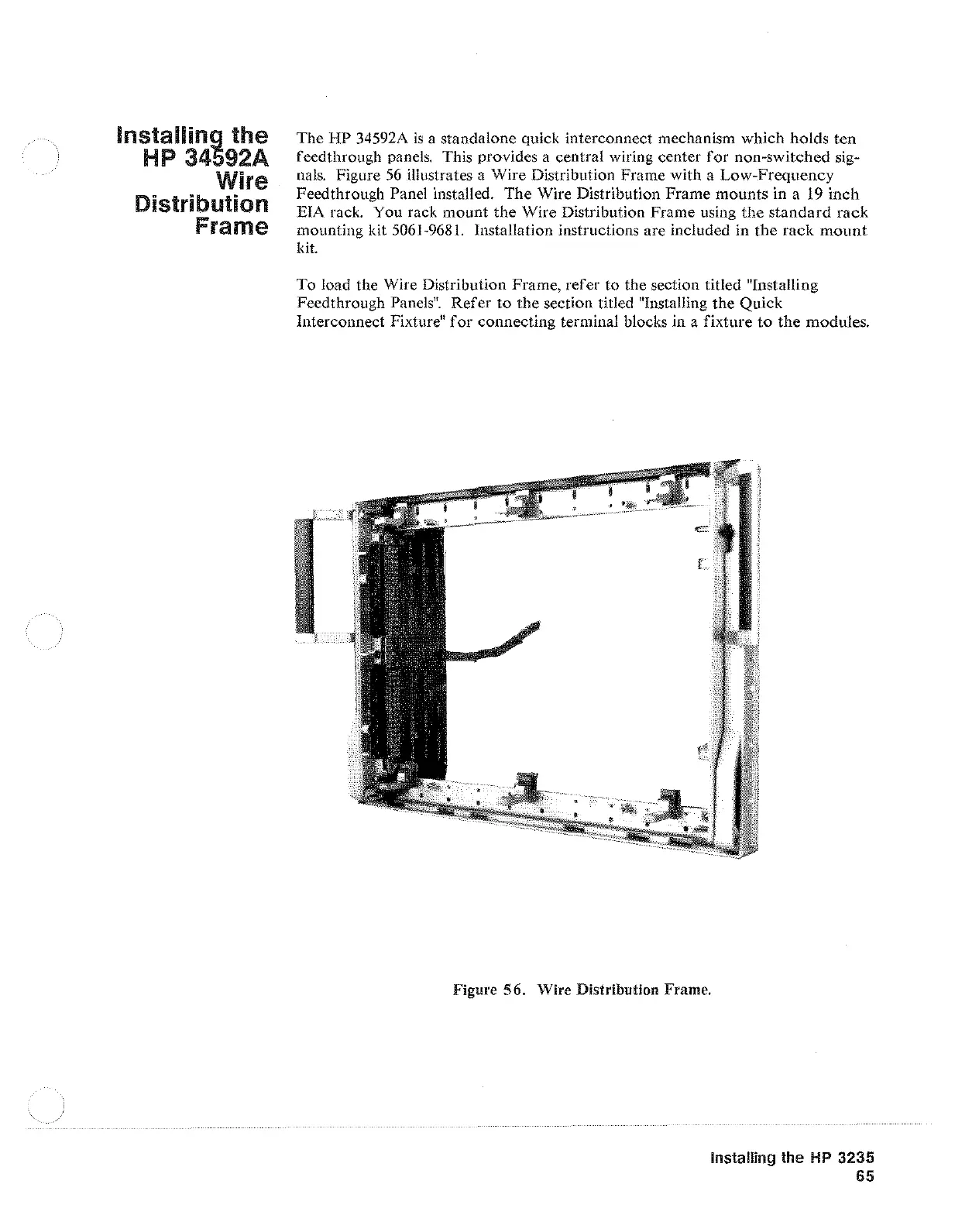

Figure

56.

Wire Distribution Frame.

Installing the

3235
