3 Illustrated parts catalog

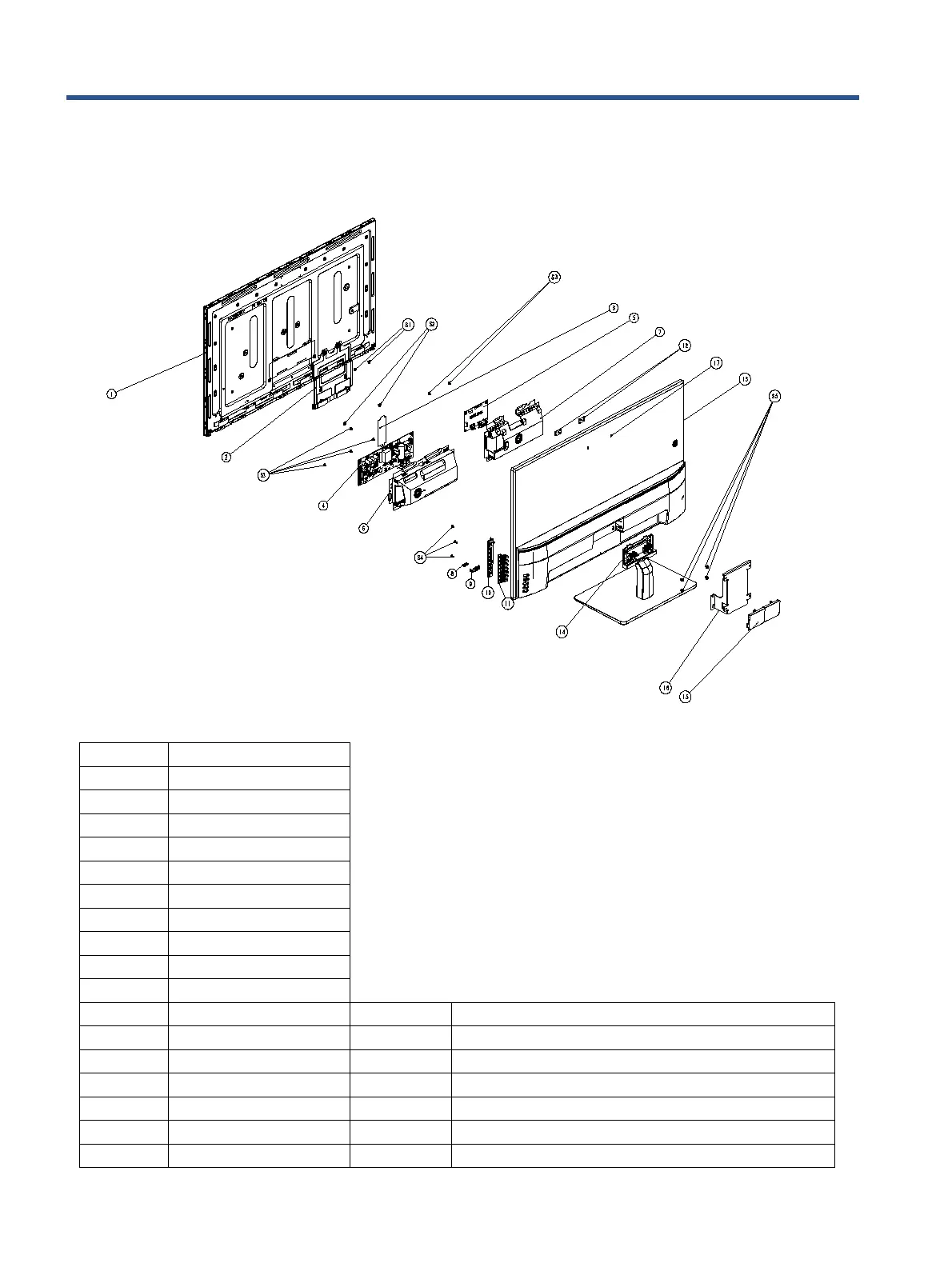

To identify the monitor major components, use this illustration and table.
No.
Description
1 PANEL
2 BKT_HINGE
3 INSULATING SHEET
4 POWER BOARD NA
5 MAIN BOARD
6 MAINFRAME
7 MAINFRAME
8 KEY BOARD
9 LENS
10 KEY BOARD
11 KEY No. Description
12 BKT_WEBCAM S1 SCREW M4 4(BKT HINGE/PANEL)
13 REAR_COVER S2 SCREW M4 6(BKT HINGE/PANEL)
14 stand ass'y NA AUO S3 SCREW D3 6(MAIN BOARD/POWER BOARD/MAINFRAME)
15 COVER_HINGE S3 SCREW D3 6(MAIN BOARD/POWER BOARD/MAINFRAME)
16 BKT_VESA S4 SCREW M3 8(KEY BOARD/REAR COVER)
17 PLUG S5 SCREW M4 10(STAND ASSY/REAR COVER)
