HP 3314A Operating Manual

ARB (cont)
EXT TRIG
@
Z Axis Input
CH
500 Feedthru
Terminations
(Optional)
t ~ t ....
L L L L LLLLLL
[l L L LILLLLLL
[GL L~ L II G ~ G v rI
Trigger on the rising edge .
The potarfty 3314A 's Z Axis output Is set at the factory to be compatible with OSCm08CO~S that Intenslfy their display when
a negat ille lIol1ege Is applied to thslr Z Axis Input . The Service Mllnual has Instructions for SERVICE TRAINED personnel who
lira eware of the potential hll2ards inside the 3314A to chanoe the poIarltv ofthe 3314A's Z Axis output. Under no clrcumlltllOCN
should lilly ope1l1tor romoVlI ony IlC1I1WS, COVMS, shltlkb or ott\« 3314A COI11j)On8/\ts.

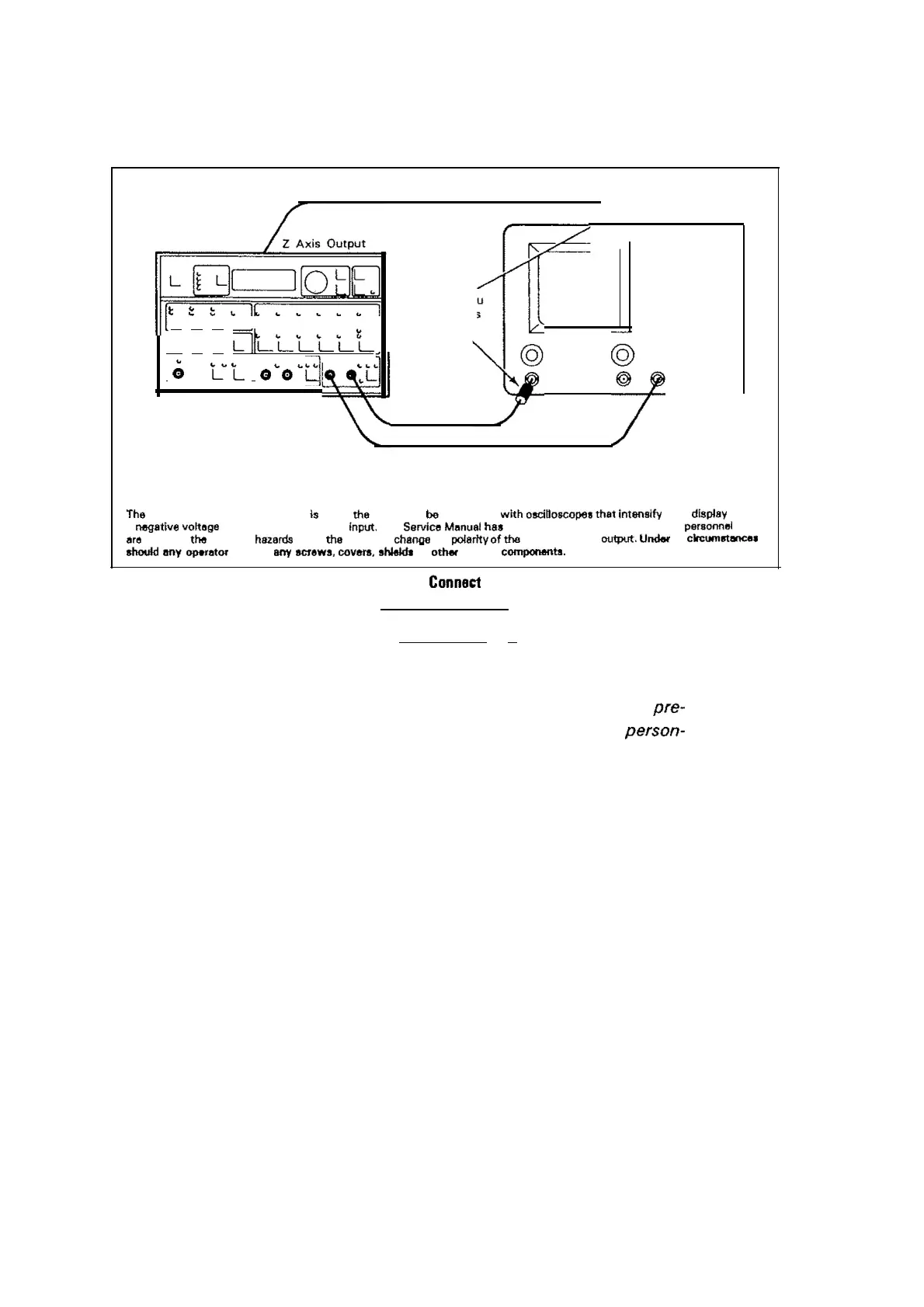

Figure 3. How To Connect An Oscilloscope
WARNING I
The Z Axis polarity selection switch is located inside the 3314A
where dangerous voltages, capable of causing death, are pre-
sent. Refer switch position selection to service-trained person-
nel who are aware of the dangers involved and familiar with
safe installation practices.
