Model 333A/334A Section VI
19
\
INDEX
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-hp- PART NO.
0370-0160
3030-0001
2370-0016
6 1B -4OD -4
5040 -0669
00333-04001
5020-0630
3030-0004
2 390 -0009
2190-0010
5040-5 158
2
530 - 000 3
0510-0005
3050-0017
DESCRIPTION
Knob
Set screw
Screw
Plate: frequency dial
Disc assemb1y:vernier
drive
Dial: FREQUENCY
Dial: hub
Set screw
Screw
Lock washer
Indicator
Screw
Clip: retaining
Washer
INDEX
I -b-PARTNO. I DESCRIPTION
15
16
17
19
20
21
22
23
24
25
26
27
28
29
5020-0639
00333-63601
5020-0327
5040-0631
3030-0022
1500-0004
5060-0020
5060-002
1
5000-0637
3050-0180
0033 1-00102
2460
-0004
2190-0057
3 10 14889
Casting Cap drive
Gear Spur assembly
shaft
Bracket:
cap mounting
Set
screw
Coupler: insulator
Gear assembly
Gear assembly
Spring: thrust
Washer
Plate: cap mounting
Bolt
Lock washer
Switch:
slide DPDT SE

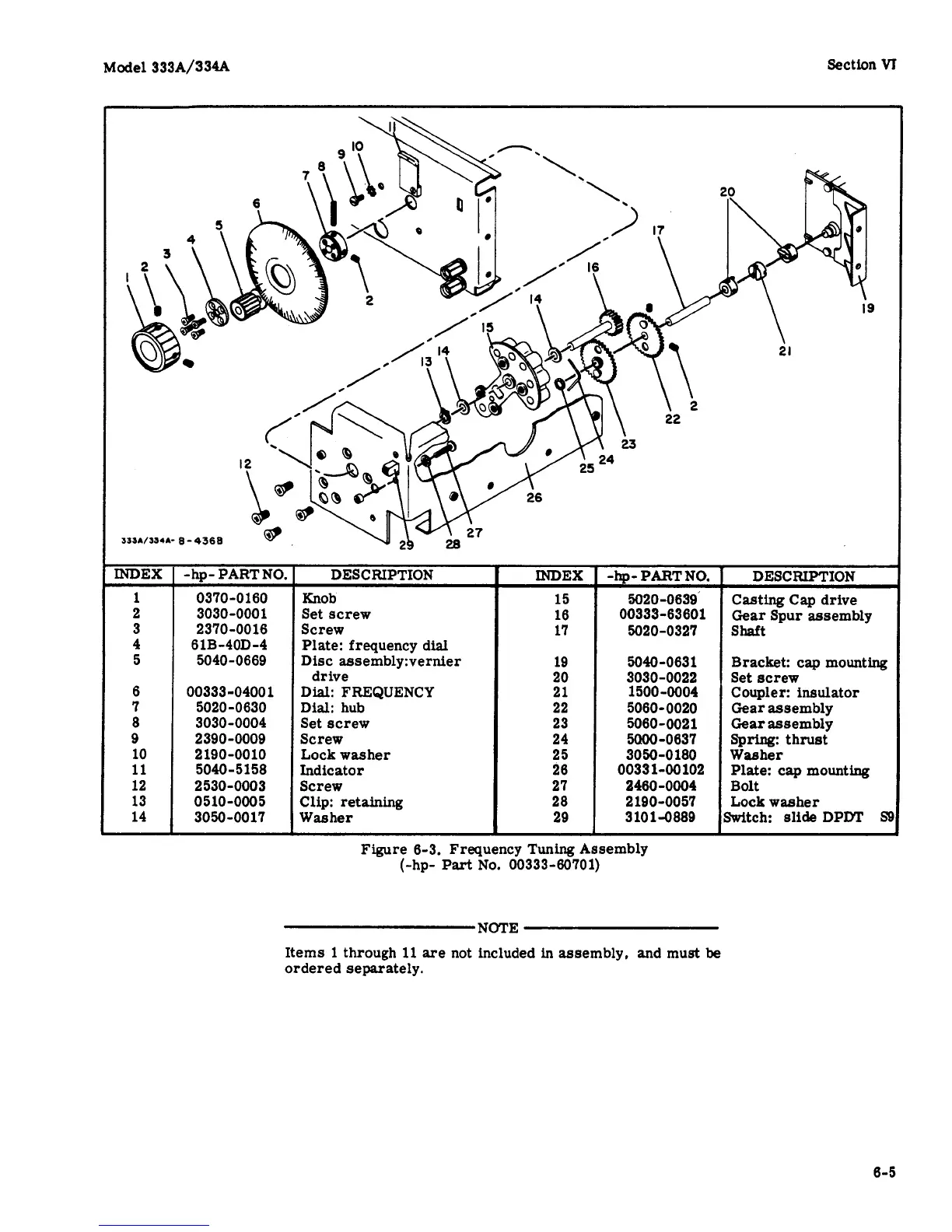

Figure 6-3. Frequency Tuning Assembly
(-hp-
Part NO. 00333-60701)
NOTE
Items
1 through 11 are not included in assembly, and must be
ordered separately.
