HP 334A User Manual

Model 333A/334A
Appendix C

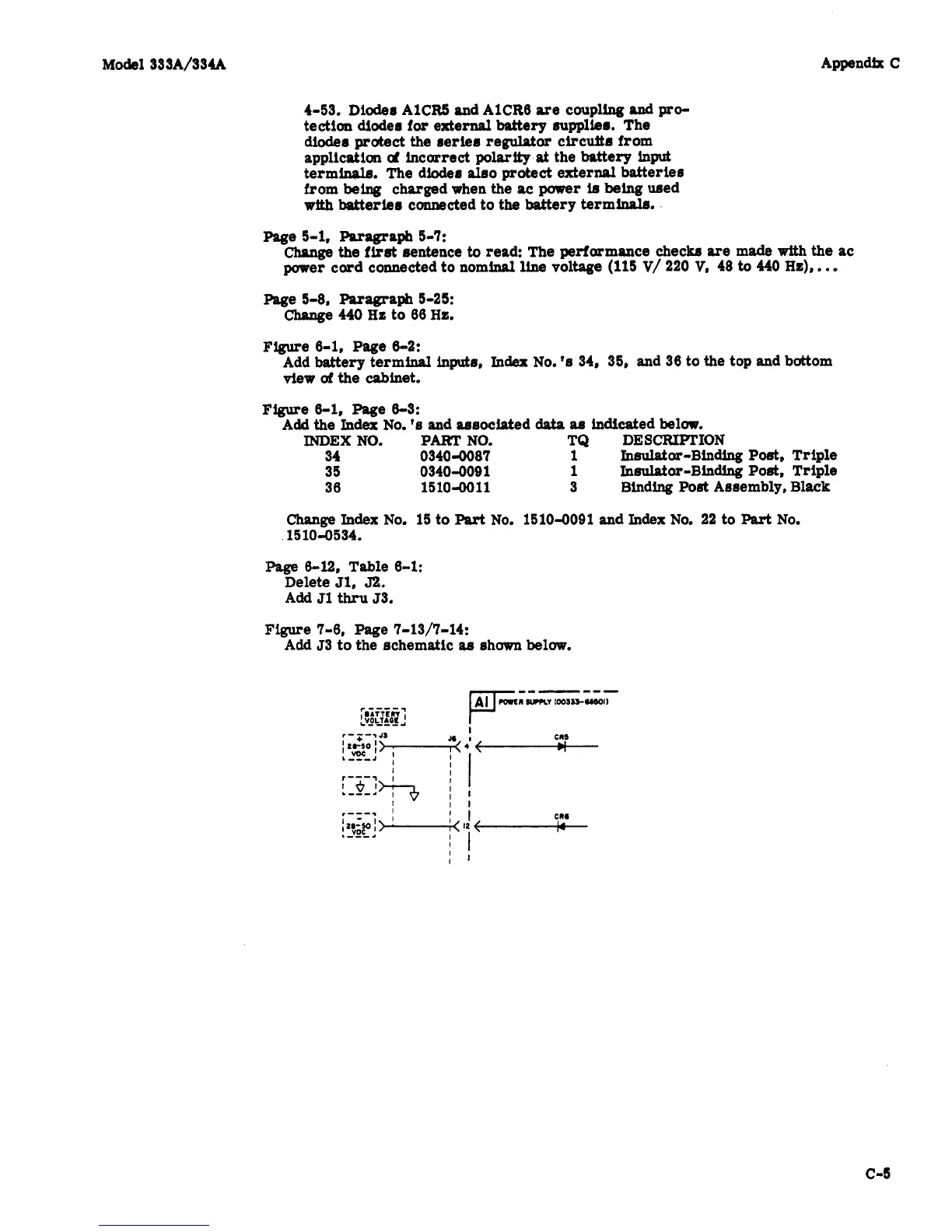

4-53.
Diode6 AlCR5 and AlCR6 are coupling and pro-
tection diode6 for external battery supplier. The
diode6 protect the retie6 regulator circuit8 from
application
d incorrect polarity at the battery input
terminrcle. The diode6 oleo protect external batterie6
from
being charrged when the ac power ia being ueed
with batterier connected to the battery terminah
Page
5-1, Paragraph 5-7:
Change the first sentence to read The performance check6 are made with the ac
power cord connected to nominal line voltage (115 V/ 220 V, 48 to 440 HE), . . .
Page 5-8, Paragraph 5-25:
Change 440 HE to 66 HE.
Figure 6-1, Page 6-2:
Add battery terminal inputs, Index No. '8 34, 35, and 36 to the top and bottom
view
d the cabinet.
Figure6-1, Page6-3:
Add the Index No. 'e and aeeociated data aa indicated below.
INDEXNO. PARTNO. TQ DESCRIPTION
34 034010087 1 Ineulator-Binding Poet, Triple
35 0340-0091 1 Ineulator-Binding Post, Triple
36 1510-0011 3 Binding Post Aeeembly, Black
Change Index No. 15 to Part No. 1510-0091 and Index No. 22 to Part No.
1510-0534.
Page 6-12, Table 6-1:
Delete J1, 52.
Add J1 thru J3.
Figure 7-6, Page 7-13/7-14:
Add 53 to the echematic 88 shown below.
c-5
