Bottom cover
Table 5-2 Bottom cover descriptions and part numbers
Description Spare part number
Bottom cover, pike silver L81409-001
Bottom cover, stone silver L81410-001
Before removing the bottom cover, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the rubber feet (see Computer feet on page 27).
To remove the bottom cover:

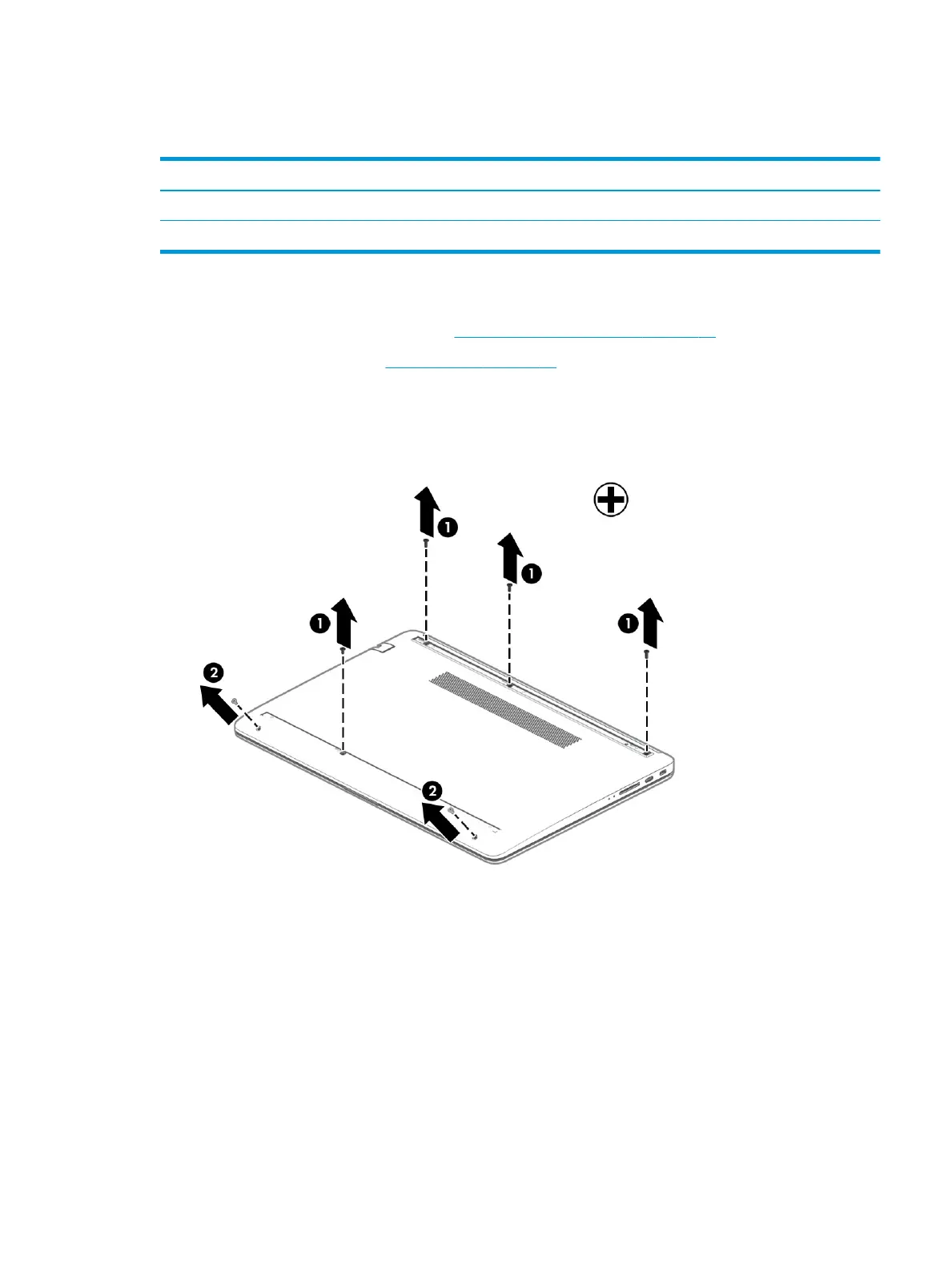

1. Remove the four Phillips M2.5 × 6.0 screws (1) from under the feet and the two Phillips M2.5 × 4.0
screws (2) from the front part of the bottom cover.
Component replacement procedures 29
To Next Page
