Fingerprint sensor
Table 5-9 Fingerprint sensor description and part number
Description Spare part number
Fingerprint sensor, pike silver L81413-001
Fingerprint sensor, stone silver L81414-001
Fingerprint sensor bracket L84322-001
Fingerprint sensor cable L81412-001
Before removing the ngerprint sensor, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the rubber feet (see Computer feet on page 27).
3. Remove the bottom cover (see Bottom cover on page 29).
4. Remove the battery (see Battery on page 31).
To remove the ngerprint sensor:

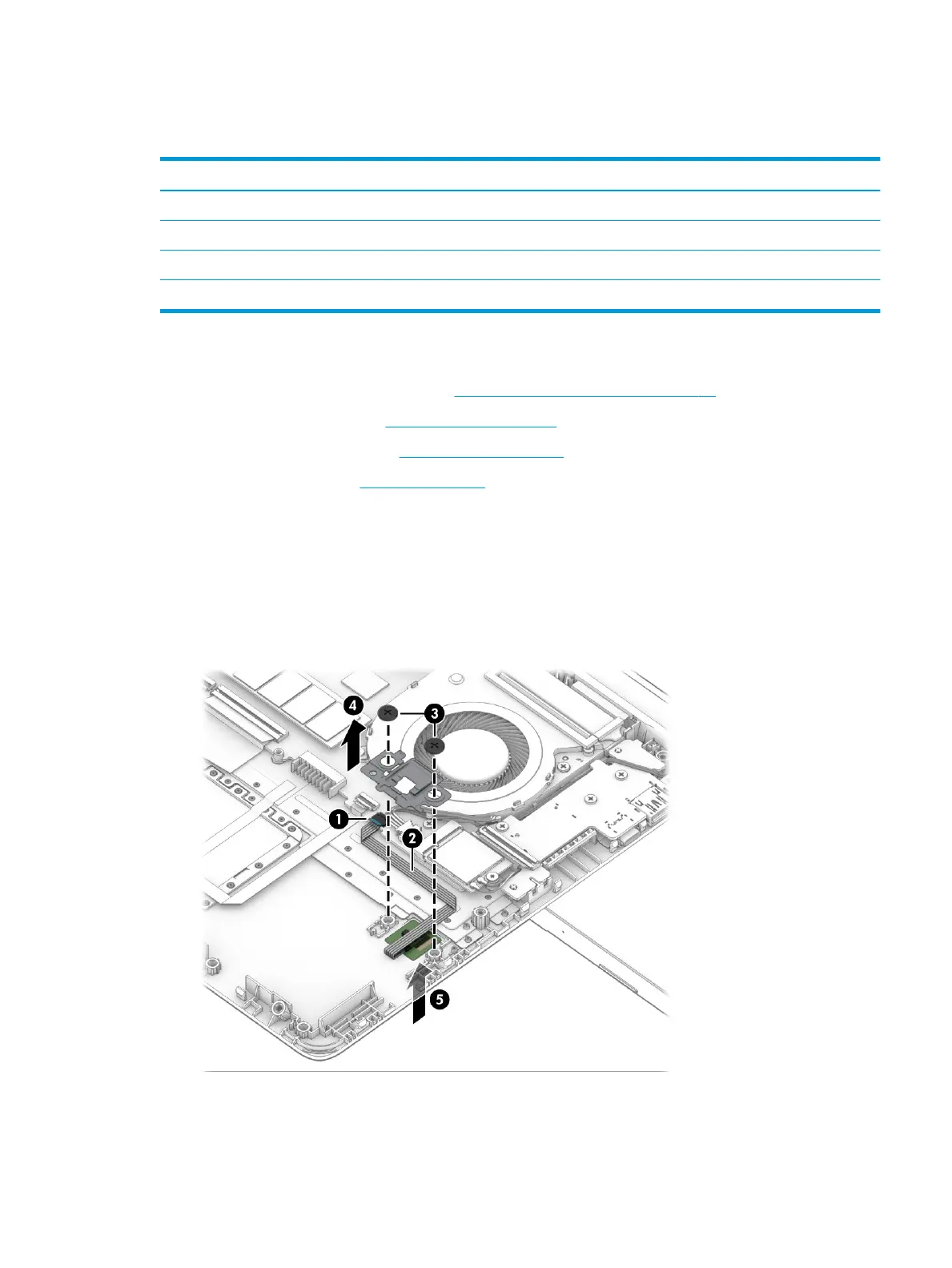

1. Disconnect the cable (1) from the ZIF connector on the system board, and the lift the cable to release it
from the computer (2).
2. Remove the two Phillips M2.0 × 2.0 screws (3) that secure the sensor bracket to the computer, and then
remove the bracket (4).
3. From the bottom, push up on the ngerprint sensor (5) to remove it.
Reverse this procedure to install the ngerprint sensor.
Component replacement procedures 39
