Solid-state drive
Table 5-7 Solid-state drive descriptions and part numbers
Description Spare part number
Solid-state drive, 512 GB, PCIe L25984-001
Solid-state drive, 256 GB, PCIe L25983-001
Solid-state drive, 256 GB, SATA-3 L56986-001
Solid-state drive, 128 GB, SATA-3 L25981-001
Optane memory module, 16 GB L34406-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the rubber feet (see Computer feet on page 27).
3. Remove the bottom cover (see Bottom cover on page 29).
4. Remove the battery (see Battery on page 31).
Remove the solid-state drive:

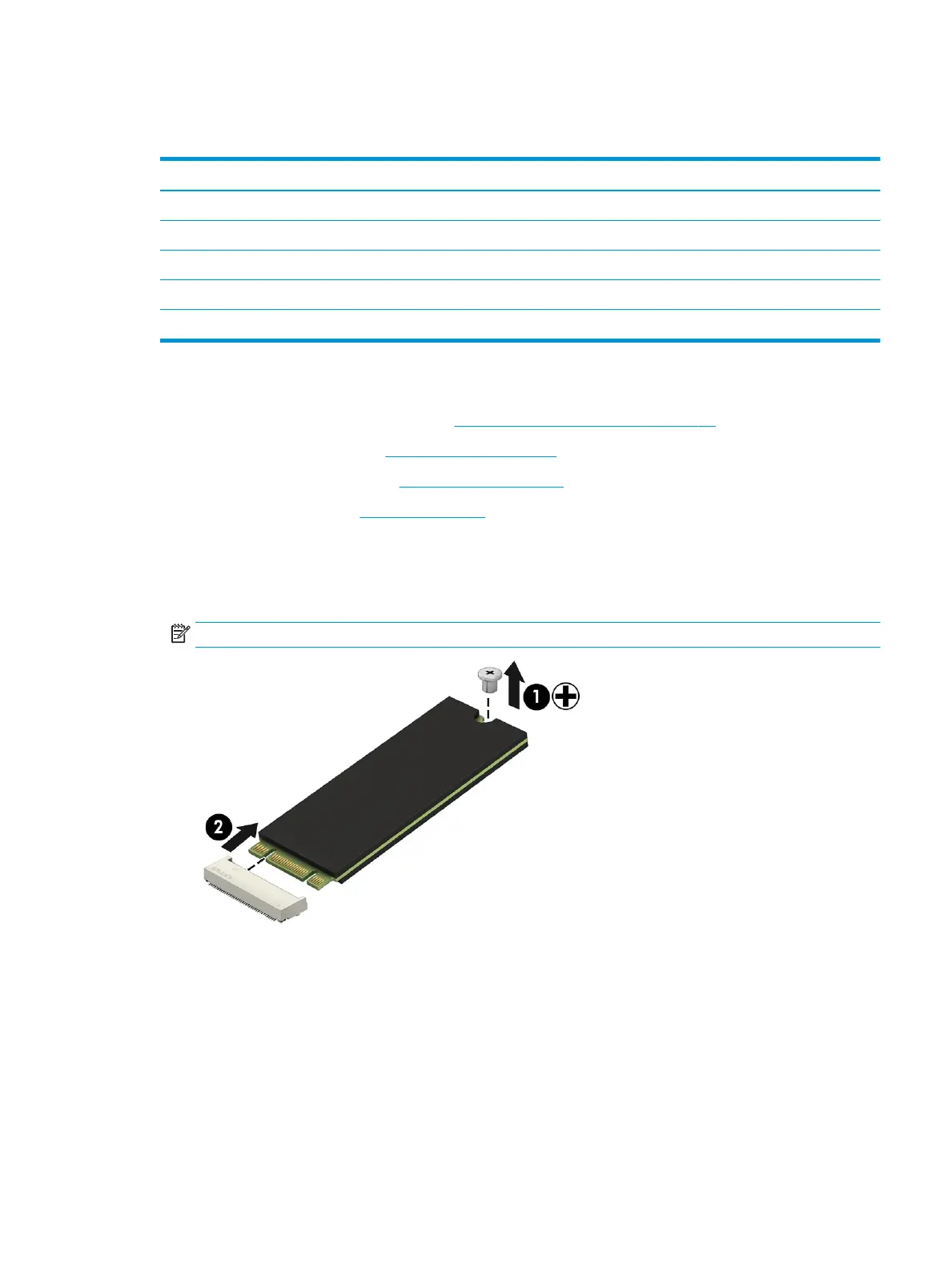

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive by pulling it away from the connector (2).
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
