Performance Tests
PDH/DSn Frequency Measurement and Looped Clock

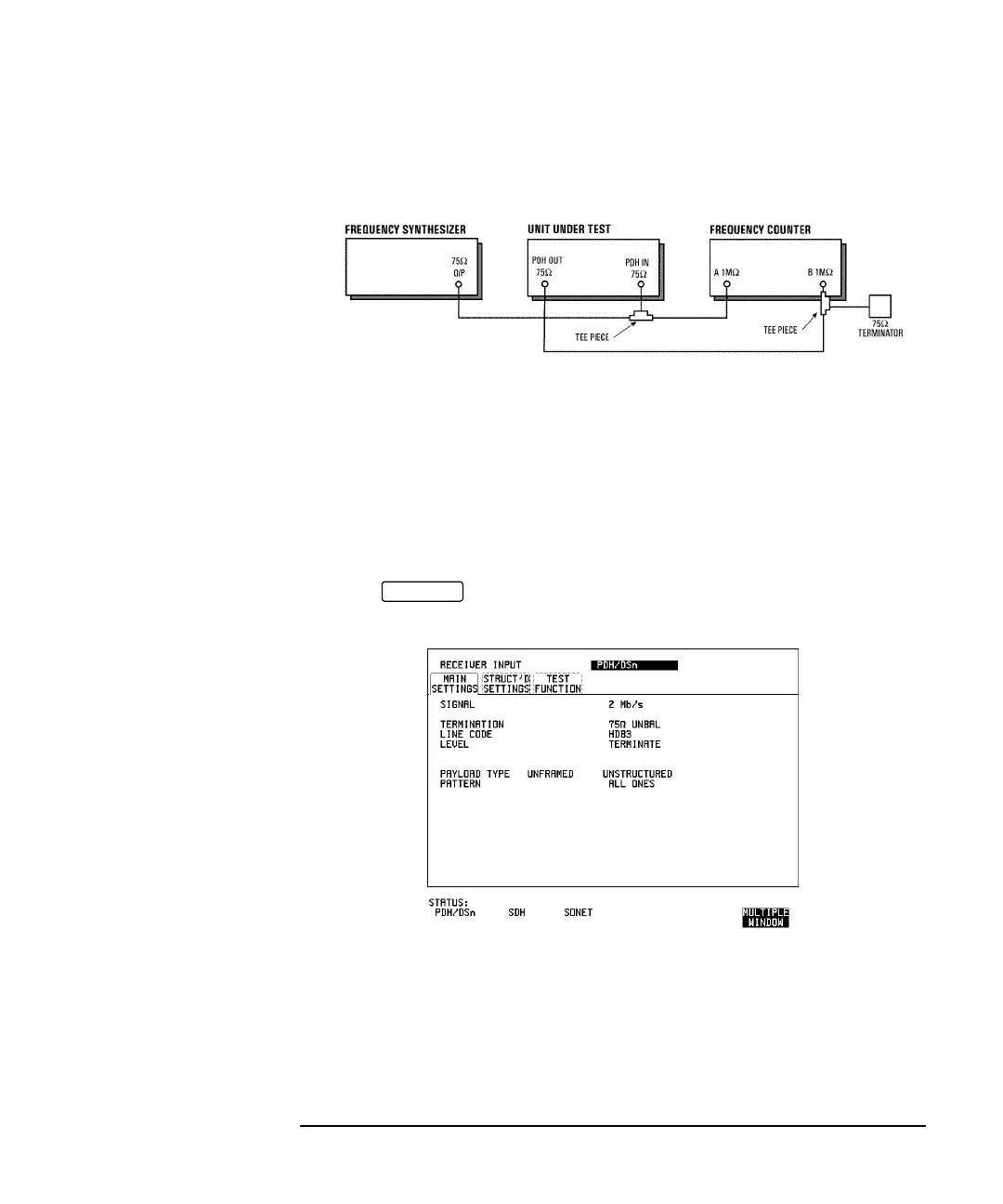

Figure 3-3 Receiver Frequency Measurement Test Setup
3 Set the Synthesizer to:
FREQUENCY - 1024.000 KHz sinewave
AMPLITUDE - +10dBm.
4 Set the frequency counter to RATIO A/B.
5 Press and set up the display as shown below.
RECEIVE
