HP 37718A - External Jitter Generation and Demod Output

3-98
Performance Tests
PDH Transmit/Receive Jitter Amplitude Accuracy
NOTE The Bit Rates available are dependent on the HP 37718A option.
External Jitter Generation and Demod Output
1 Add the Synthesizer and oscilloscope to the set-up as shown below.

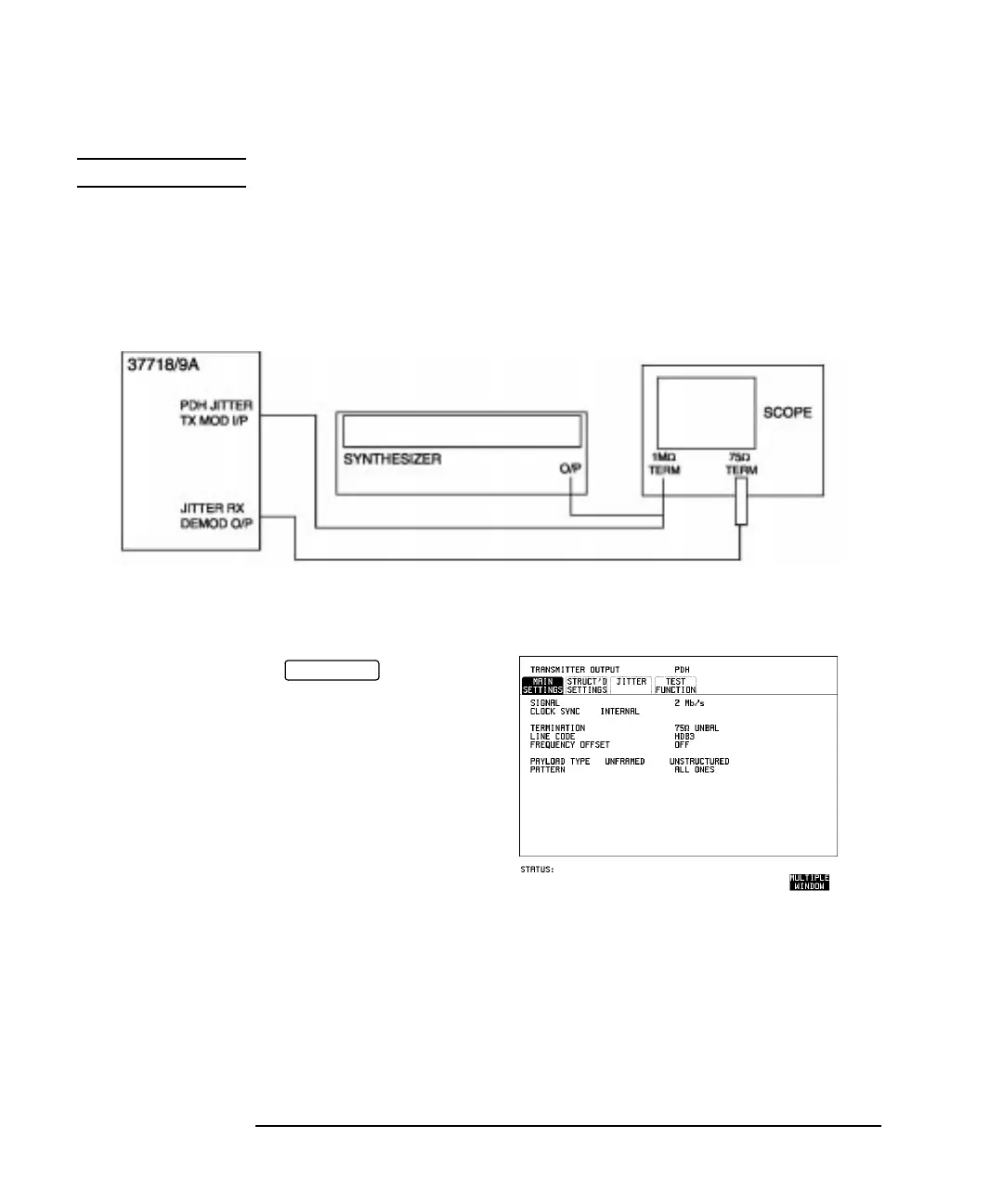

Figure 3-8 PDH External Jitter Generation and Demod Output Test Setup
2 Setup the HP 37718A
display as
shown opposite.
TRANSMIT
