SVC 5-4
FAN SHROUD
SENSOR
SCREWS
HEATER
STANDOFFS

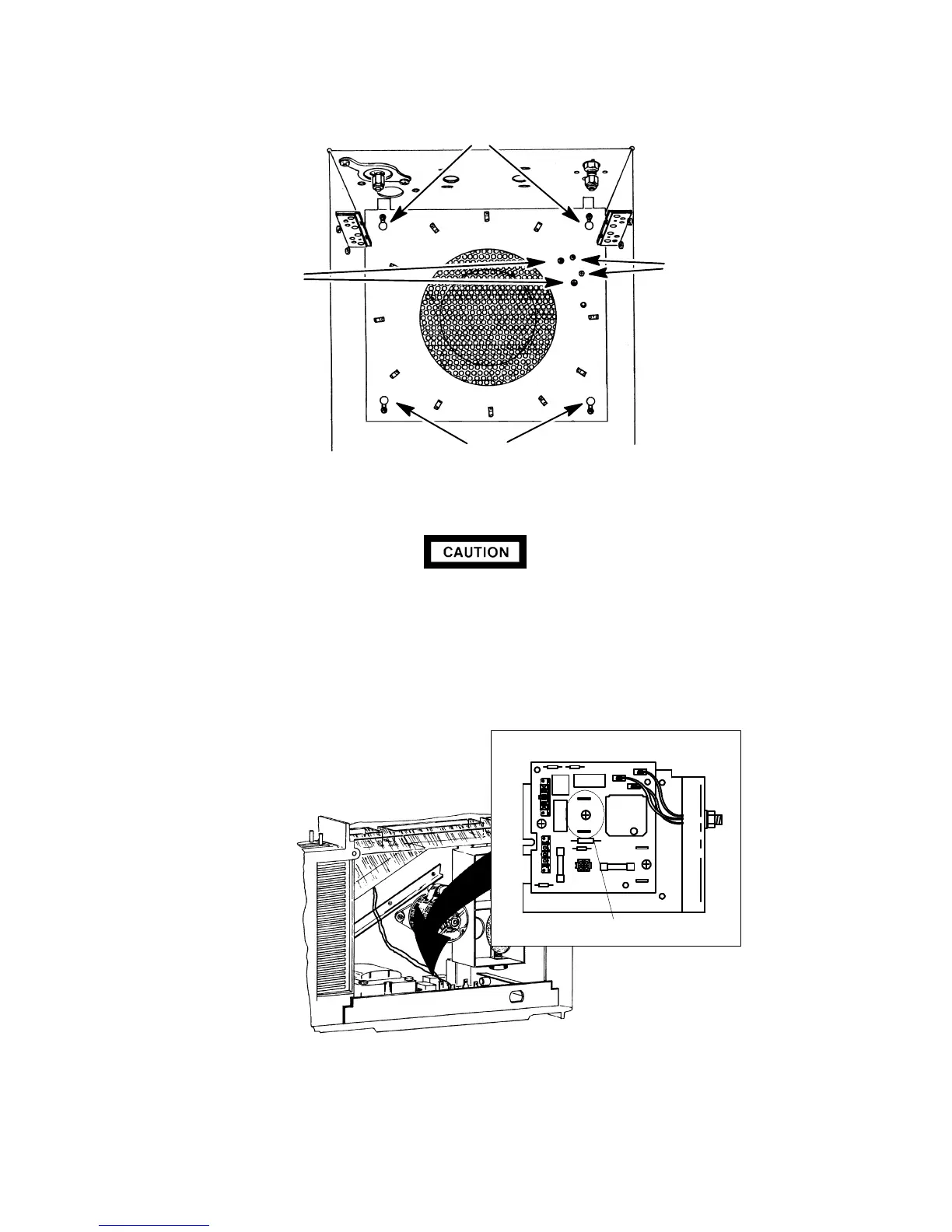

Fan Shroud
FAN SHROUD (AS VIEWED FROM INSIDE OVEN)
WHENDISCONNECTINGA PLUG,PULL ON THE PLUG NOT ONITSWIRES. PULLING
ON THE WIRES MAY CAUSE BREAKAGE.
14. At the rear of the instrument, disconnect the two heater element leads at the AC power supply
PCB.
HEATER ELEMENT
CONNECTION TERMINALS
15. From inside the oven, draw the heater leads through the opening in the rear of the oven.
