HP 5890 Series II - Page 183

SVC 5-21
20. Mount the air duct over the upper oven flap and secure using two screws.
21. After the new motor has been installed, route its wire harness along the same path used by the
old harness and secure it with plastic wire ties.

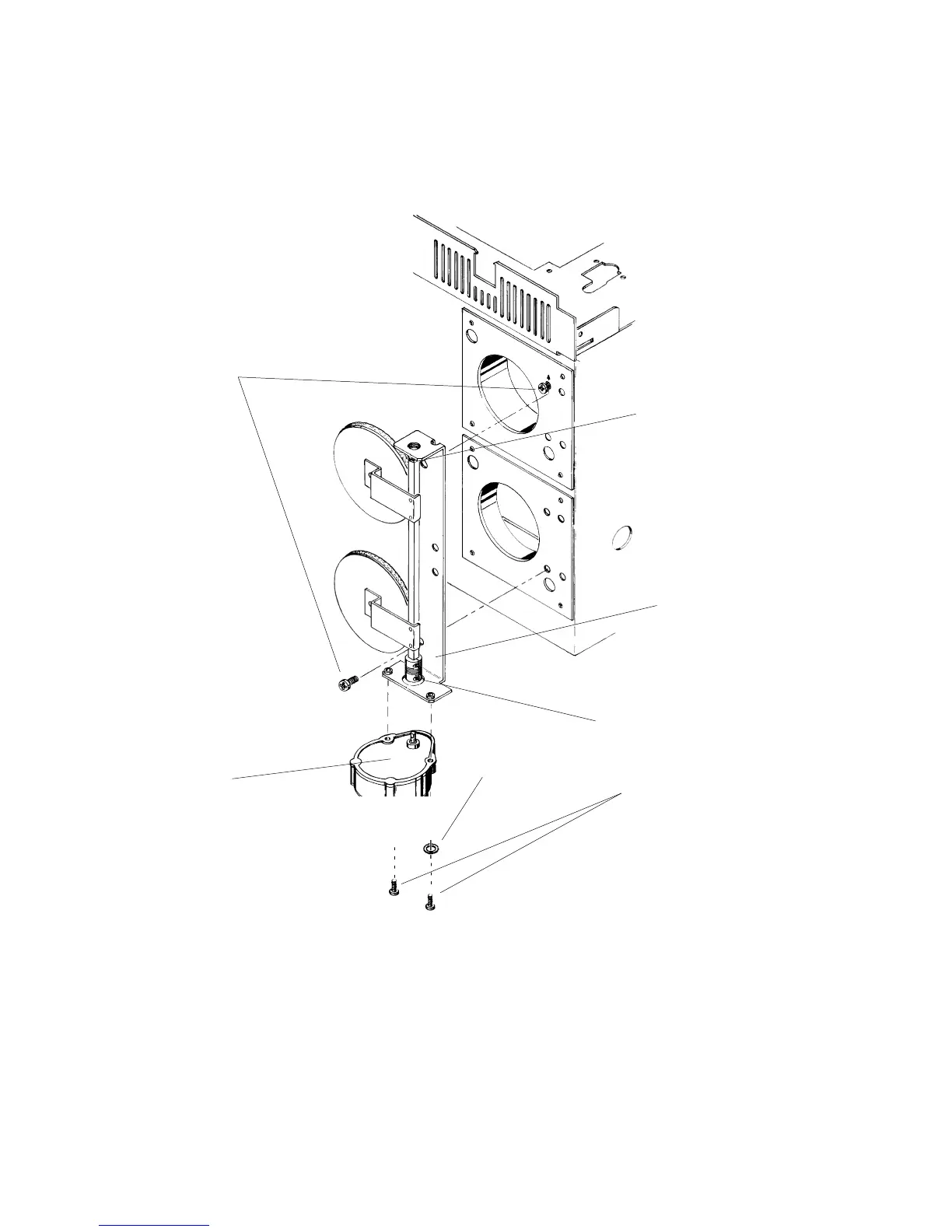

OVEN FLAP
PINS
1251-5963
SCREW M4 x 8 mm
0515-0910
FLAPPER
BUSHING
05890-20730
FLAPPER
BRACKET
05890-00440
FLEXIBLE COUPLING
1500-0671
SCREW M3 x 6 mm
0515-0055
STEPPER MOTOR
05890-60940
LOCK WASHER
2190-0468
