HP 5890 Series II User Manual

SVC 6-44

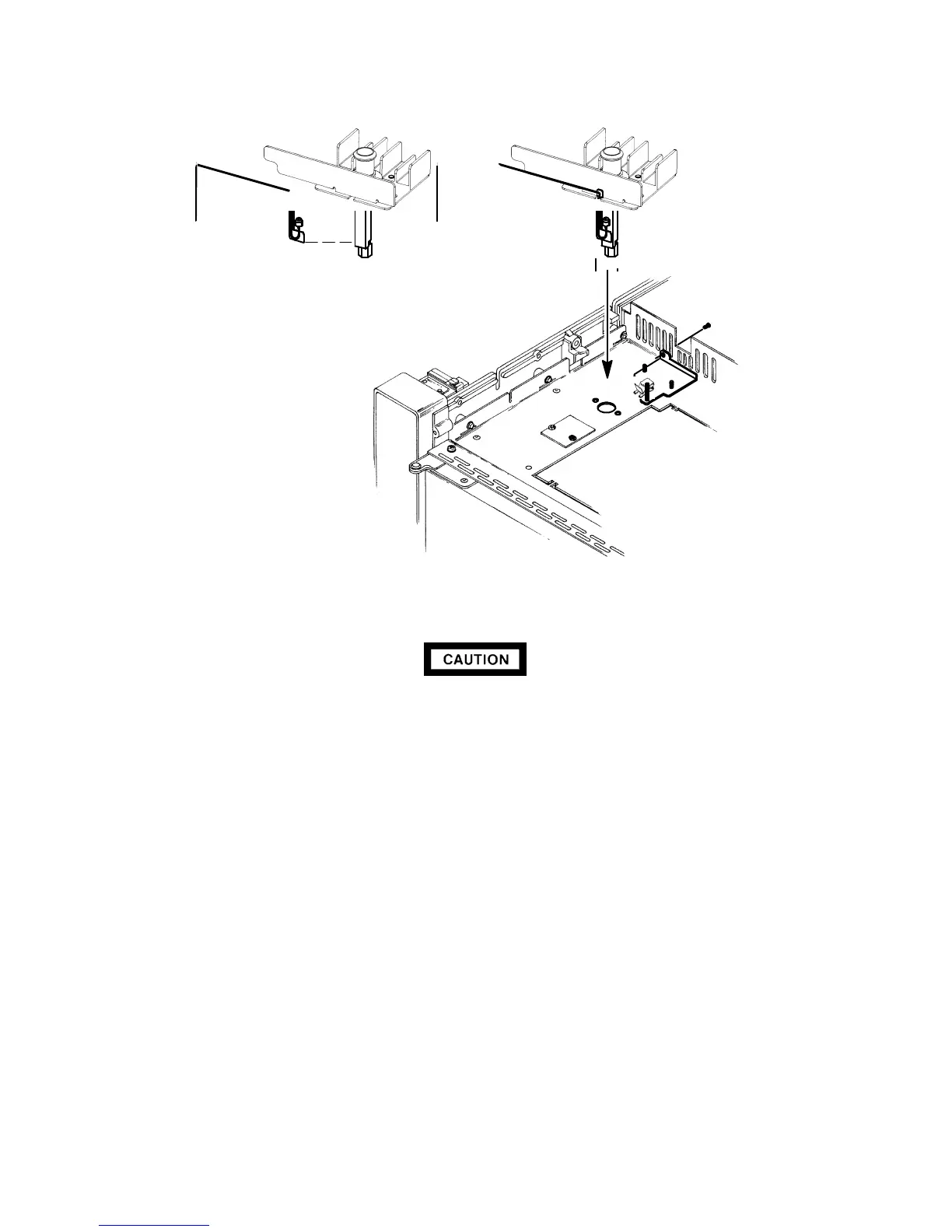

(a) (b)
23. Install the replacement cryo-blast weldment onto the inlet weldment.
24. Secure the inlet to the instrument using two screws.
Handle the heater and sensor cartridges with care to prevent breakage. The
cartridges (particularly the smaller sensor cartridge) are fragile.
25. Carefully slide the heater and sensor cartridges into the heated block portion of the inlet.
26. Install the air deflector and secure it to the weldment using one screw.
28. Install the liner and all other hardware (except the column) removed in step 5.
29. Restore the supply gas pressure.
30. Check for leaks at all of the newly mated fittings.
31. Turn off the supply gas.
32. Remove the cap/plug from the end of the inlet.
33. Install the column and associated hardware removed in step 5.
34. Install the left side panel and secure using two screws.
35. Install the injection port cover.
36. Restore power to the HP 5890 Series II.
