SVC 11-5
Remove/Replace Power Supply Transformer
HAZARDOUS VOLTAGES ARE PRESENT IN THE INSTRUMENT WHEN THE POWER
CORD IS CONNECTED. AVOID A POTENTIALLY DANGEROUS SHOCK HAZARD BY
DISCONNECTING THE POWER CORD BEFORE WORKING ON THE INSTRUMENT.

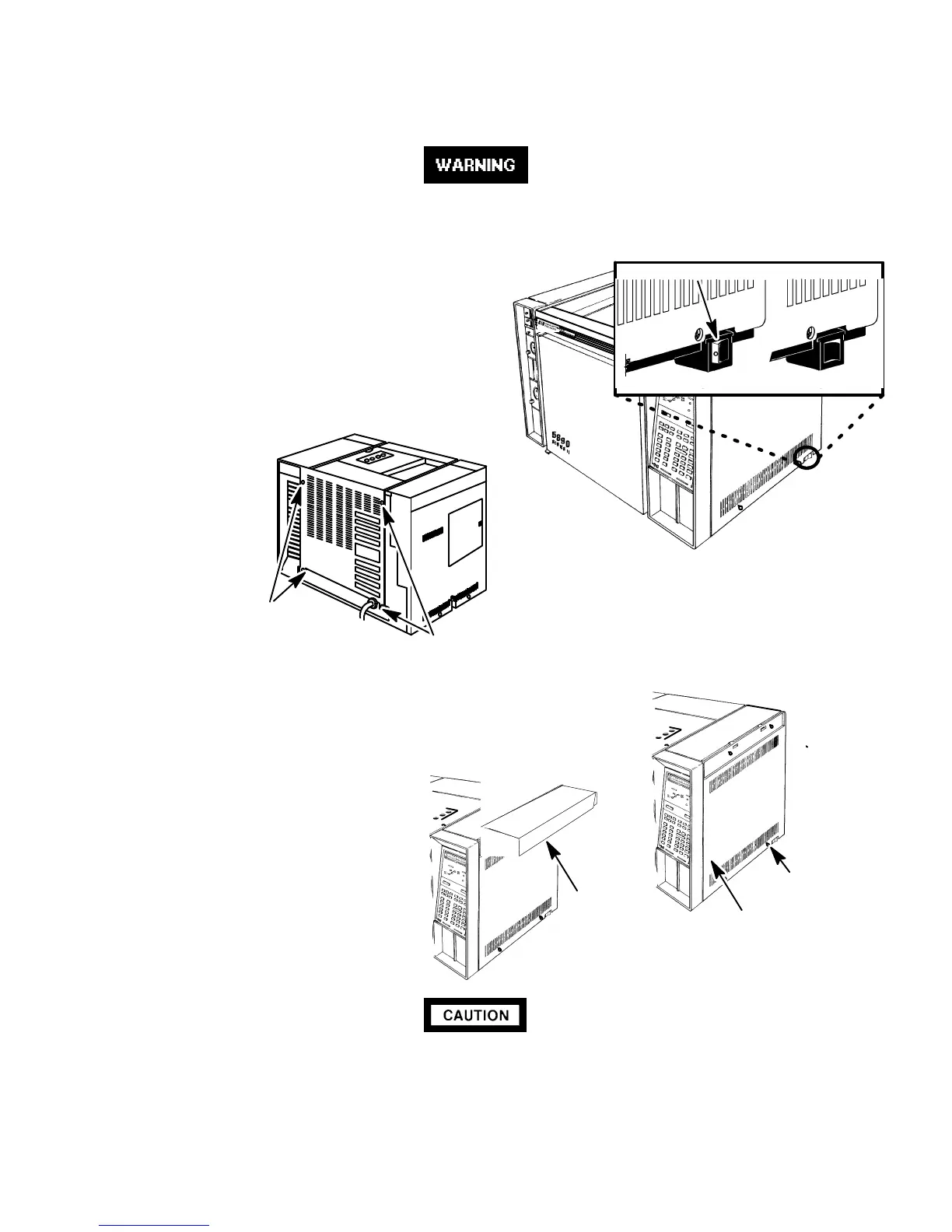

1. Set the main power line switch to the off position.
2. Disconnect the power cable from its receptacle.
3. Turn off all gas supplies.
4. Remove the four screws securing the rear
cover to the instrument.
5. Slide the rear cover towards the rear of the
instrument.
6. Remove the electronics carrier top cover by
grasping it at the rear and lifting until its catch
releases, the pulling it toward the rear of the
instrument .
7. Remove the right side panel by
removing four screws: two each
along its top and bottom edges.
This procedure requires precautions against ESD (Electro-Static Discharge). Use a
groundedwrist strap (part no. 9300-0969 - large, or9300-0970 - small) connected
to a suitable ground. Failure to heed this caution may result in damage to the
instrument.
OFF ON
RED O VISIBLE
SCREWS
SCREWS
ELECTRONICS
CARRIER TOP
COVER
SCREWS
SCREWS
RIGHT SIDE PANEL
