SVC 11-6

When disconnecting aplug, pull on the plug not on its wires. Pulling on the wires may

cause breakage.

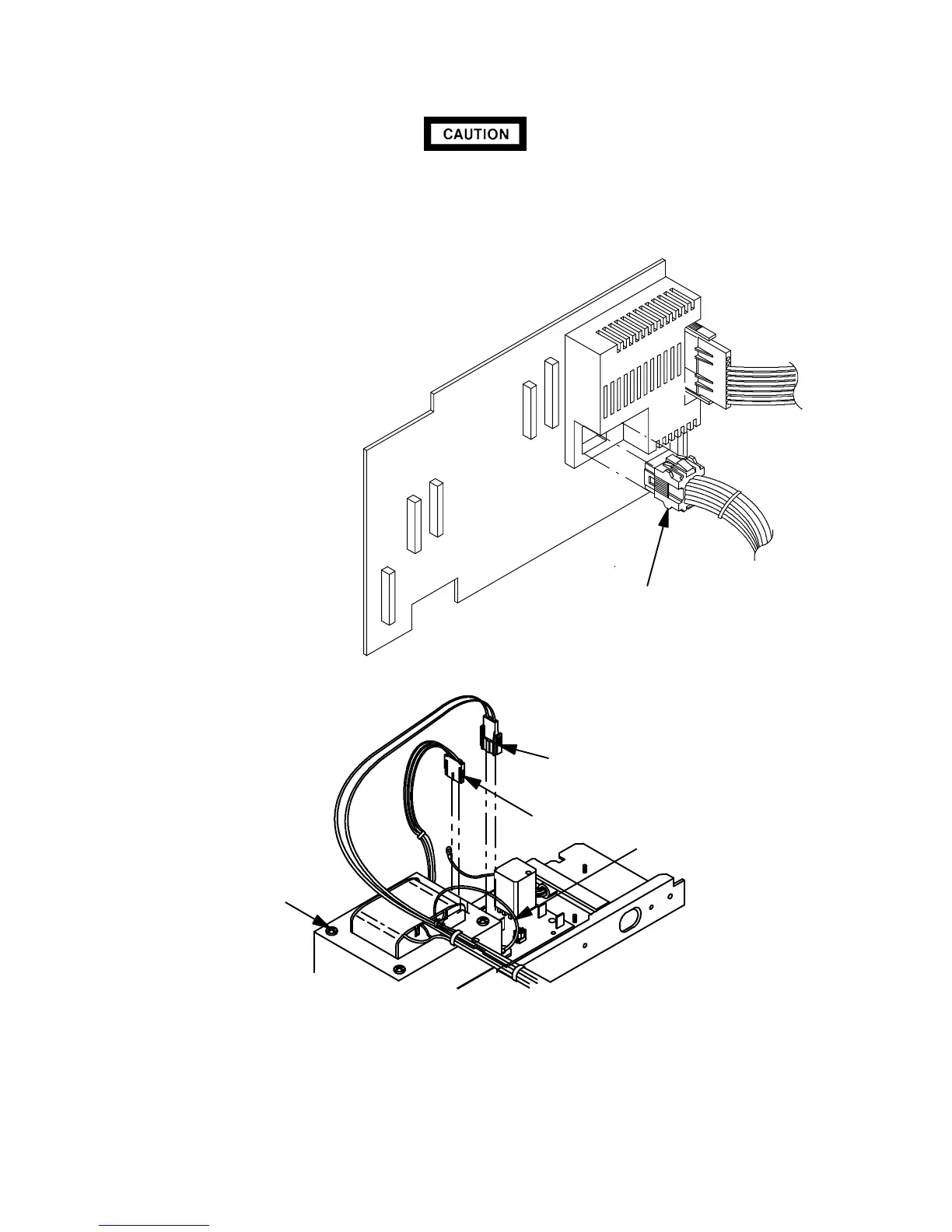

8. Disconnect connector

P10 from its receptacle

on the main PCB by

squeezing its ribbed

sides while pulling the

plug straight out of the

receptacle.

9. Disconnect connectors

J26 and J27 from their

respective receptacles

on the AC power sup-

ply PCB. (Remove

each one by squeezing

its ribbed sides while si-

multaneously pulling it

out of the receptacle.)

10. Remove the screw and

lock washer securing

the ground strap to the

transformer bracket.

SCREW, INSULATOR

BUSHING

CONNECTOR J26

CONNECTOR J27

GROUND STRAP

CONNECTOR P10
