HP 5900 Installation Guide

26
Accessing the switch for the first time
Setting up the configuration environment
The first time you access the switch you must use a console cable to connect a console terminal, for
example, a PC, to the console port on the switch.

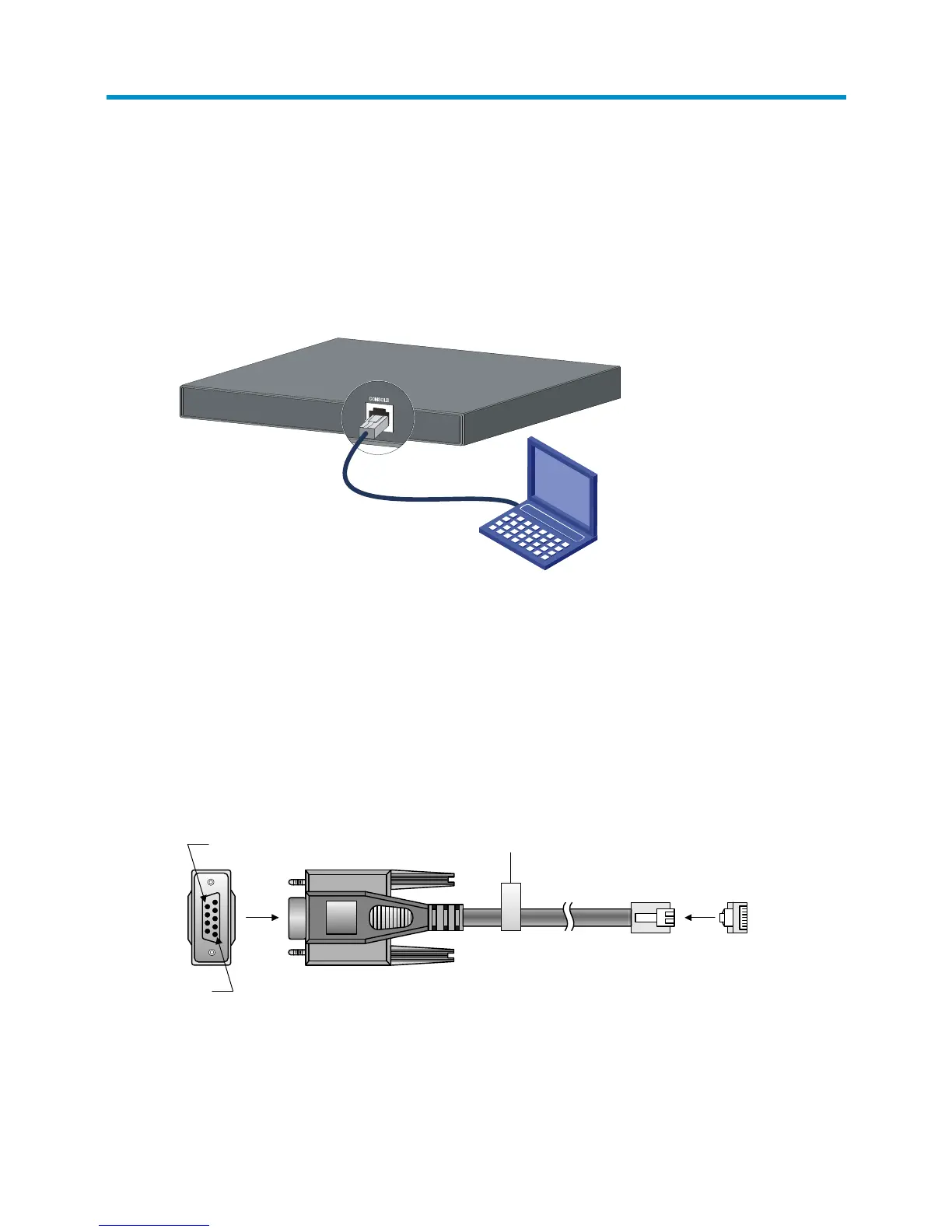

Figure 37 Connecting the console port to a terminal
Connecting the console cable
Console cable
A console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting
to the console port of the switch, and a DB-9 female connector at the other end for connecting to the
serial port on the console terminal.
Figure 38 Console cable
Connection procedure
To connect a terminal (for example, a PC) to the switch:
1. Plug the DB-9 female connector of the console cable to the serial port of the PC.
Main label
1
8
B side
B
Pos.9
Pos.1
A side
A

HP 5900 Specifications

General

Model	HP 5900
Rack Mountable	Yes
MAC Address Table Size	128K
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, RIP, IS-IS, IGMP
Remote Management Protocol	SNMP, CLI
Features	Quality of Service (QoS), Jumbo Frames support, IPv4 support, IPv6 support
Operating Temperature	0 °C to 45 °C
Operating Humidity	10% to 90% non-condensing
Power Supply	Internal power supply - hot-plug / redundant
