Mounting bracket and rack mounting rail kits

Every HP 5920 and 5900 switch comes with a pair of mounting brackets and a pair of chassis rails and

a pair of slide rails. See Figure 14 and Figure 15.

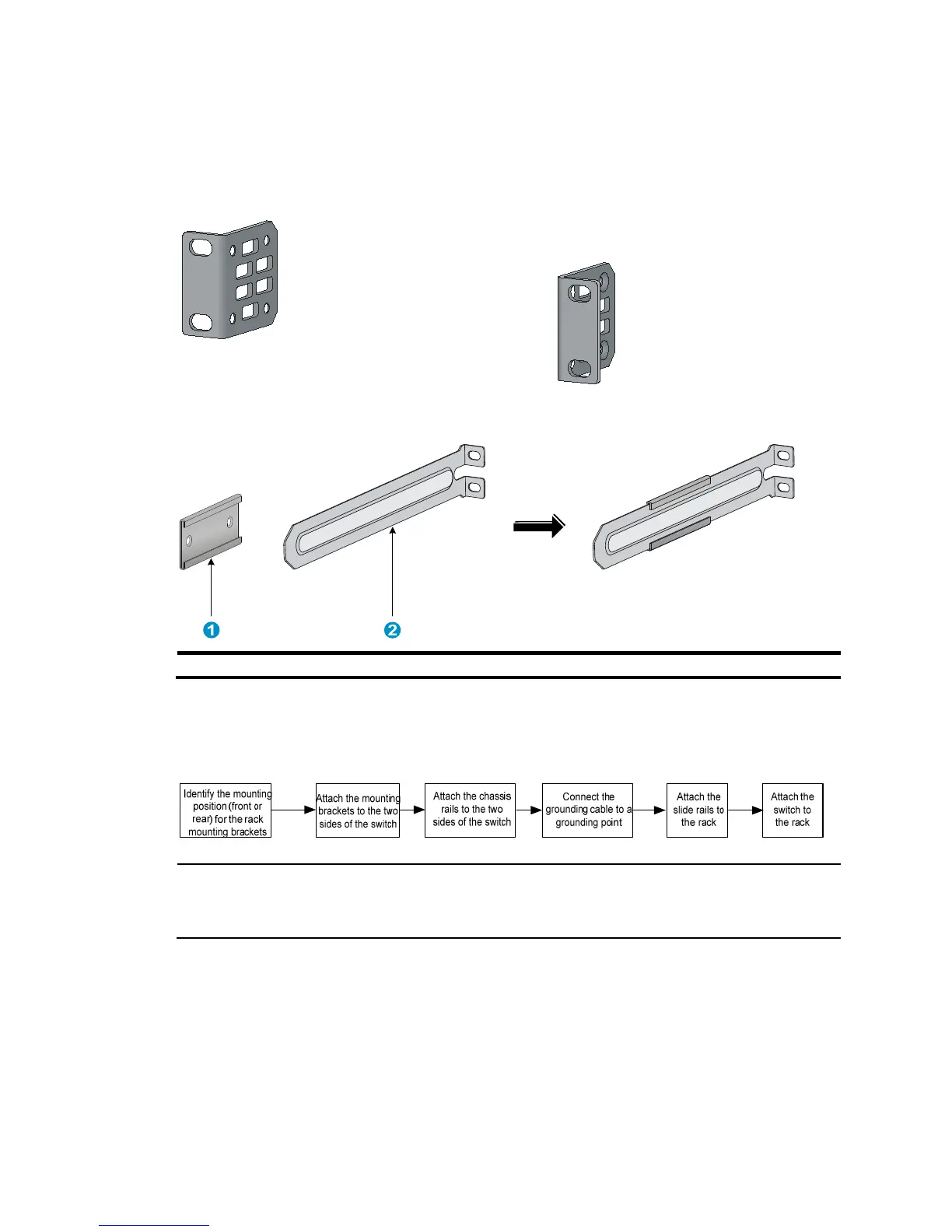

Figure 14 1U mounting

bracket kit

Figure 15 Rack mounting rail kit

(1) Chassis rail (2) Slide rail

Rack-mounting procedures at a glance

Figure 16 Rack-mounting procedure

NOTE:

If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an appropriate

location, and attach the switch to the rack with the mounting brackets.

Attaching the mounting brackets, chassis rails, and grounding

cable to the chassis

Each of the HP 5920 and 5900 switches has one front mounting position (near the network ports) and

one rear mounting position (near the power supplies).
