HP 5900 - Page 32

28

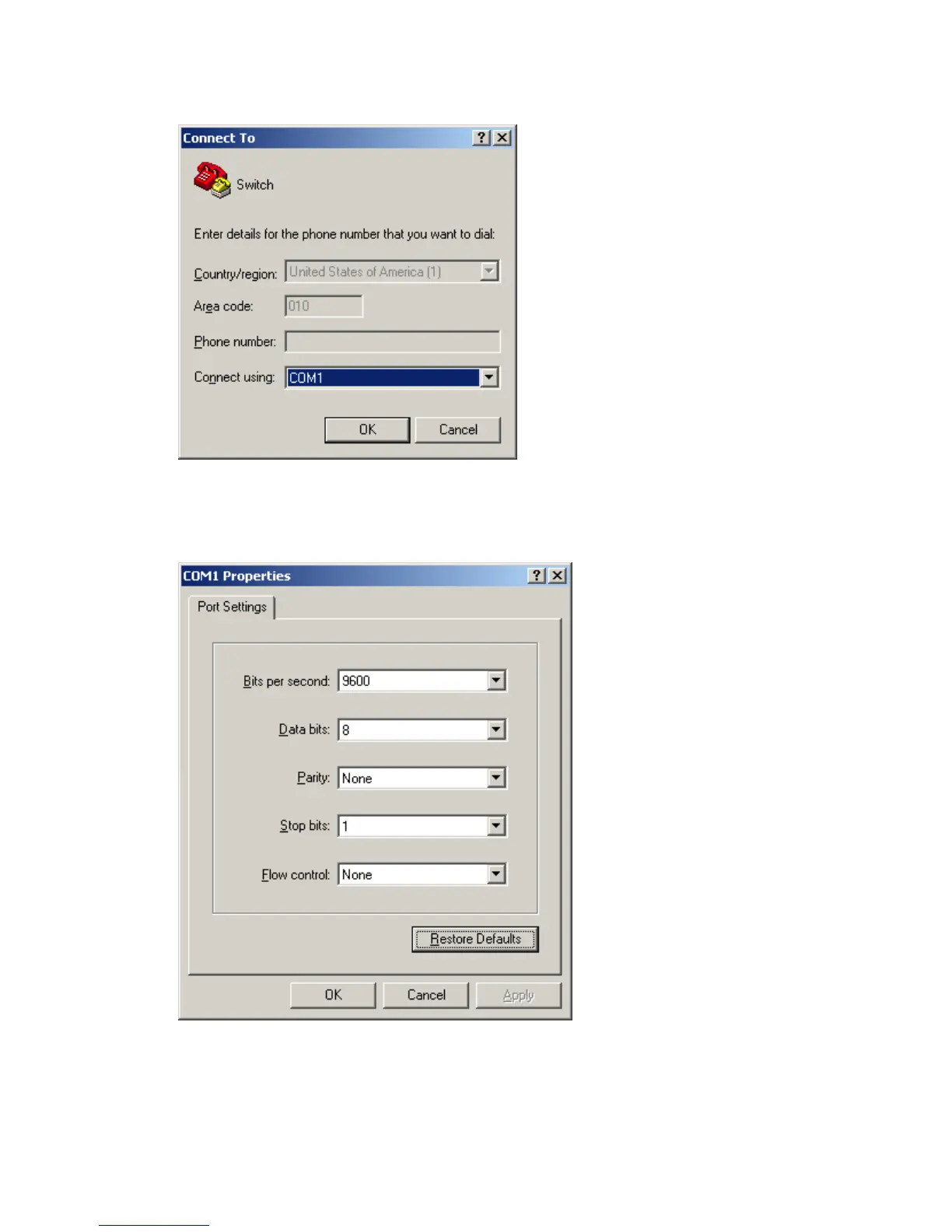

Figure 40 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,
and click OK.
Figure 41 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window.
