55

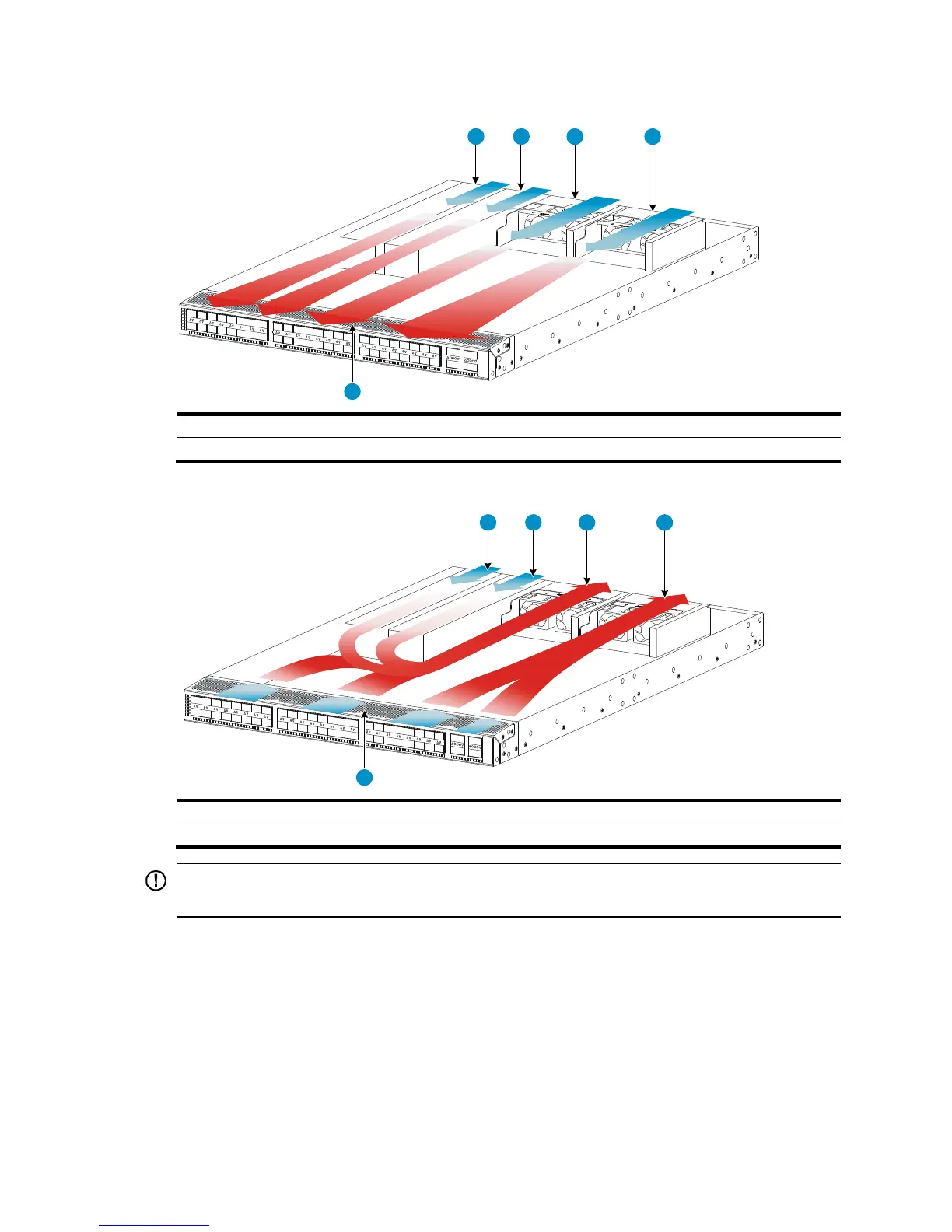

Figure 55 Airflow through the HP 5900AF-48XG-4QSFP+ chassis (with LSWM1FANSC fan trays)
(1) Power supply air vents (2) Fan tray air vents
(3) Network port-side air vents
Figure 56 Airflow through the HP 5900AF-48XG-4QSFP+ chassis (with LSWM1FANSCB fan trays)
(1) Power supply air vents (2) Fan tray air vents
(3) Network port-side air vents
IMPORTANT:
The chassis and the power supplies use separate air aisles. Make sure both aisles are not blocked.
1 1 2 2
3
1 1 2 2
3
