HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8719/20ES)
Table 1-11 Type-N Device Connector Type
Network Analyzer: HP 8719ES/20ES, Standard
Calibration Kit: HP 85054B (Type-N, 50 Ω)
Cables: HP 85132F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
50 to 500 MHz 0.5 to 2 GHz 2 to 8 GHz 8 to 18 GHz
Directivity (dB) 48 48 42 42
Source Match (dB) 45 45 36 32
Load Match (dB) 48 48 42 42
Refl. Tracking
Magnitude (dB) ±(0.005 + .02/°C) ±(0.005 + .03/°C) ±(0.006 + .03/°C) ±(0.015 + .04/°C)
Phase (deg) ±(0.033 + 0.1/°C) ±(0.033 + 0.1/°C) ±(0.040 + .30/°C) ±(0.99 + 0.50/°C)
Trans. Tracking
Magnitude (dB) ±(0.014 + .02/°C) ±(0.015 + .03/°C) ±(0.055 + .03/°C) ±(0.093 + .04/°C)
Phase(deg) ±(0.092 + 0.1/°C) ±(0.099 + 0.1/°C) ±(0.363 + .30/°C) ±(0.614 + .50/°C)

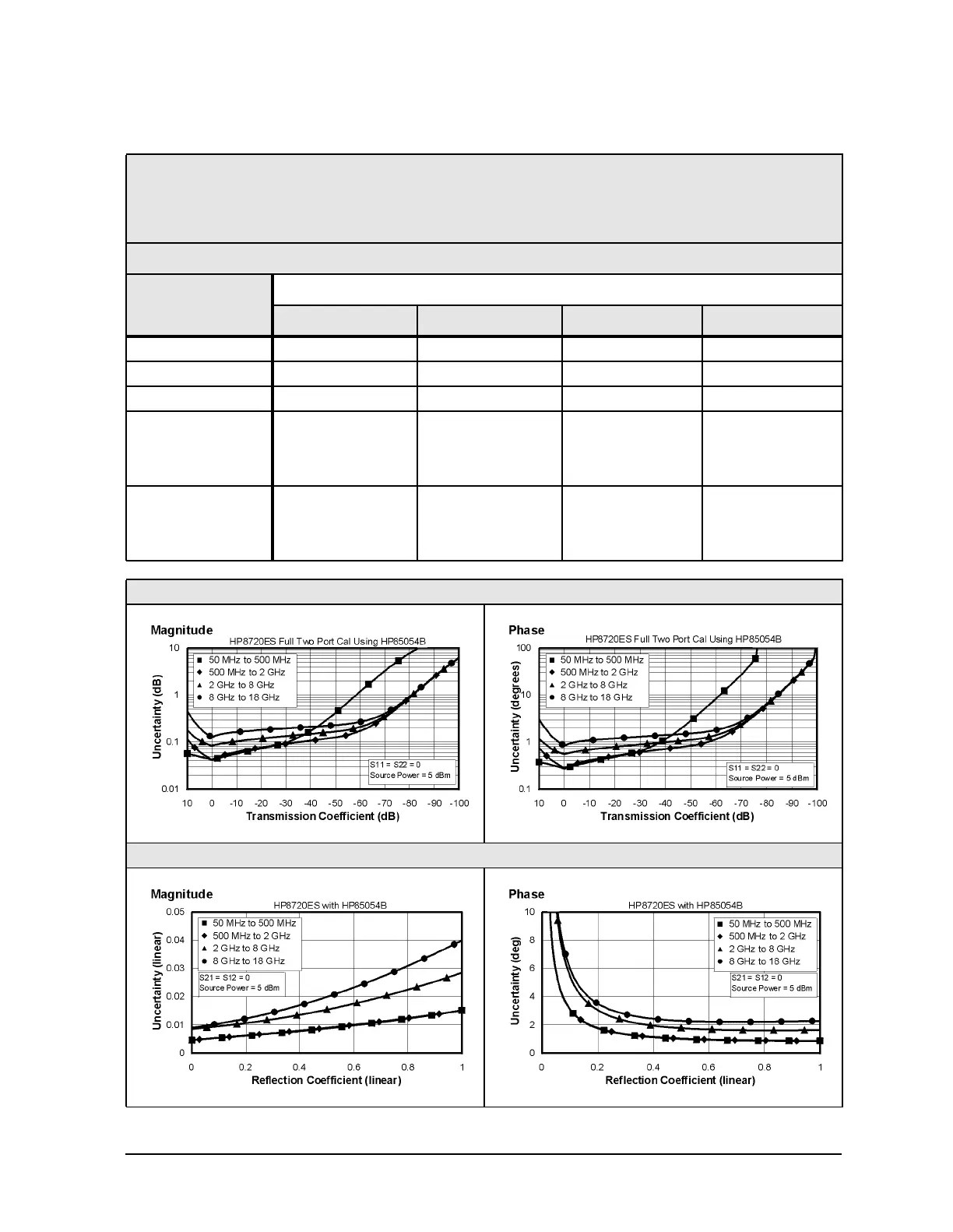

Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
