HP 9845B/C CE Service Manual

General Information 1-15
1. Use only HP-approved discs. Use of any others can result in damage to the drive
mechanism, high
maintenance costs and data loss.
2. Return the disc to its storage envelope
and replace in the box whenever it is removed
from the disc drive.
3. Replace
storage envelopes when they become worn, cracked or distorted.
4. Do
not touch or attempt to clean the surface of the disc. Abrasions may cause the loss
of stored data.
5.
Do not write on the plastic jacket of the disc with a lead pencil or ballpoint pen. Use a
felt-tip
pen and write only on the label.
6. Do not expose the disc to extremes of temperature or humidity.
7. Keep the discs away from magnetic fields and ferromagnetic materials that may be-
come magnetized. Strong magnetic fields can destroy the data recorded on a disc.
Write Protect
The disc has the capability of being write protected. This feature prevents the accidental
erasure of data recorded on the disc. The write protect feature is enabled when the write
protect notch on the cover of the disc is uncovered (see Figure 1-7). When the notch is
covered, writing is allowed
on the disc.
The write
protect notch may be covered by placing a tab over the notch on the top side of
the disc jacket
and then folding the tab over the edge to cover the notch on the bottom side.
The installation of the
tab is shown in Figure 1-7. The notch must be covered with an
opaque material, as it is sensed optically.
WRITE
PROTECT
NOTCH
TAB
1
U
U
U
g
g
0
0
10
10

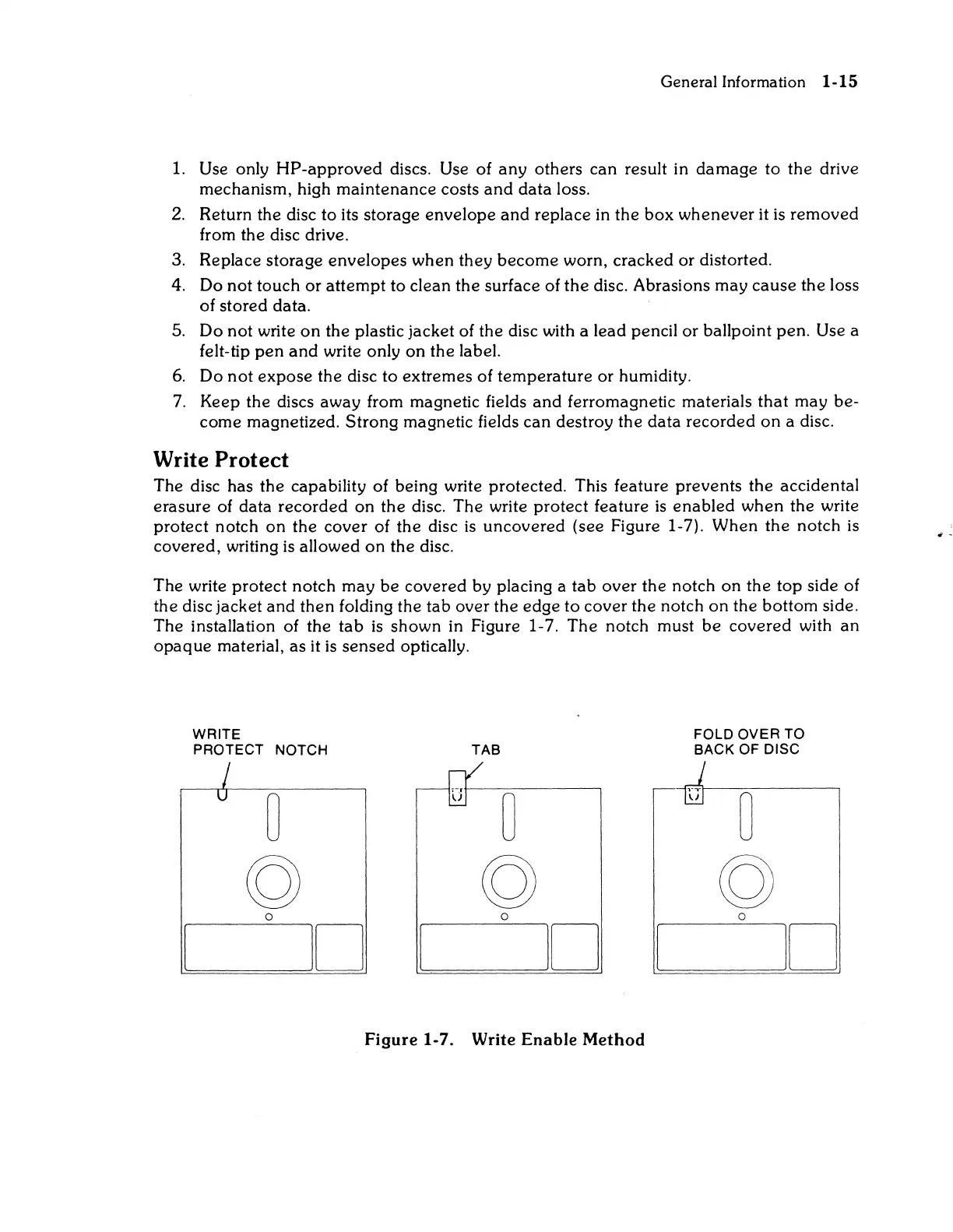

Figure 1-7. Write Enable Method
FOLD OVER TO
BACK OF DISC
j
r--w:r
U
U
g
0
[
10
