Interface Installation and Configuration 21Chapter 2
Caution To prevent damage to the VXI instruments, install the
instruments when the mainframe is turned off.
A. Insert the instrument into the mainframe by aligning the instrument
with the card guides inside the mainframe. Slowly push the
instrument into the slot until it seats in the backplane connectors. The
front panel of the instrument should be even with the front edges of
the mainframe.
B. Tighten the retaining screws on the top and bottom of the module.

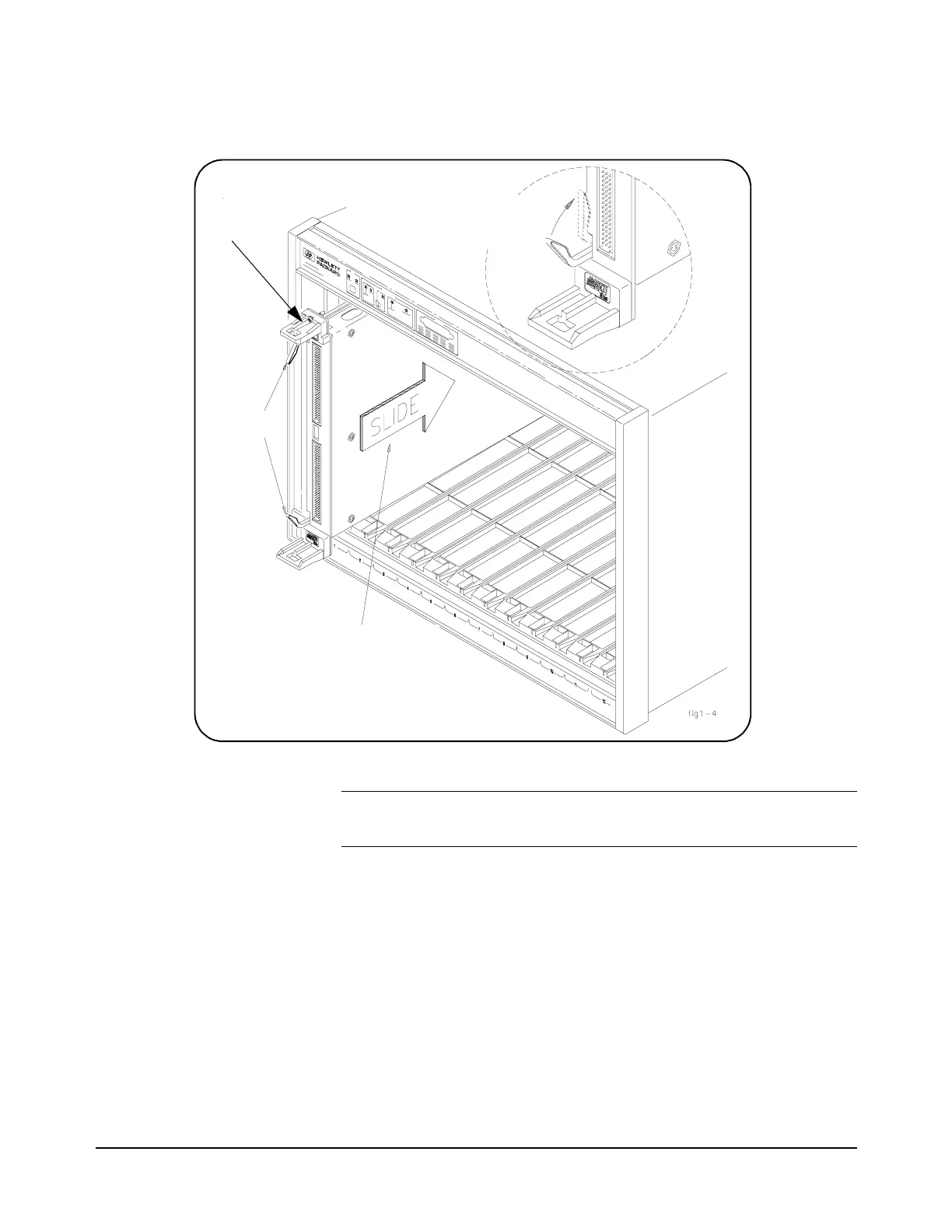

Figure 2-8. Installing C-size Instruments.
pushing in the
extraction levers
slide the module
into the mainframe
until it plugs into the
backplane connectors
extraction
levers
retaining
screws
seat the module by
