1. Plug the internal LAN cable into drawer ID#1
X and route the cable up the right
vertical rail to the HUB. Connect the cable to the HUB
2. Secure the ground cable
Y.
For earlier models, secure the ground cable at
Z.
In Section
3.1, you threaded the other end of the ground cable up through the hole of
the left rear rail post, around the rail and secured on the other side of the rail. (See
Figure 3–3 for additional details.)
3. Install the two power cords into the drawer
[ and plug them into the cabinet’s power
distribution unit (PDU).
If the cabinet has a second PDU installed for power redundancy, then plug each cord
into separate PDUs, to configure power redundancy to this newly installed drawer.
4. Use a tie wrap to secure the power and internal LAN cables to the drawer.
5. Slide the drawer in.
6. Install the third screw to secure the drawer to the rails (
\ below).

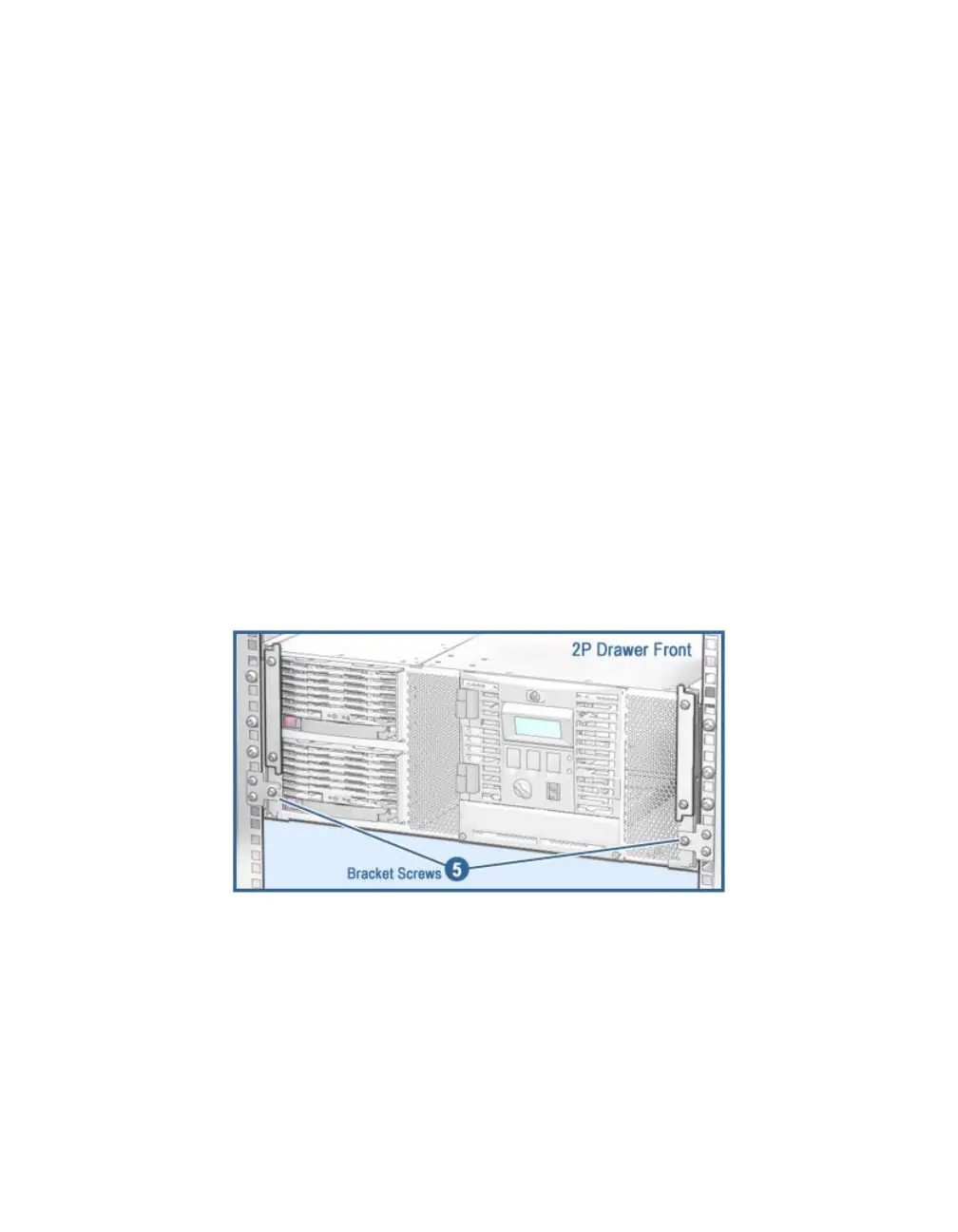

Figure 3–7 Installing Drawer-stop Brackets
Cabling 3-9
