3.9 Set Drawer IDs
Both 2P drawers must have a unique ID. Set the ID numbers for each drawer
on their OCP. Check your PCI drawer’s IDs also, so that you do not create
duplicate IDs.

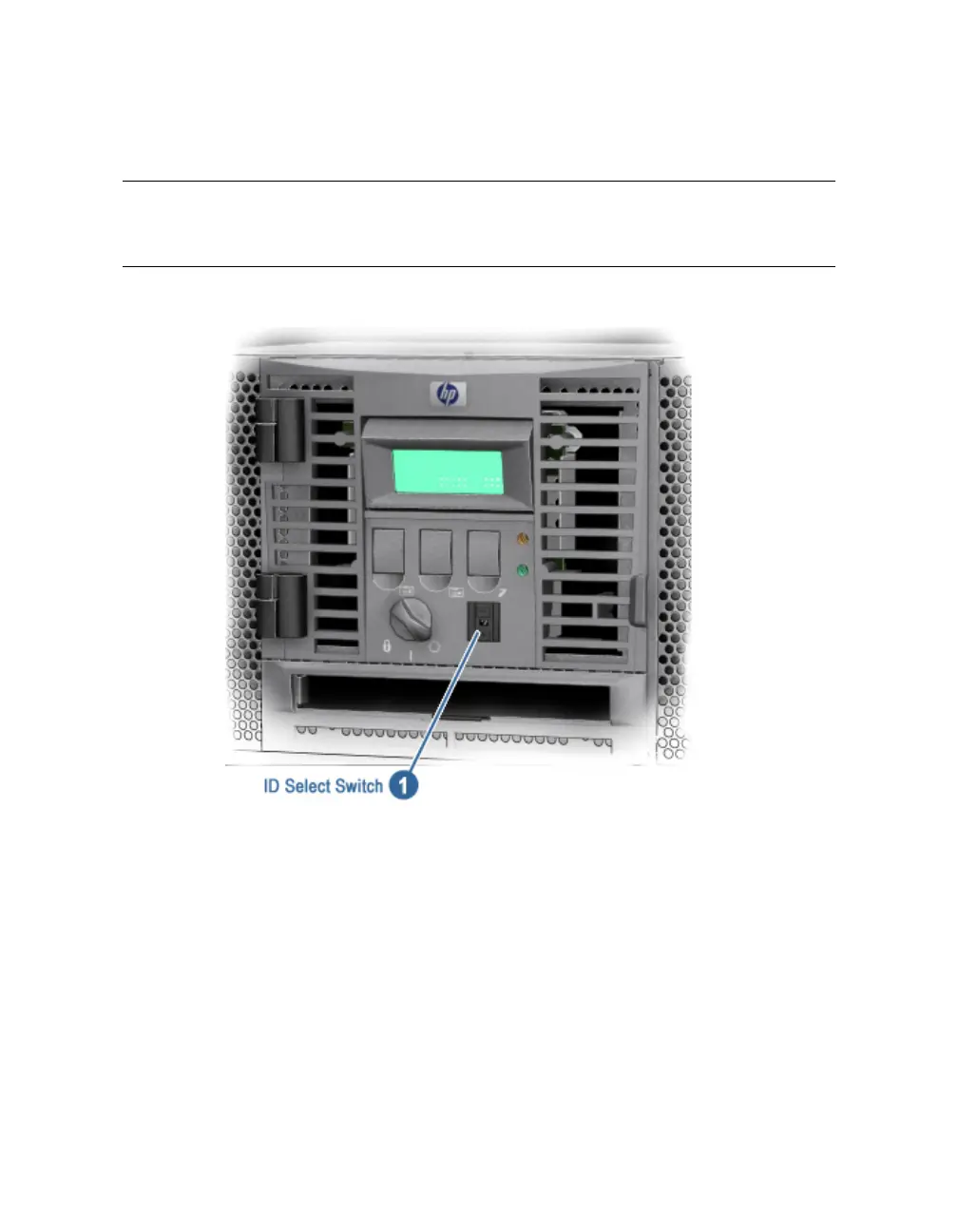

Figure 3–11 Setting Drawer ID
Each component must have its ID set according to its position in the cabinet.
If, for example, you have no PCI in the position associated with ID-6, you do not assign that
ID to the drawer above it. The drawer above retains ID-7 to indicate its physical position in
the cabinet, and the drawer below is ID-5
(See Table 3–2).
3-14 HP AlphaServer ES47 Upgrade
