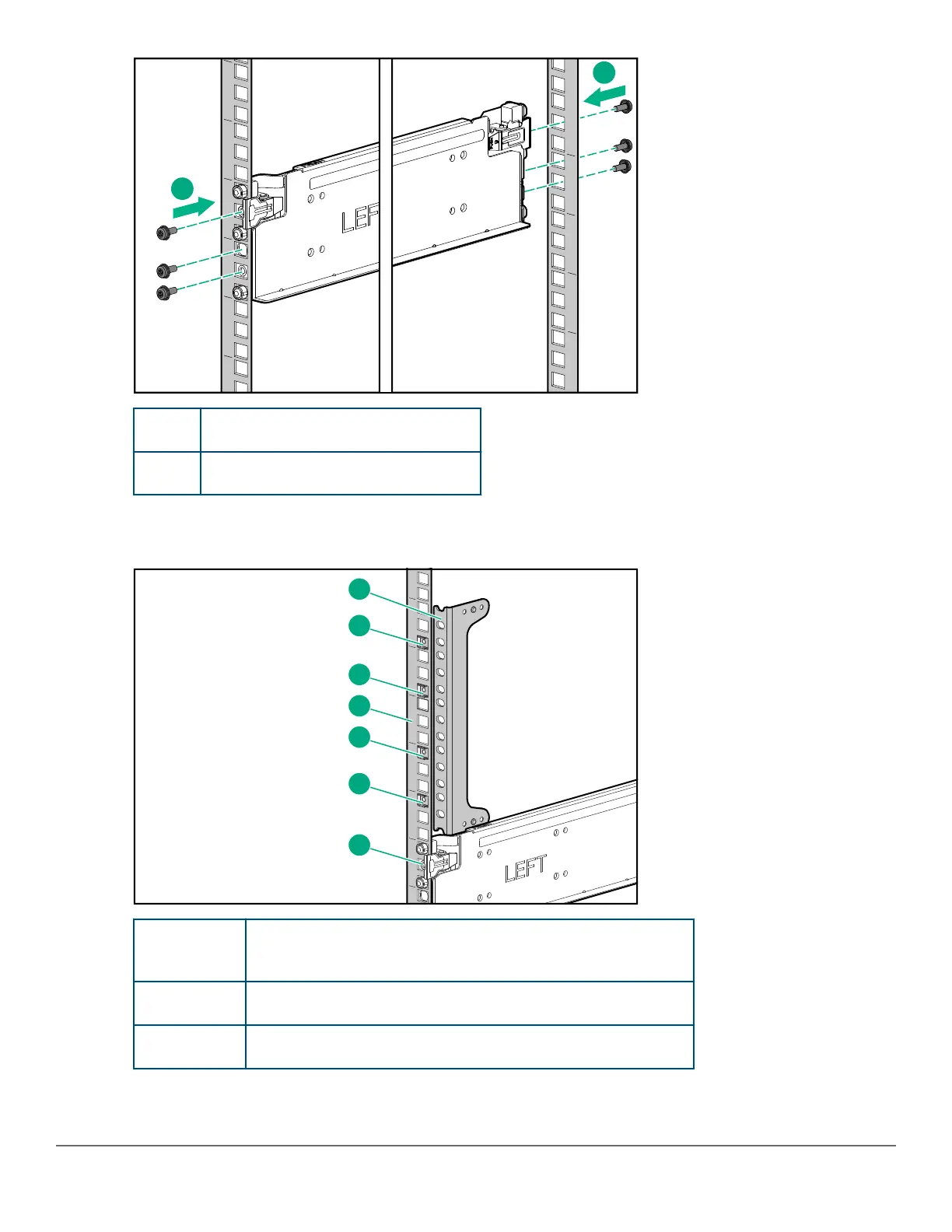

1 Rail secured to front post
2 Rail secured to rear post
3. For mounting the Aruba 6405 Switch, install four cage nuts into the appropriate positions on each of the
front posts. If you are mounting the Aruba 6410 Switch, install eight cage nuts on each front post. (That is,
four cage nuts for each of the two rack ears supporting each side of the switch).
1
2
3
5
4
6
7
1 Unattached rack ear used as a guide for cage nut
placement. (See step 3a, below.)
2 Cage nut at bottom of seventh 1U.
3 Cage nut at bottom of sixth 1U.
Table Continued
