80 Chapter3
Remove/Replace System Components
Removing/Replacing System Components
PCI Area Fan Module Removal
To remove the fan module in the PCI area, follow this procedure:
1. Complete the procedure in the section “Removing the Front Bezel and Top Cover”
found in this chapter.
2. Complete the procedure in the section “Removing the CD Drive” (steps 1 through
3; in this chapter), “Removing the DAT Drive” (steps 1 through 5; in Appendix
F), or “Removing the Flexible Disk Drive” (steps 1 through 5; in Appendix G).
3. Disconnect the two fan-module power cables from the system board by pressing in on
the latch retainer of each connector and pulling outward on the connector. See Figure
3-66.

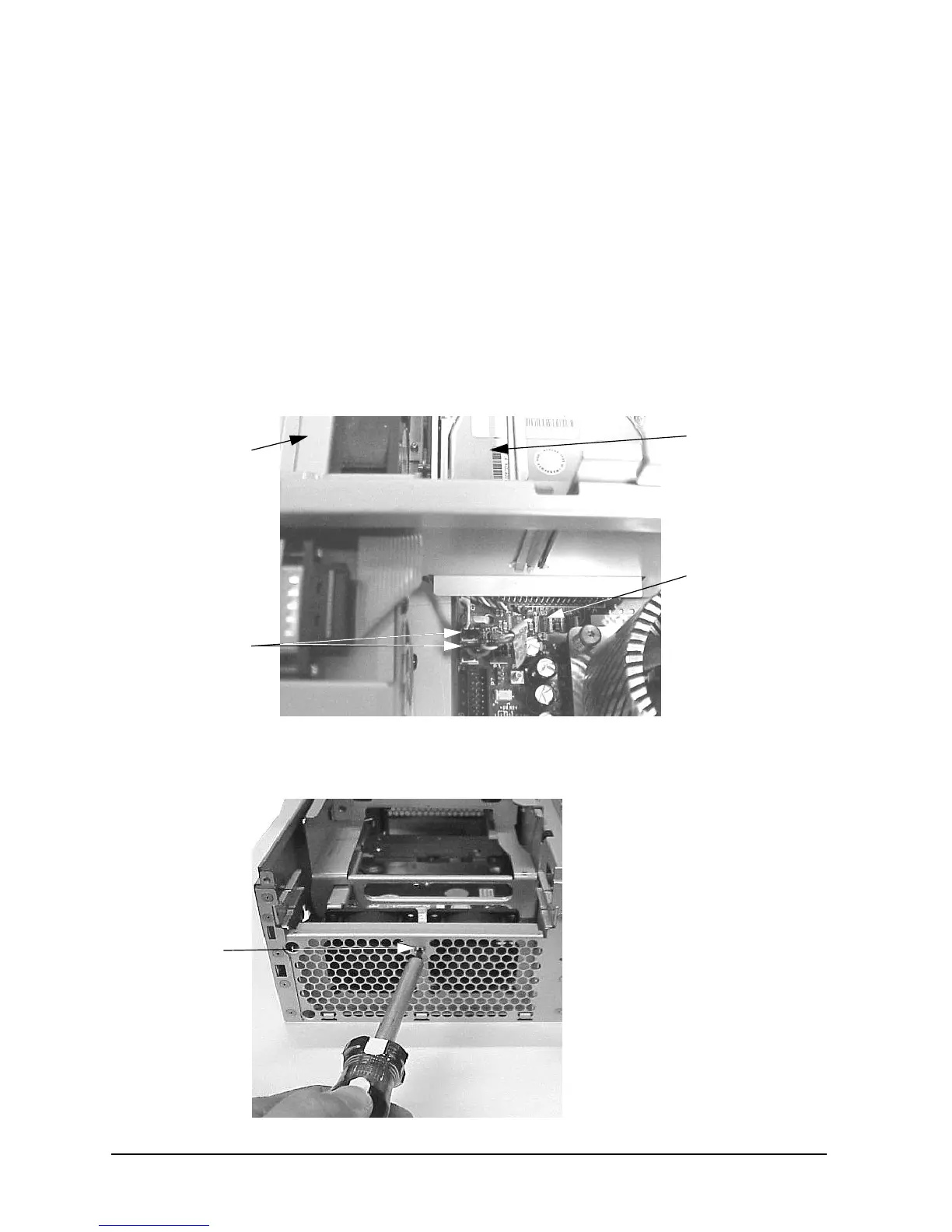

Figure 3-66. Disconnecting the Fan-Module Power Cables
4. Remove the fan-module mounting screw for the PCI area. See Figure 3-67.
Figure 3-67. Remove the Fan-Module Mounting Screw for the PCI Area
Fan-Module
Power Cables
Fan Module
System Board
PCI Cage Area
and Connectors
Fan-Module
Mounting
Screw
To Next Page
