Chapter 3 79
Remove/Replace System Components
Removing/Replacing System Components

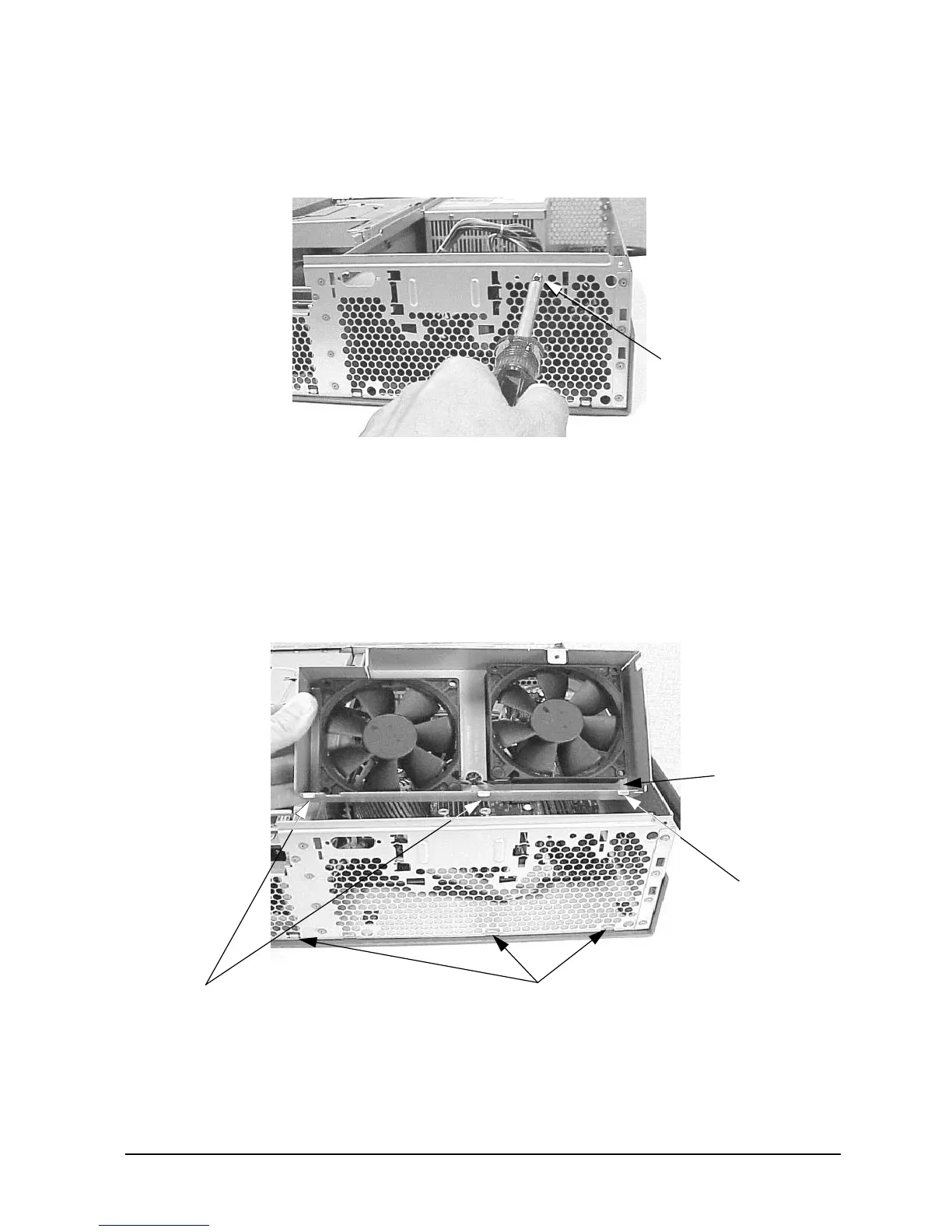

5. Remove the fan-module mounting screw. See Figure 3-64.
Figure 3-64. Removing the Fan-Module Mounting Screw
6. Remove the fan module from the workstation by tilting it back away from the
workstation chassis and lifting it out of the three fan-module slots on the front part of
the workstation’s chassis. See Figure 3-65.
Figure 3-65. Removing the System Area Fan Module
Fan Module
Mounting Screw
Fan Module
Fan-Module Mounting Tabs
Fan-Module Tab Slots
Fan-Module
Mounting Tab
