Chapter 3 85
Remove/Replace System Components
Removing/Replacing System Components
PCI Area Fan Module Replacement
To replace the fan module from the PCI area, follow this procedure:
1. Remove the PCI area fan module if you have not done this. Otherwise, skip this step. To
remove the PCI area fan module, follow the procedure in the section “PCI Area Fan
Module Removal” found in this chapter.
2. Replace the fan module in the workstation by tilting it back away from the workstation
chassis and inserting the three fan-module tabs into their slots. See Figure 3-74.

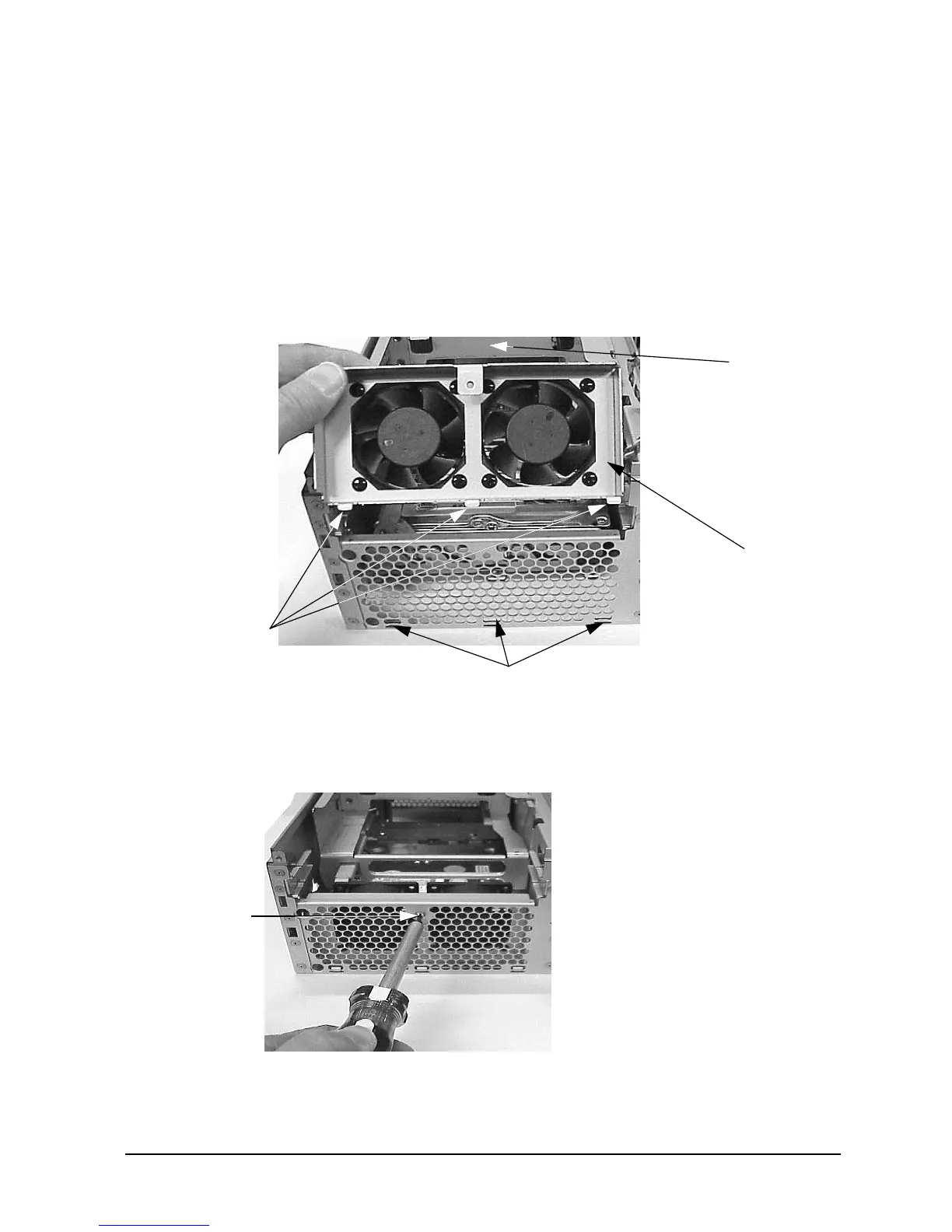

Figure 3-74. Replacing the PCI Area Fan Module
3. Align the fan-module mounting screw hole in the chassis with the threaded fan-module
mounting screw hole and screw in the mounting screw. See Figure 3-75.
Figure 3-75. Screw in the Fan-Module Mounting Screw for the PCI Area
Fan-Module Slots
Fan-Module Tabs
Fan Module
PCI Area
Fan-Module
Mounting
Screw
