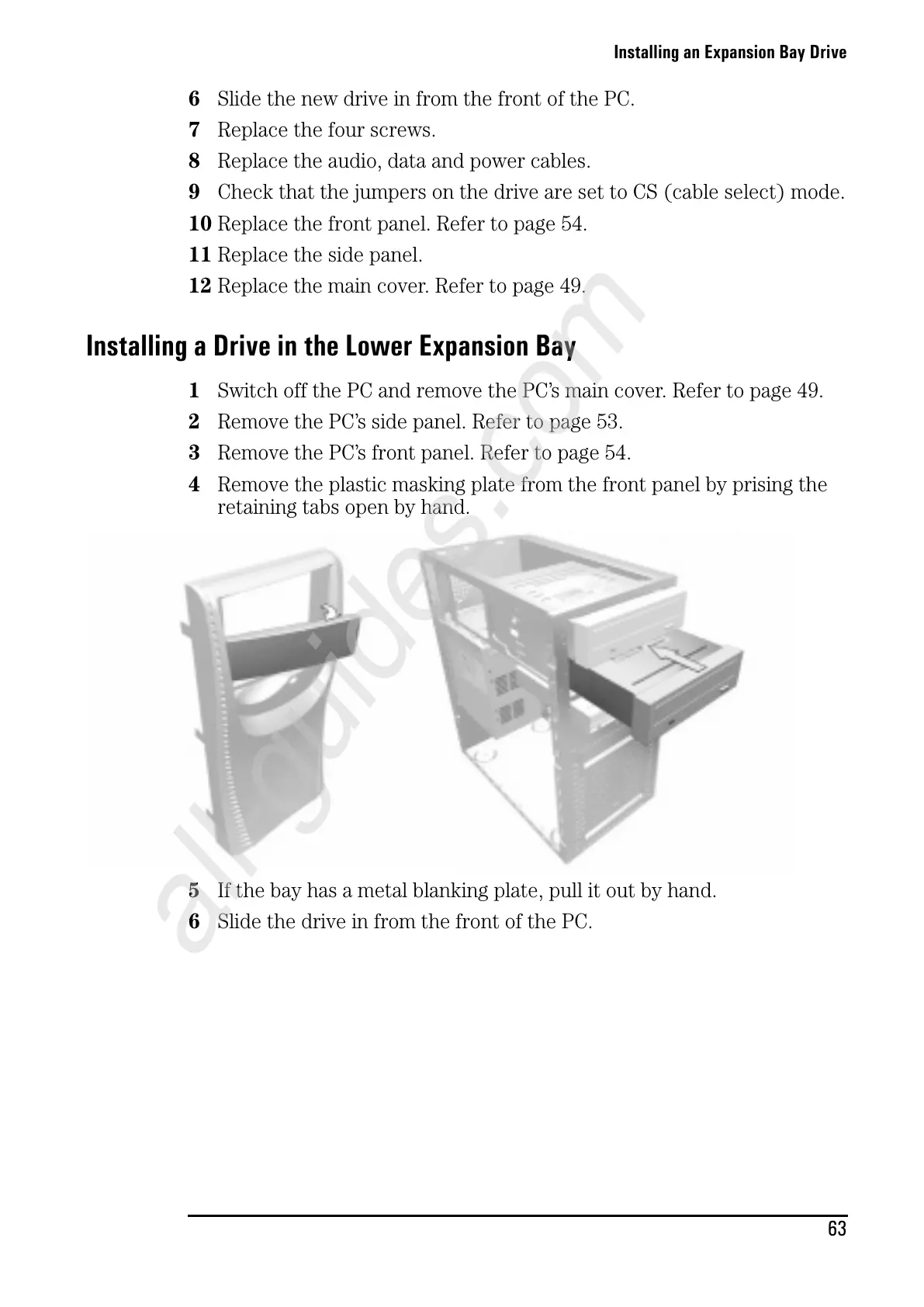

Installing an Expansion Bay Drive
63
6 Slide the new drive in from the front of the PC.
7 Replace the four screws.
8 Replace the audio, data and power cables.
9 Check that the jumpers on the drive are set to CS (cable select) mode.
10 Replace the front panel. Refer to page 54.
11 Replace the side panel.
12 Replace the main cover. Refer to page 49.
Installing a Drive in the Lower Expansion Bay
1 Switch off the PC and remove the PC’s main cover. Refer to page 49.
2 Remove the PC’s side panel. Refer to page 53.
3 Remove the PC’s front panel. Refer to page 54.
4 Remove the plastic masking plate from the front panel by prising the
retaining tabs open by hand.
5 If the bay has a metal blanking plate, pull it out by hand.
6 Slide the drive in from the front of the PC.
