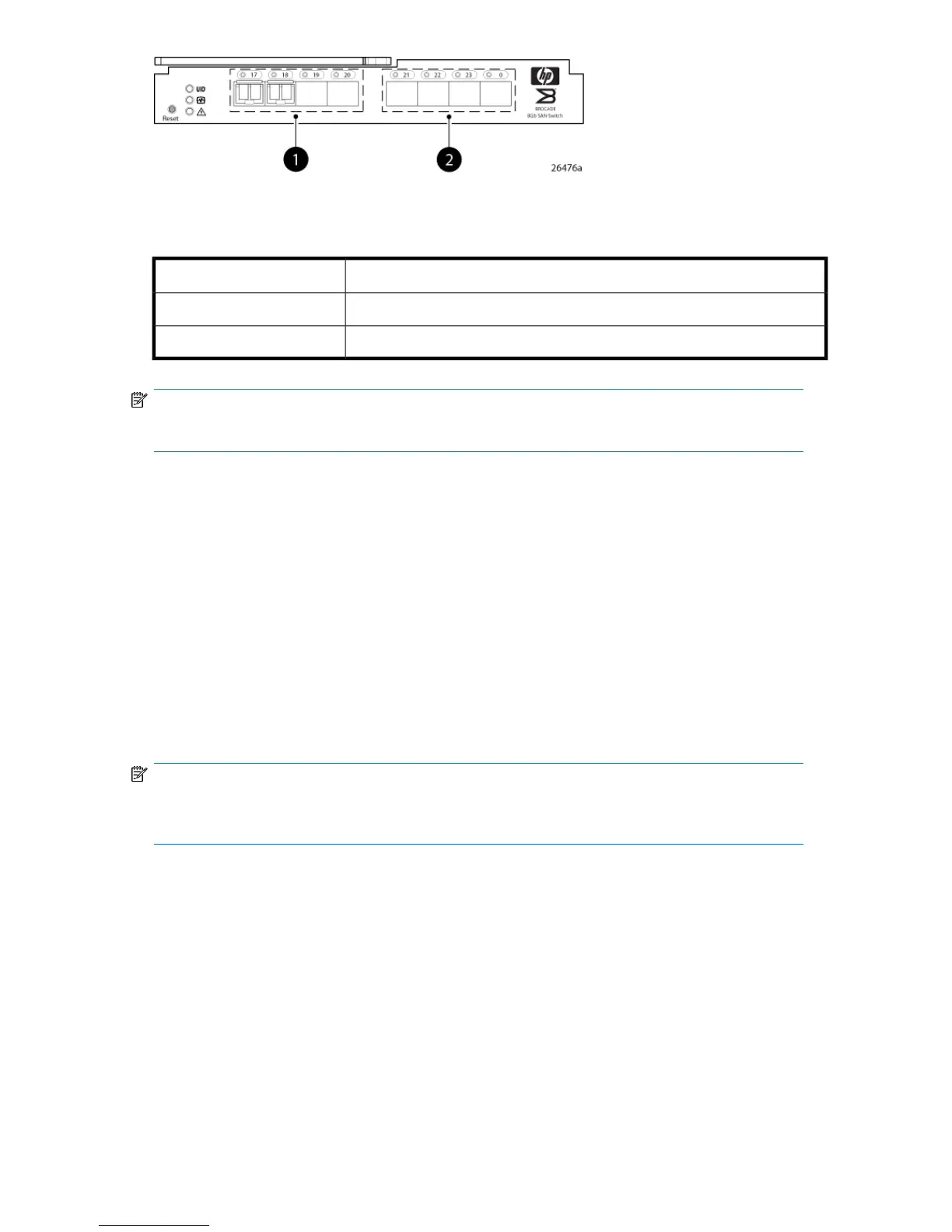

Figure 2 8Gb SAN Switch external ports
.
Table 3 Identifying 8Gb SAN Switch external ports
DescriptionItem number
Left bank—ports 17, 18, 19, 201
Right bank—ports 21, 22, 23, 02
NOTE:
Refer to Interpreting LED activity, page 36 for complete information on 8Gb SAN Switch LEDs.
Internal ports summary
Sixteen logical internal ports (numbered 1 through 16) connect sequentially to server bays 1 through
16 with the enclosure midplane. Server bay 1 is connected to Switch Port 1, Server bay 2 is connected
to Switch port 2, and so forth.
8Gb SAN Switch redundancy
The HP BladeSystem c-Class was engineered as a no-single-point-of-failure bladed solution. Attributes
that contribute to switch redundancy include:
• Redundant power and cooling
• Redundant HP Onboard Administrator (OA) to ensure management access to the switch
NOTE:
The HP Onboard Administrator is the enclosure management module used to support and manage
the HP BladeSystem c-Class and all managed devices used in the enclosure.
8Gb SAN Switch licensing
The 8Gb SAN Switch integrates one of three license options that complement existing HP product
lines. Some 8Gb SAN Switch models ship with licenses that place limits on the number of domains
that can be used. Models and their specific licenses are as follows:
• Brocade 8/12 SAN Switch for HP BladeSystem c-Class, base, integrating 12 active ports (in any
combination of internal/external ports) and two short-wavelength SFPs. Software components include
a Full Fabric license, the Advanced Web Tools GUI and Zoning software
Brocade 8Gb SAN Switch for HP BladeSystem c-Class 15
