4. Align the Brocade 8Gb SAN Switch with the appropriate interconnect bay according to your
enclosure’s specific configuration. Push the switch firmly into the interconnect bay. See Figure 5.

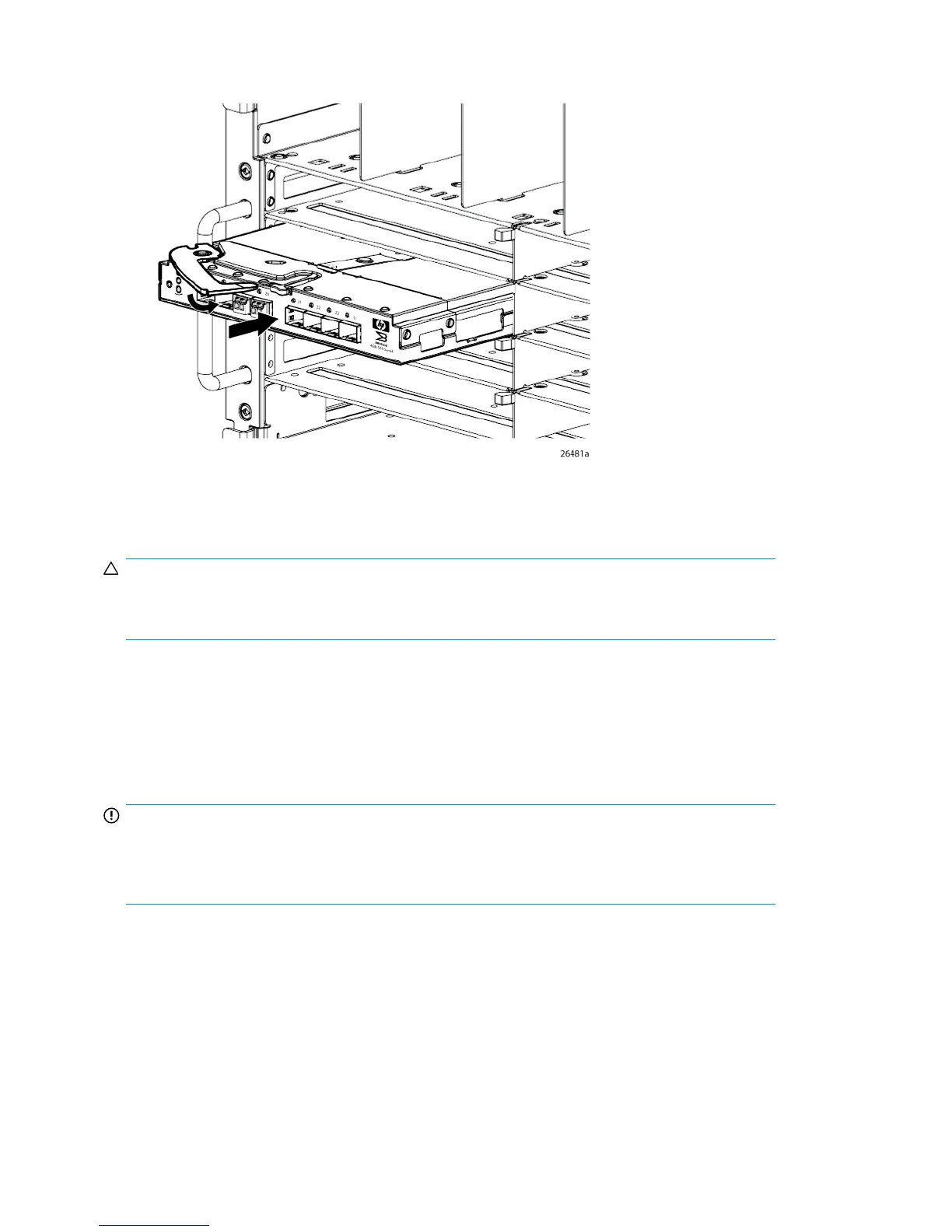

Figure 5 Installing the Brocade 8Gb SAN Switch into an interconnect bay
.
5. Press the installation handle into the latch to lock the Brocade 8Gb SAN Switch in place.
CAUTION:
All panels and doors should be in place and securely fastened while the unit is in operation, for proper
cooling and for EMI emissions control.
OA power verification
As defined earlier, the HP BladeSystem Onboard Administrator (OA) is the enclosure management
processor that manages the devices contained within the enclosure. The OA provides a single point
from which to perform basic management tasks on switches or server blades installed in the enclosure.
IMPORTANT:
HP recommends reading the appropriate
HP BladeSystem Enclosure User Guide
and the
HP
BladeSystem Onboard Administrator User Guide
. Reading these guides in sequence will promote an
overall understanding of your specific enclosure model.
Once the switch is installed in the interconnect bay, the OA verifies that the switch type matches the
mezzanine cards present on the servers. If there is no mismatch, the OA powers up the switch.
If the switch does not power up, check the enclosure and switch status with the OA web interface.
Refer to the HP BladeSystem Onboard Administrator User Guide.
Setup22
