1. Locate the appropriate interconnect bay in the rear of the enclosure as specified in the appropriate
HP BladeSystem Enclosure Setup and Installation Guide provided with your enclosure.
IMPORTANT:
Populate all enclosure I/O bays with the appropriate component (for example a switch,
Pass-Thru, or one of the blank panels provided with the enclosure).
2. Remove the slot cover (if installed).
CAUTION:
Properly ground yourself before handling the switch.
3. Press the handle latch to release the installation handle. See Figure 4.

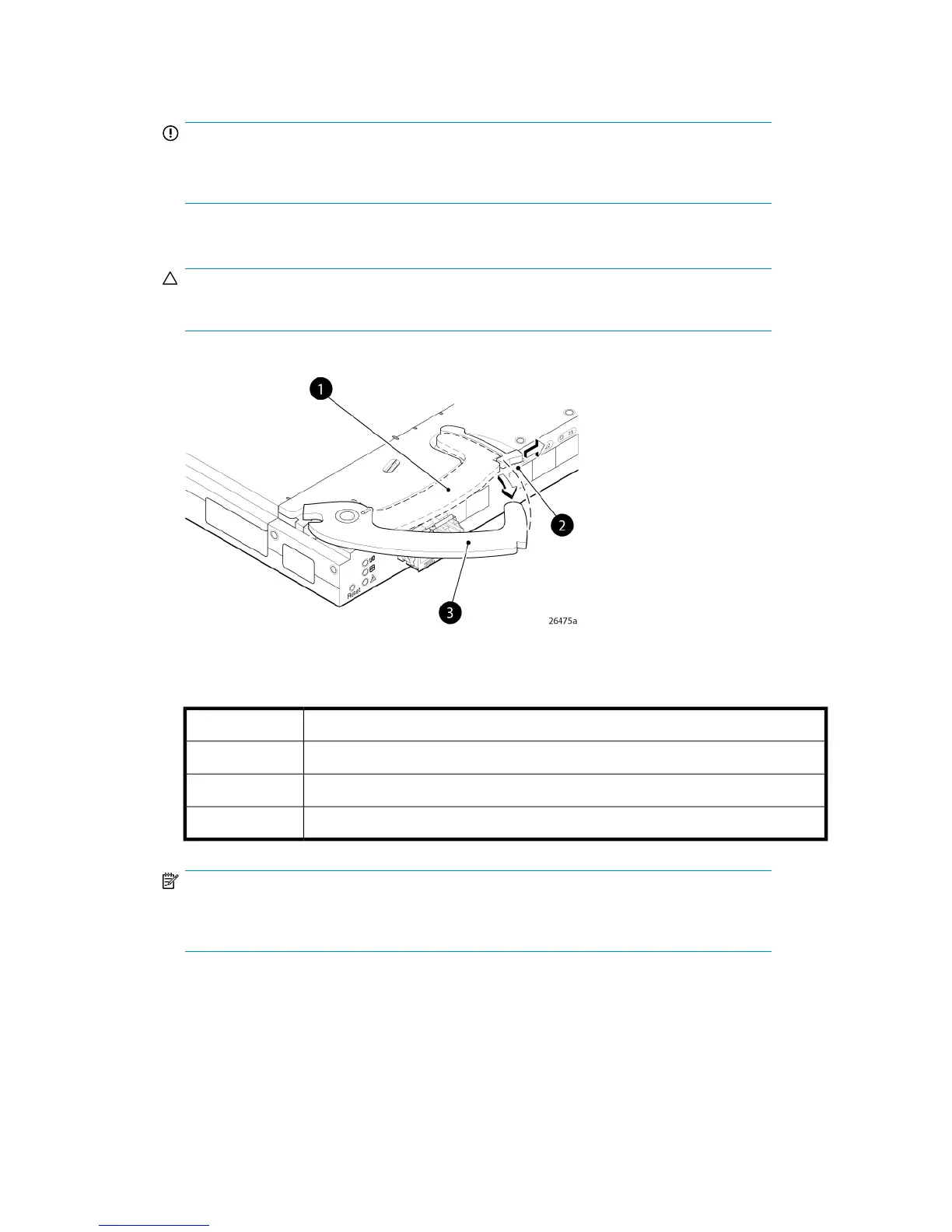

Figure 4 Releasing the installation handle
.
Table 9 Release mechanism components
DescriptionItem
Installation handle in latched position1
Handle latch2
Installation handle (released)3
NOTE:
The Brocade 8Gb SAN Switch is a hot-pluggable device. The enclosure power may be on
or off during installation.
Brocade 8Gb SAN Switch for HP BladeSystem c-Class 21
