SCSI Connections
Connecting to the SCSI Ports
Connecting to the SCSI Ports
This section describes how to connect to the system SCSI ports (narrow sin-
gle-ended and fast, wide differential or ultra, wide single-ended).
System SCSI Port Connection
The system contains two (2) SCSI connectors:
• System Narrow, Single-Ended SCSI Connector
• System Fast, Wide Differential SCSI Connector (C160/C180/C200 upgrade)
or
Ultra, Wide Single-Ended SCSI Connector (C200/C240/C360)
Figure 57 shows the two SCSI connectors. SCSI cables connect to these
ports with a high-density thumb screw connector.

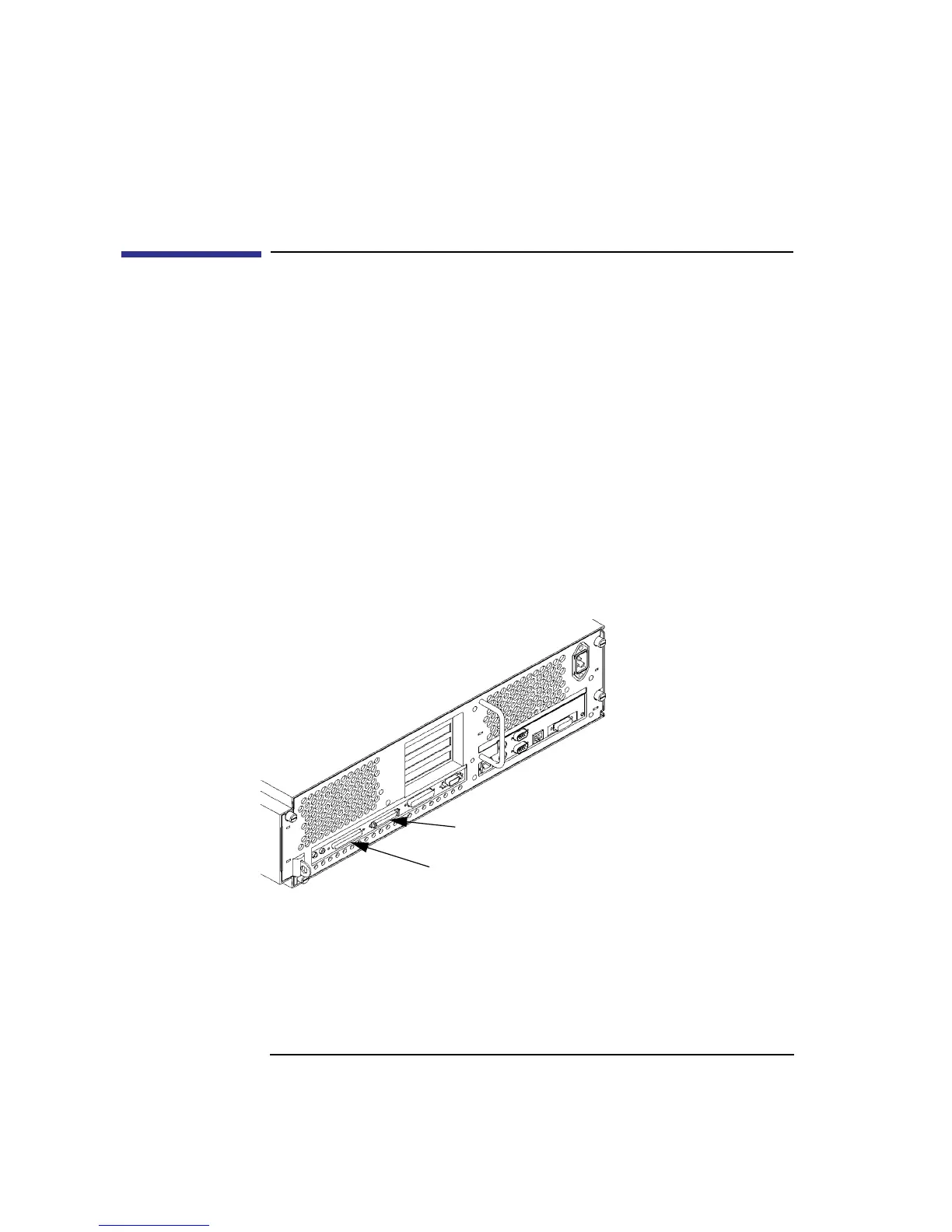

Figure 57 Rear Panel SCSI Connectors without Terminators
Fast, Wide Differential SCSI
Narrow Single-ended SCSI
Ultra, Wide-SE (C200/C240/C360)
