2.

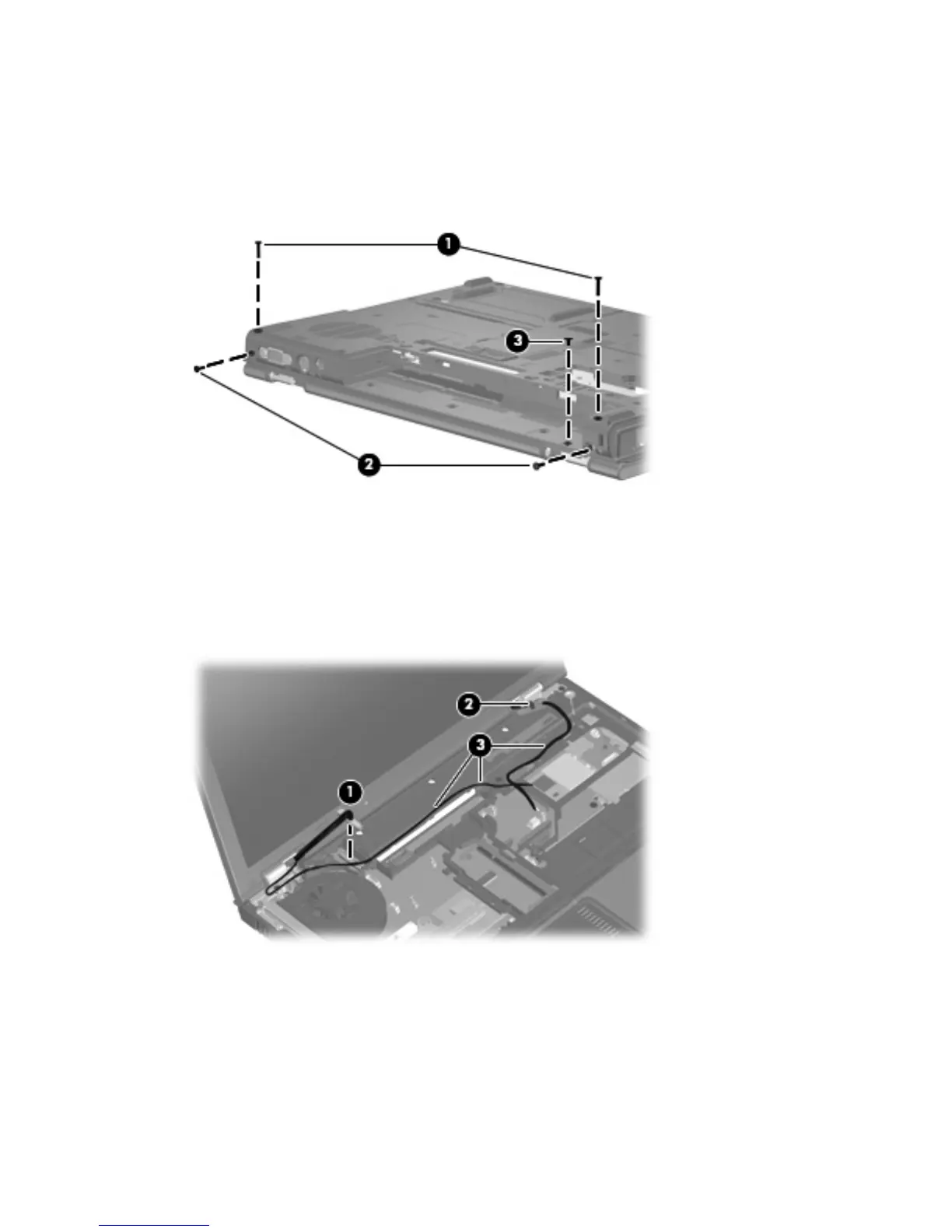

Remove the following screws:
(1) Two Torx T8M2.5×11.0 screws
(2) Two Torx T8M2.5×7.0 screws
(3) One Phillips PM2.5×5.0 screw
3.
Turn the computer right-side up, with the front toward you.
4.
Open the computer as far as possible.
5. Disconnect the display panel cable (1) from the system board.
6. Remove the wireless antenna cables from the routing channels (2) and clips (3) built into the top
cover.
7. Remove the two Torx T8M2.5×7.0 screws (1) that secure the display assembly to the computer.
72 Chapter 4 Removal and replacement procedures
