HP Compaq 6910p - Page 94

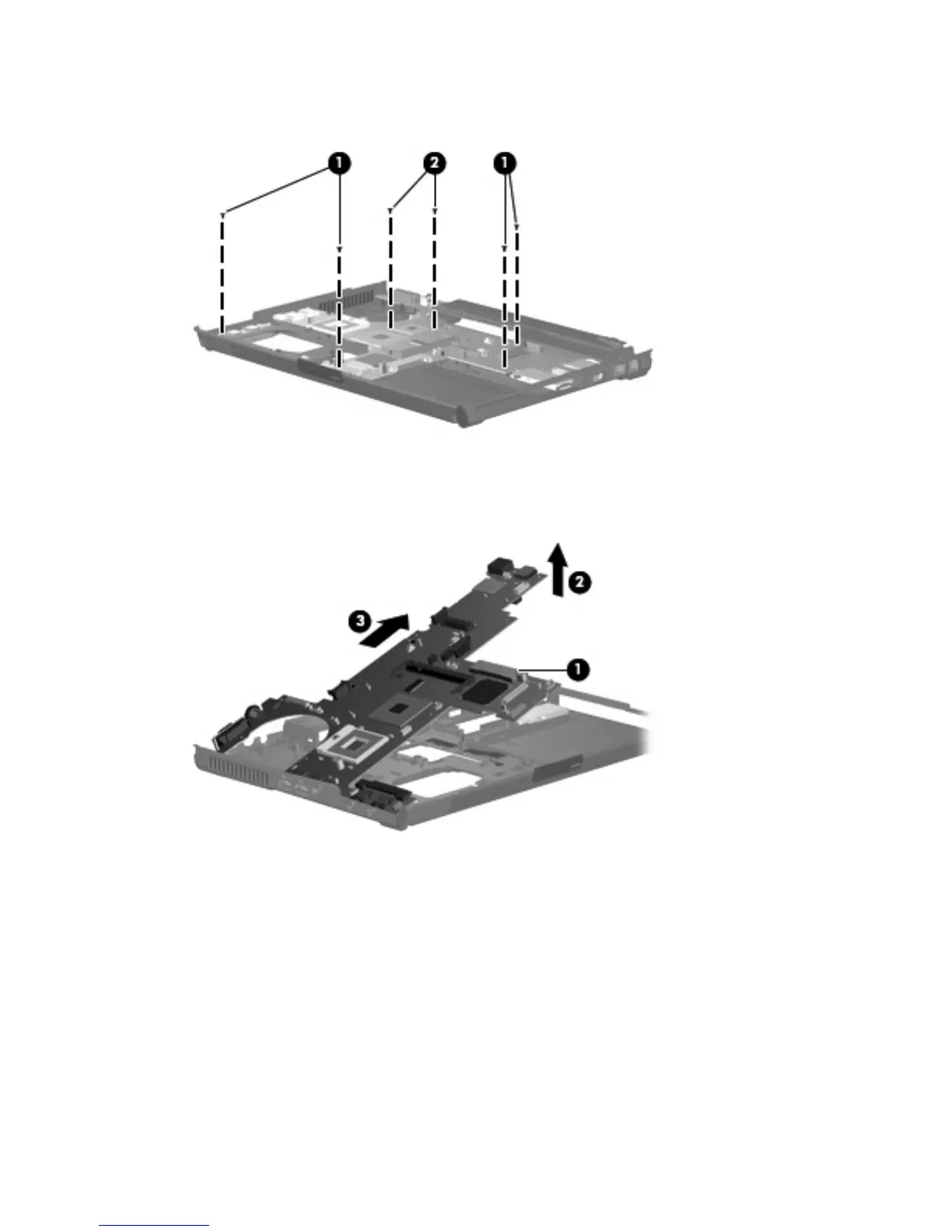

8. Remove the four Phillips PM2.5×4.0 screws (1) and the two Phillips PM2.0×3.0 screws (2) that
secure the system board to the base enclosure.
9. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an
angle.
10. Remove the system board (3) by sliding it away from the base enclosure at an angle.
86 Chapter 4 Removal and replacement procedures
