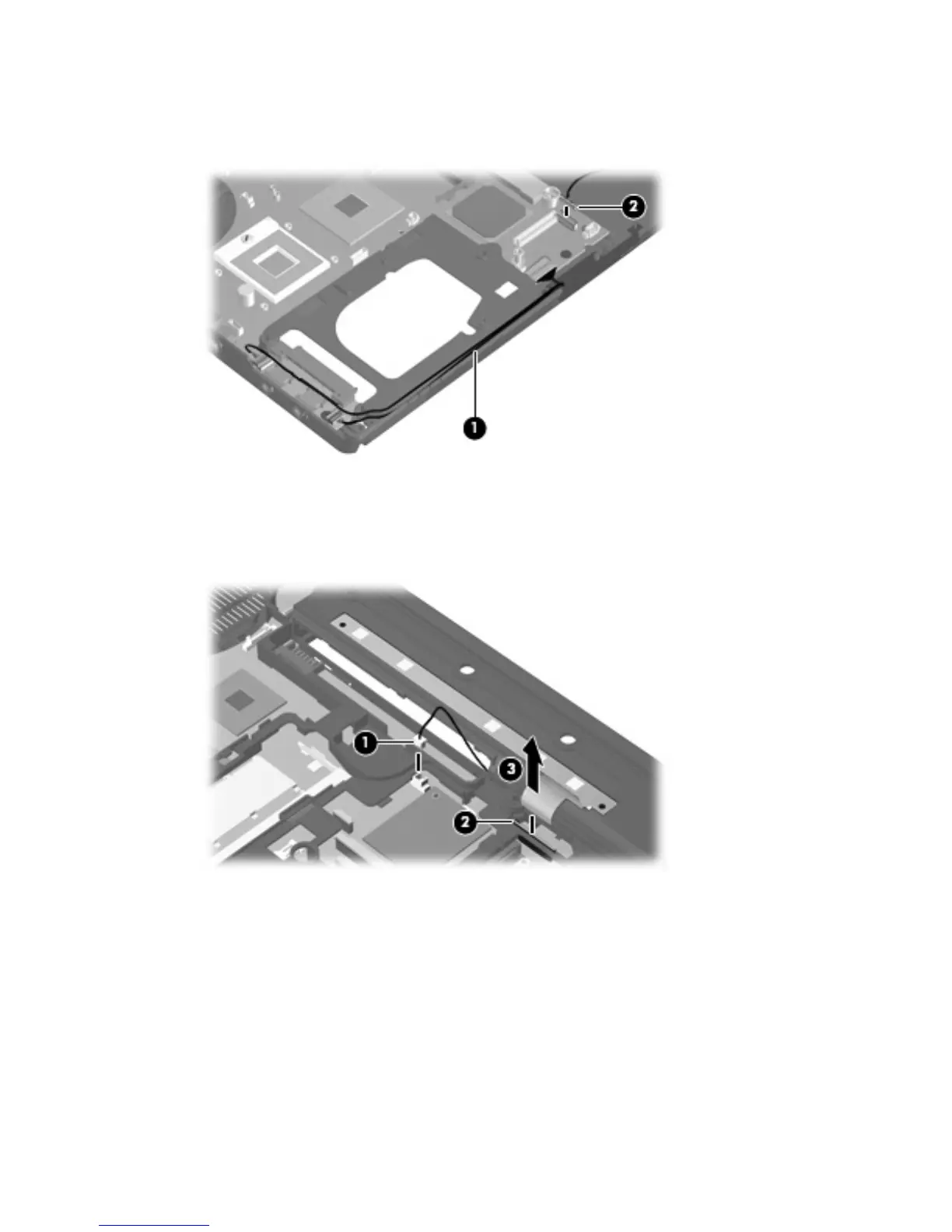

5. Disconnect the Bluetooth module cable (2) from the system board and remove the cable from the
base enclosure. The Bluetooth module cable is available in the Cable Kit, spare part number
446406-001.
6. Disconnect the modem module cable (1) from the system board. The modem module cable is
available in the Cable Kit, spare part number 446406-001.
7. Release the ZIF connector (2) to which the LED board cable is attached, and disconnect the LED
board cable (3) from the system board.
Component replacement procedures 85
