Service Reference Guide, dc5750 437963-001 6–21
Removal and Replacement Procedures— Microtower (MT) Chassis
4. Remove the front bezel (Section 6.4).

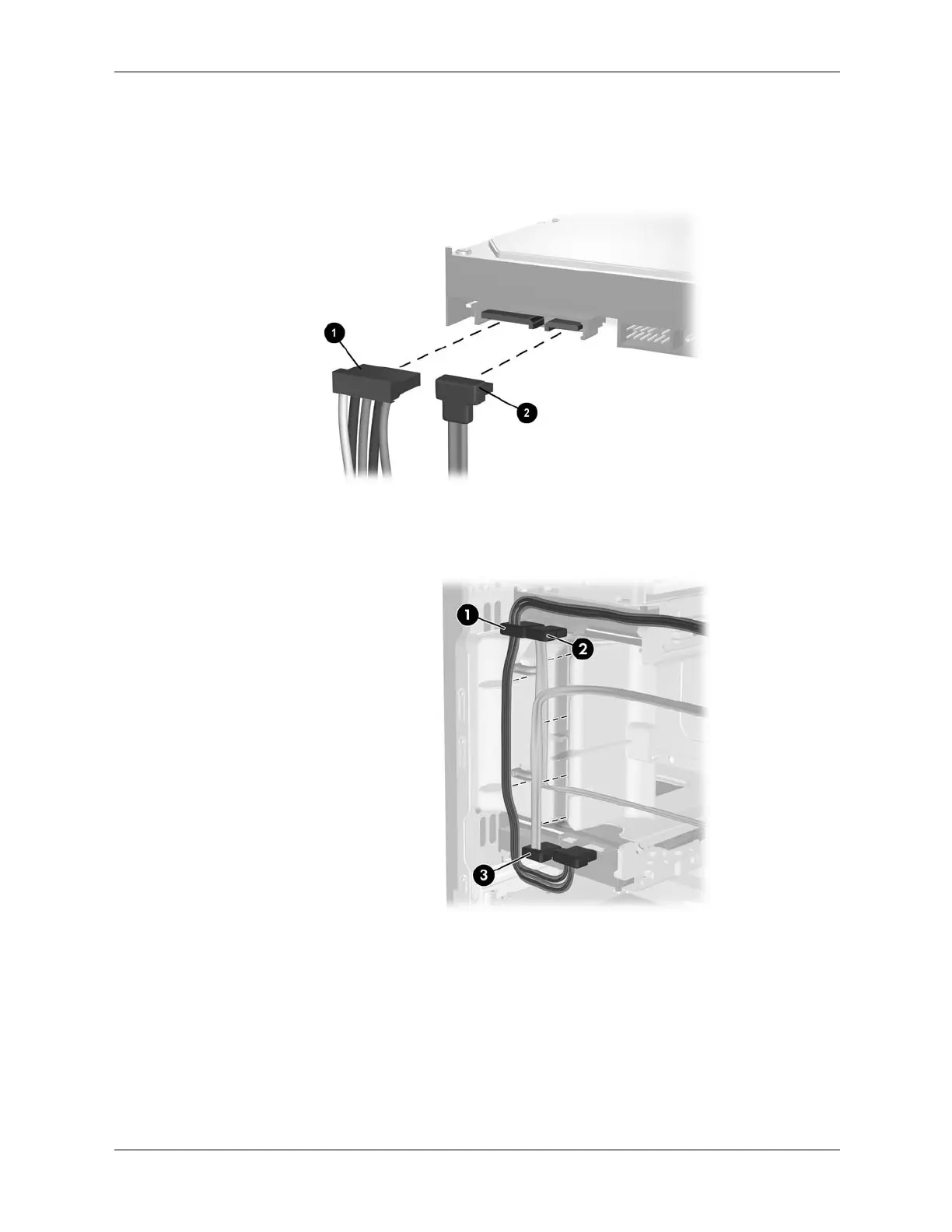

5. Disconnect the power 1 and data 2 cables from the back of the drive.
6. Remove the power cable 1 and primary data cable 2 and secondary data cable (if necessary)
3 from the cable retainers to make it easier to access the drive.
