Service Reference Guide, dc5750 437963-001 6–23
Removal and Replacement Procedures— Microtower (MT) Chassis

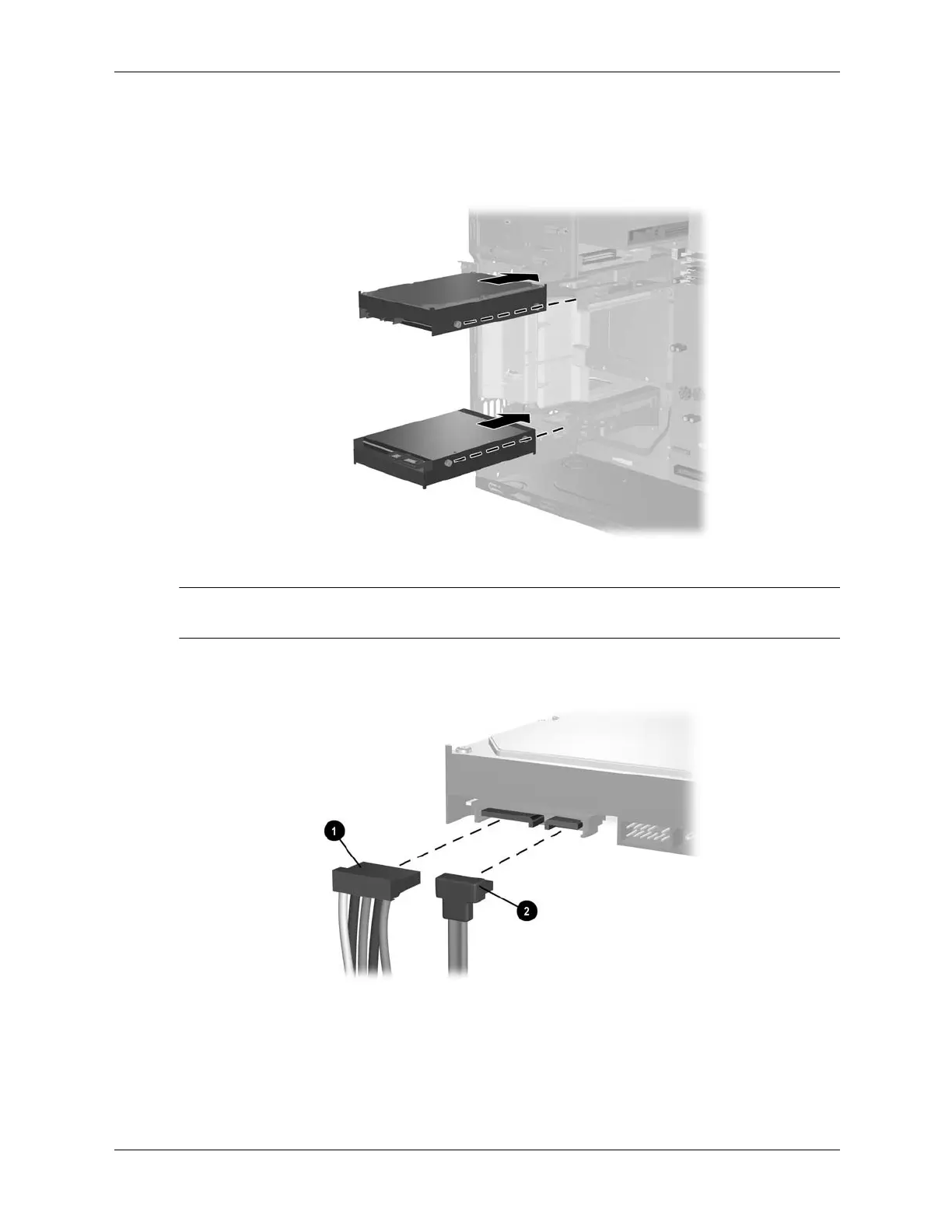

10. Slide the drive into the drive bay, making sure to align the guide scews with the guide slots,
ubtil the drive snaps into place. The upper bay is for the primatry hard drive. The bottom bay
is for the optional secondary hard drive.
11. Connect the power 1 and data 2 cables to the back of the hard drive.
✎
If you are installing a primary hard drive, use the power connector labeled P5. If you are
installing a secondary hard drive use the power cable labeled P4.
12. If installing a new drive, connect the oppposite end of the data cable to the appropriate
system board connector.
