HP Compaq dc7100 DT Hardware Reference Guide

B-4 www.hp.com Hardware Reference Guide
Battery Replacement

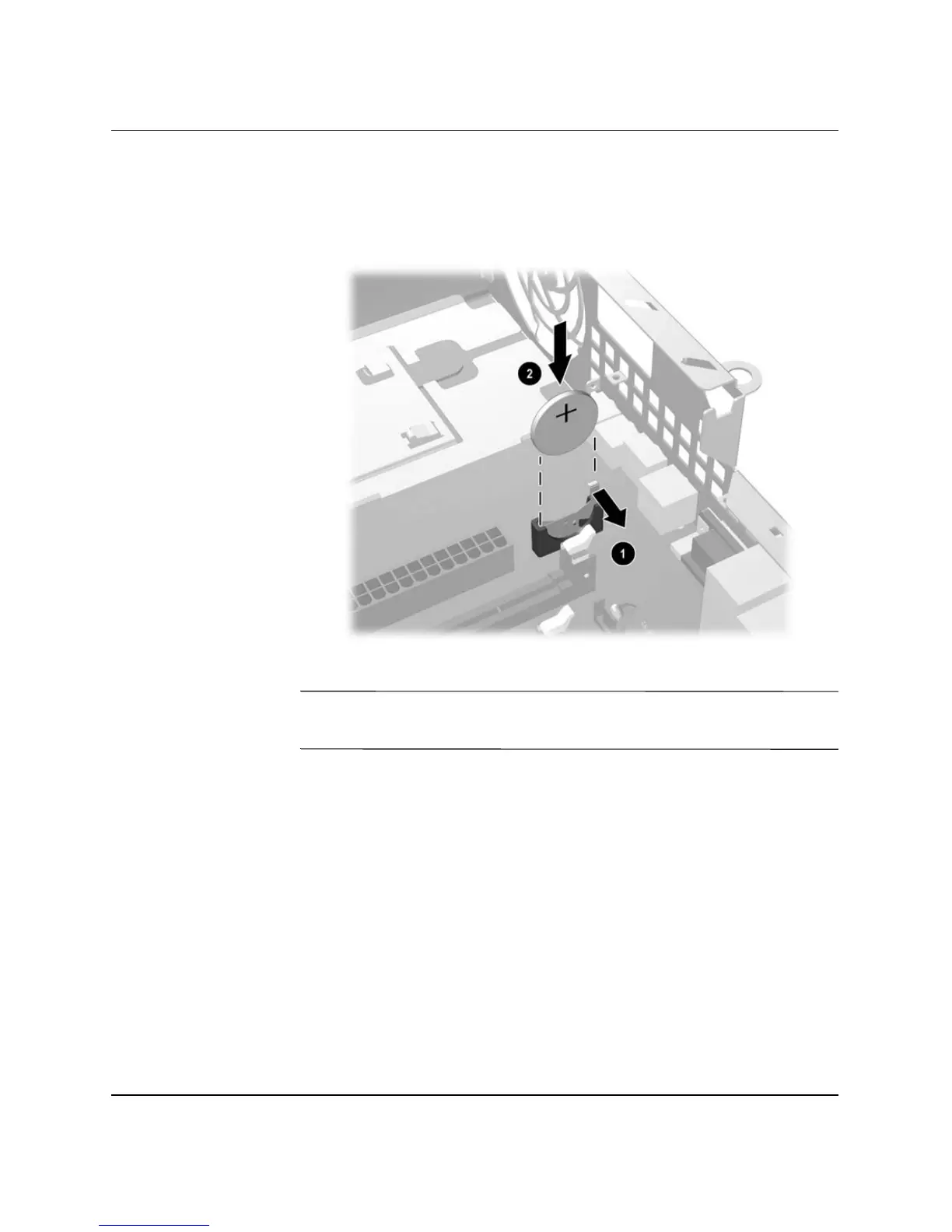

10. Move the catch to the right 1. Holding the replacement battery
with the positive side to the right, push the battery down until the
catch snaps over the upper edge of the battery 2.
Replacing the Battery
✎
After the battery has been replaced, use the following steps to
complete this procedure.
11. Replace the power supply:
a. Gently place the left side of the power supply in place.
a. Rotate the right side of the power supply down until it stops.
b. Slide the power supply back until it locks in place.
12. Replace the MultiBay daughter card by carefully aligning the
card with the connector slot and pressing the card firmly into
place.
13. Replace the MultiBay drive.
14. Engage the MultiBay security catch, if desired.
15. Replace the computer access panel.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
