HP Compaq dc7100 DT Hardware Reference Guide

Hardware Reference Guide www.hp.com 2–7
Hardware Upgrades
Attaching and Removing the Tower Stand
To use the Ultra-Slim Desktop computer in the tower configuration:
1. Exit all software applications, shut down the operating system
software, turn off the computer and any external devices, then
disconnect the power cord from the power outlet.
2. Rotate the computer into the tower position with the MultiBay
and fan on the bottom and the PCI expansion slot on the top.

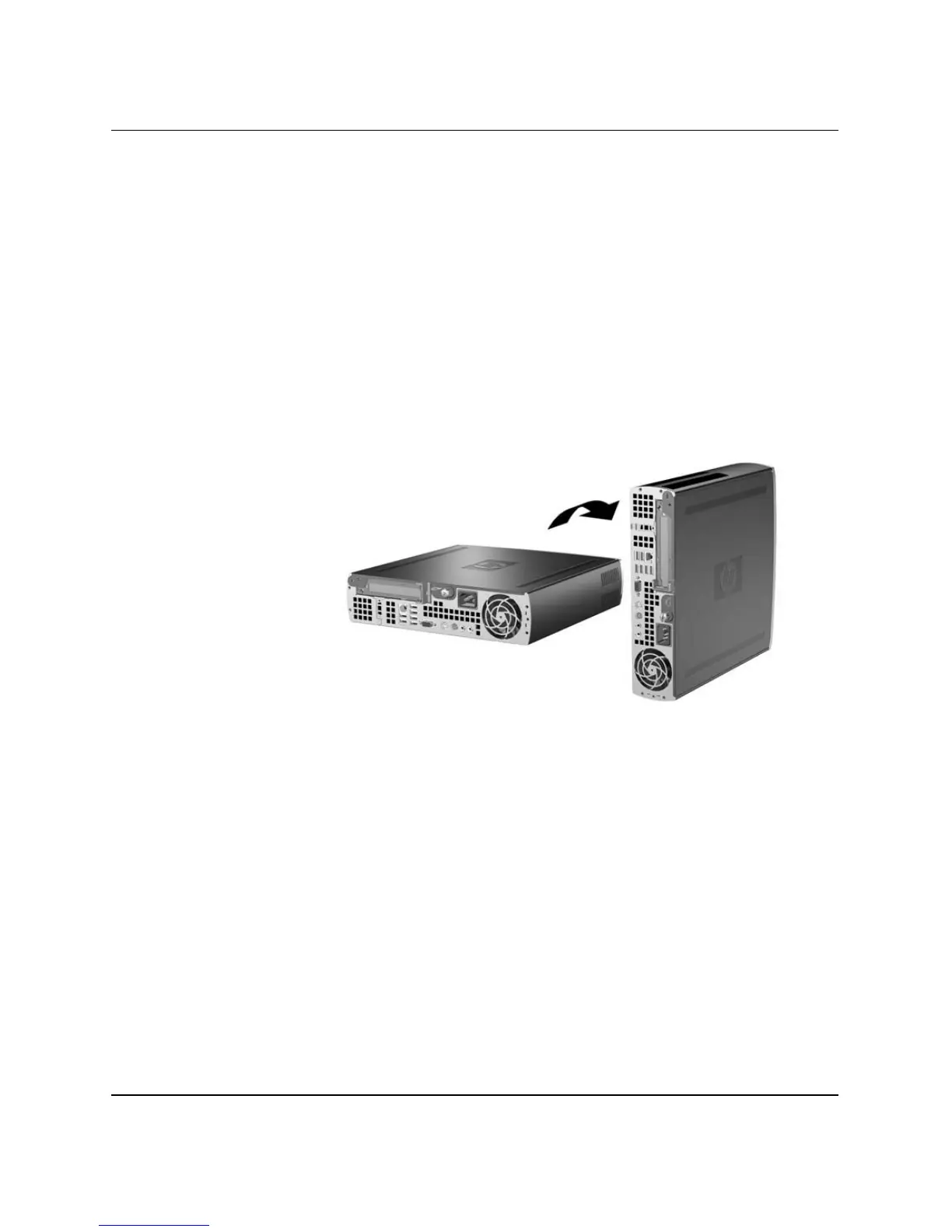

Rotating the Computer into the Tower Position

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
