HP Compaq dc7100 DT Hardware Reference Guide

C–6 www.hp.com Hardware Reference Guide
Security Provisions

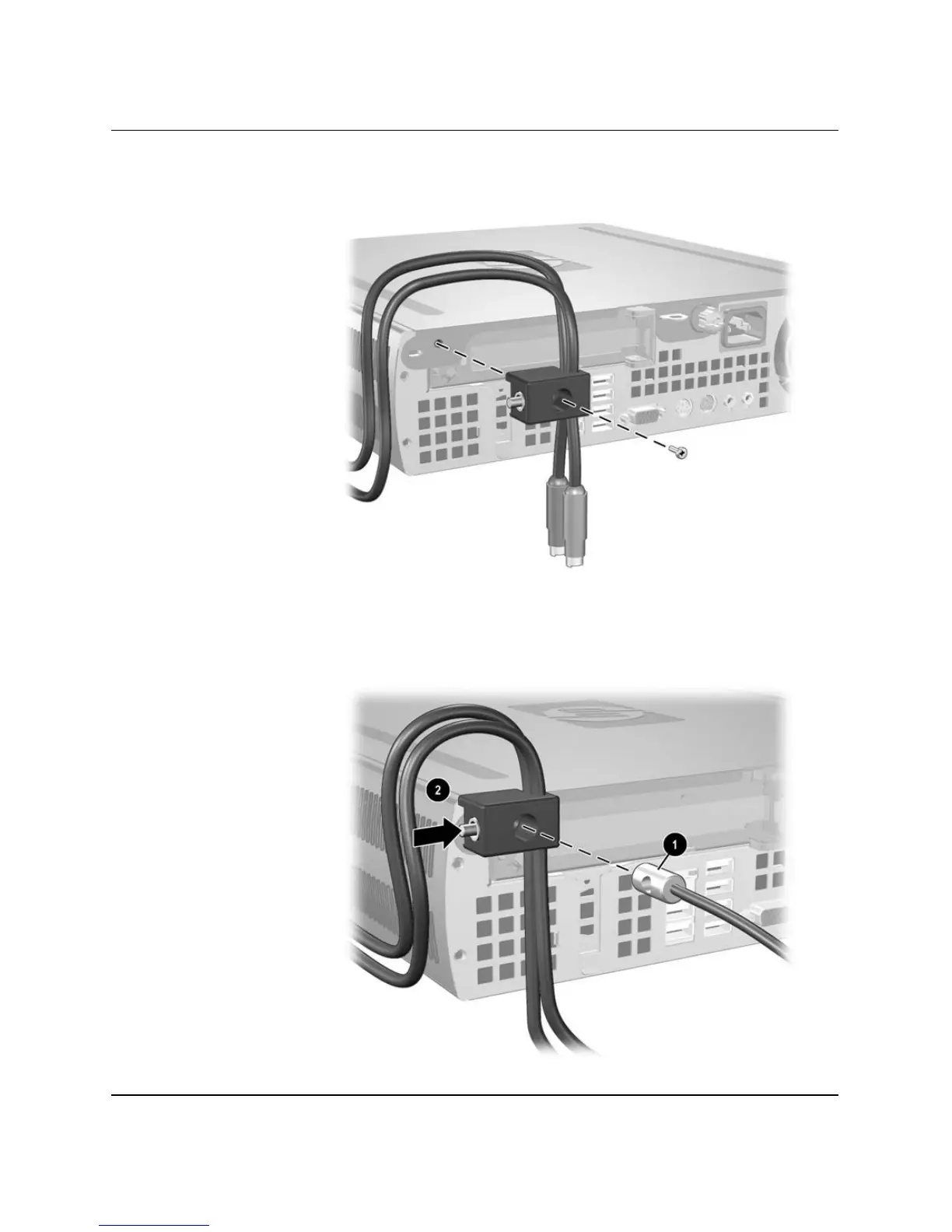

3. Screw the lock to the chassis using the screw provided.
4. Insert the plug end of the security cable into the lock 1 and push
the button in to engage the lock 2. Use the key provided to
disengage the lock.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
