Screw Listing
Maintenance and Service Guide A–21

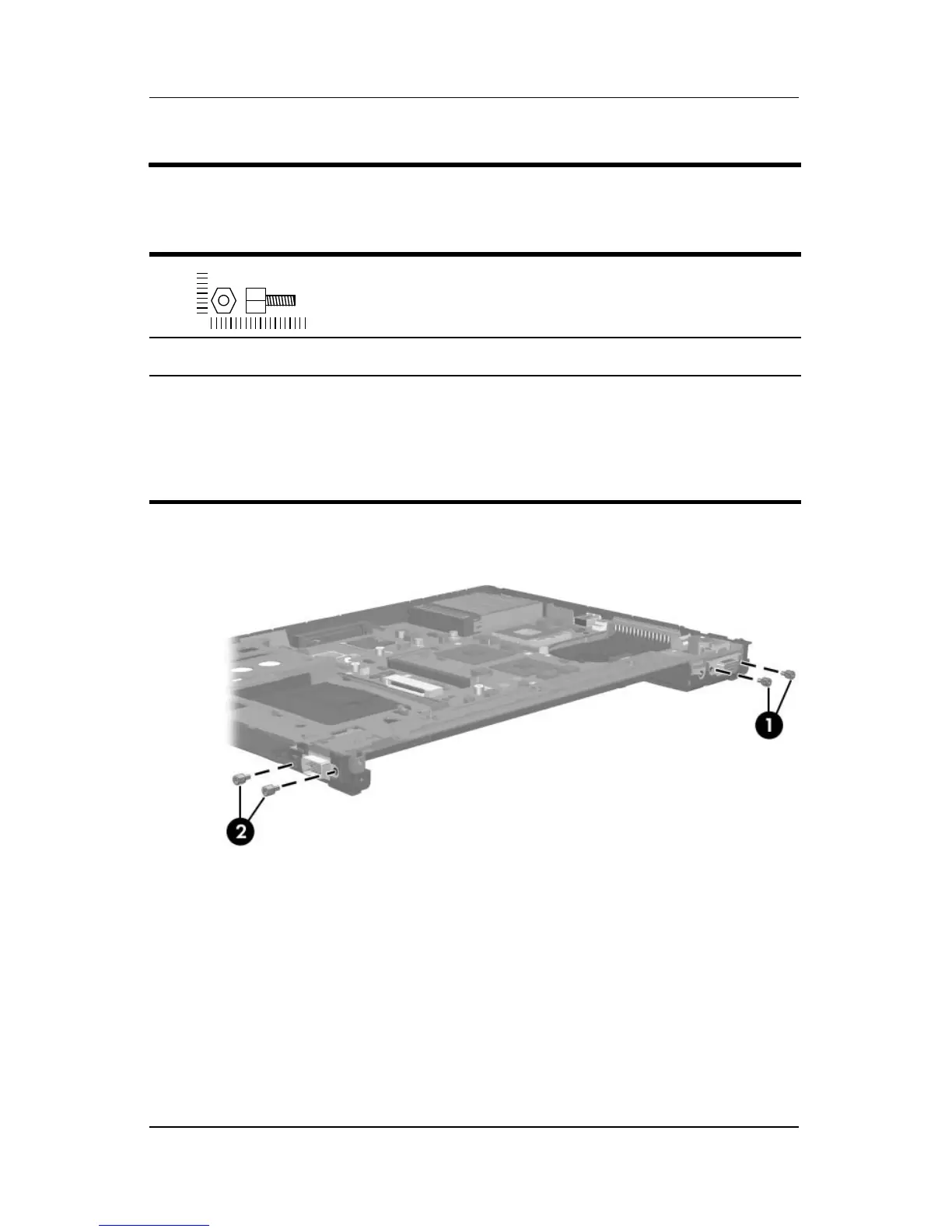

Hex HM5.0×12.0 Screw Lock Locations
Table A-13
Hex HM5.0×12.0 Screw Lock
Color Qty. Length Thread
Head
Width
Silver 4 12.0 mm 5.0 mm 5.0 mm
Where used:
1 Two screw locks that secure the system board to the computer (documented
in Section 5.21)
2 Two screw locks that secure the system board frame to the computer
(documented in Section 5.22)
mm
