5–18 Maintenance and Service Guide
Removal and Replacement Procedures

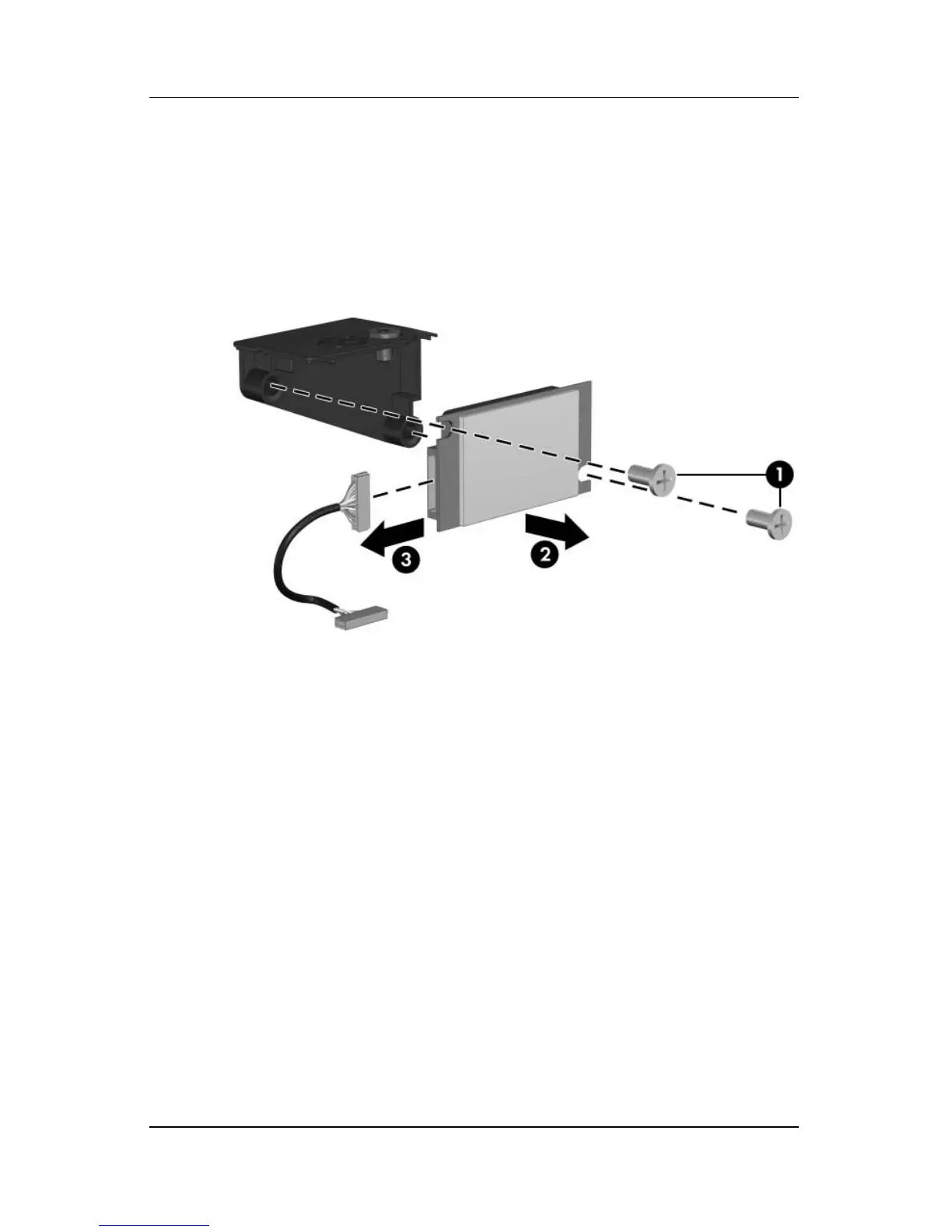

6. Remove the two Phillips PM1.5×3.0 screws 1 that secure
the Bluetooth module to the Bluetooth module cover.
7. Remove the Bluetooth module 2 from the cover.
8. Disconnect the Bluetooth module cable 3 from the module.
Removing the Bluetooth Module Cover
Reverse the above procedure to install a Bluetooth module.
