Product Description
Maintenance and Service Guide 1–19

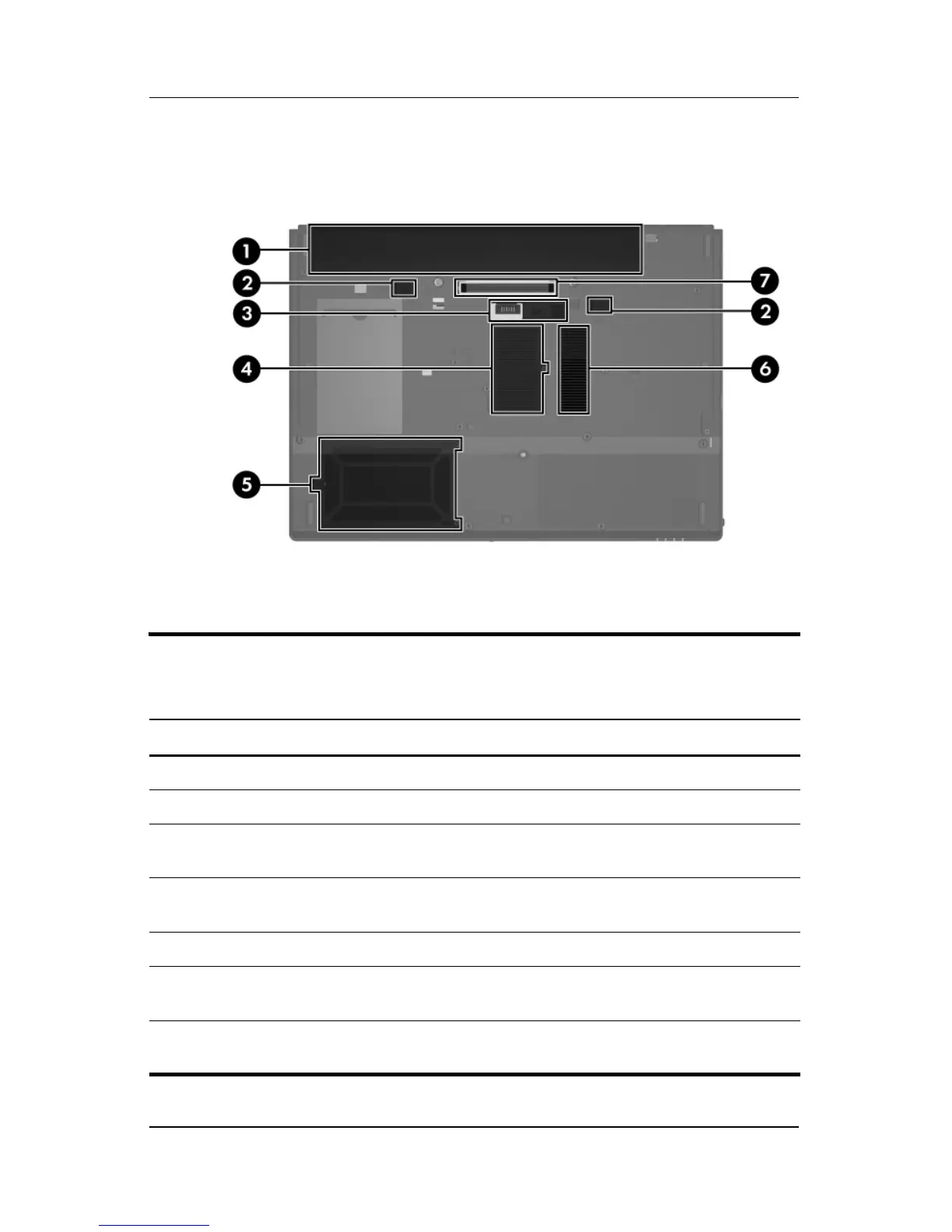

The external components on the bottom of the computer are
shown below and described in Table 1-8.
Bottom Components
Table 1-8
Bottom Components
Item Component Function
1 Battery bay Holds the battery.
2 Battery release latches (2) Secure the battery in the battery bay.
3 Accessory battery
connector
Connects an optional HP Ultra-Capacity
Battery or HP Extended Life Battery.
4 Memory module
compartment
Contains one memory slot that supports
replaceable memory modules.
5 Hard drive bay Holds the primary hard drive.
6 Exhaust vents Provides airflow to cool internal
components.
7 Docking connector
(full-featured models only)
Connects the computer to an optional
docking device.
