Screw Listing
Maintenance and Service Guide A–7

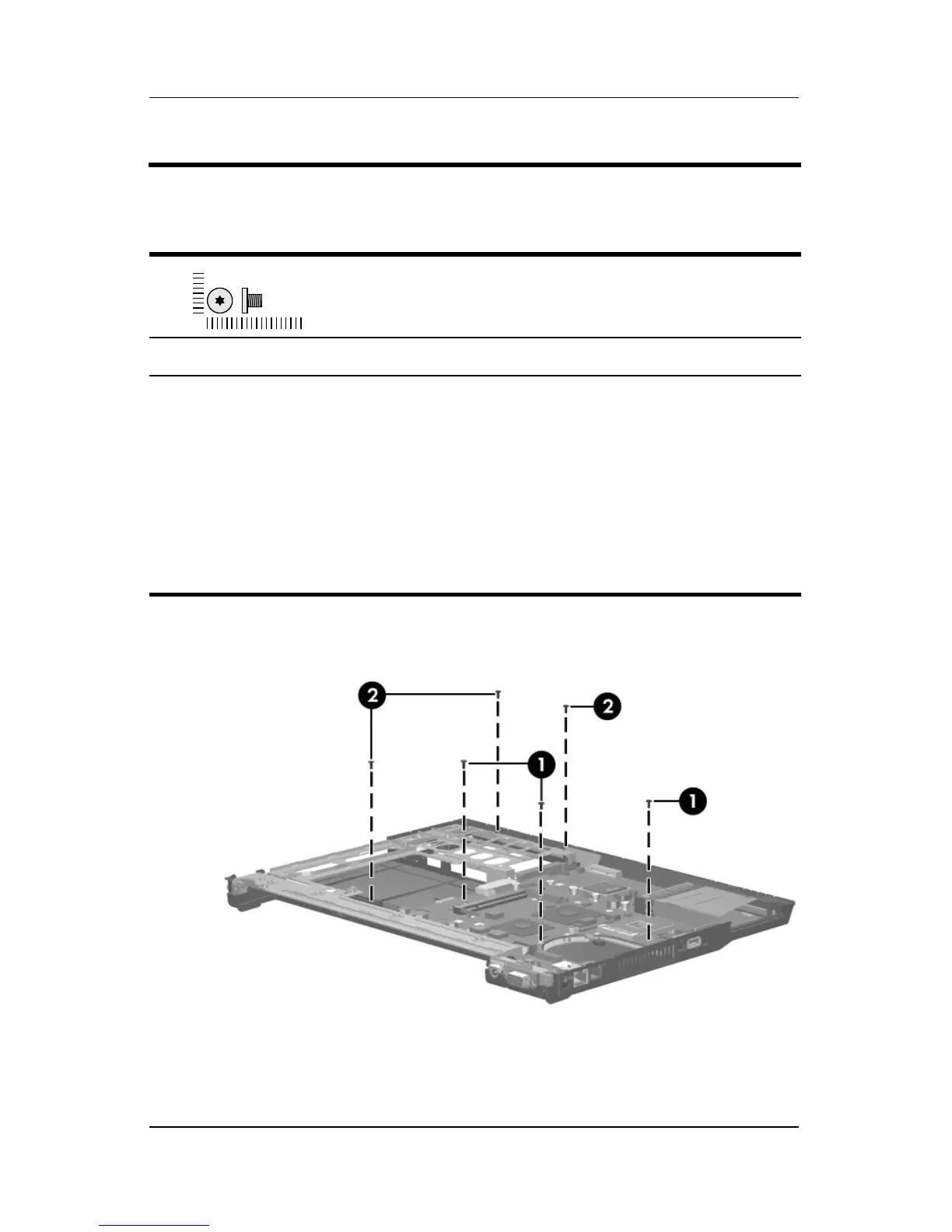

Torx8 T8M2.5×4.0 Screw Locations (full-featured model shown)
Table A-4
Torx8 T8M2.5×4.0 Screw
(Continued)
Color Qty. Length Thread
Head
Width
Black 13/11* 4.0 mm 2.5 mm 5.0 mm
Where used:
1 Three screws that secure the system board to the computer (documented in
Section 5.21)
2 Three screws that secure the system board frame to the computer
(documented in Section 5.22)
* 11 screws in defeatured model
Note: Defeatured model uses four screws to secure the system board to the
computer, screws
1 and the left-most screw 2.The system board frame is not
spared in the defeatured model.
mm
