Screw Listing
Maintenance and Service Guide A–13

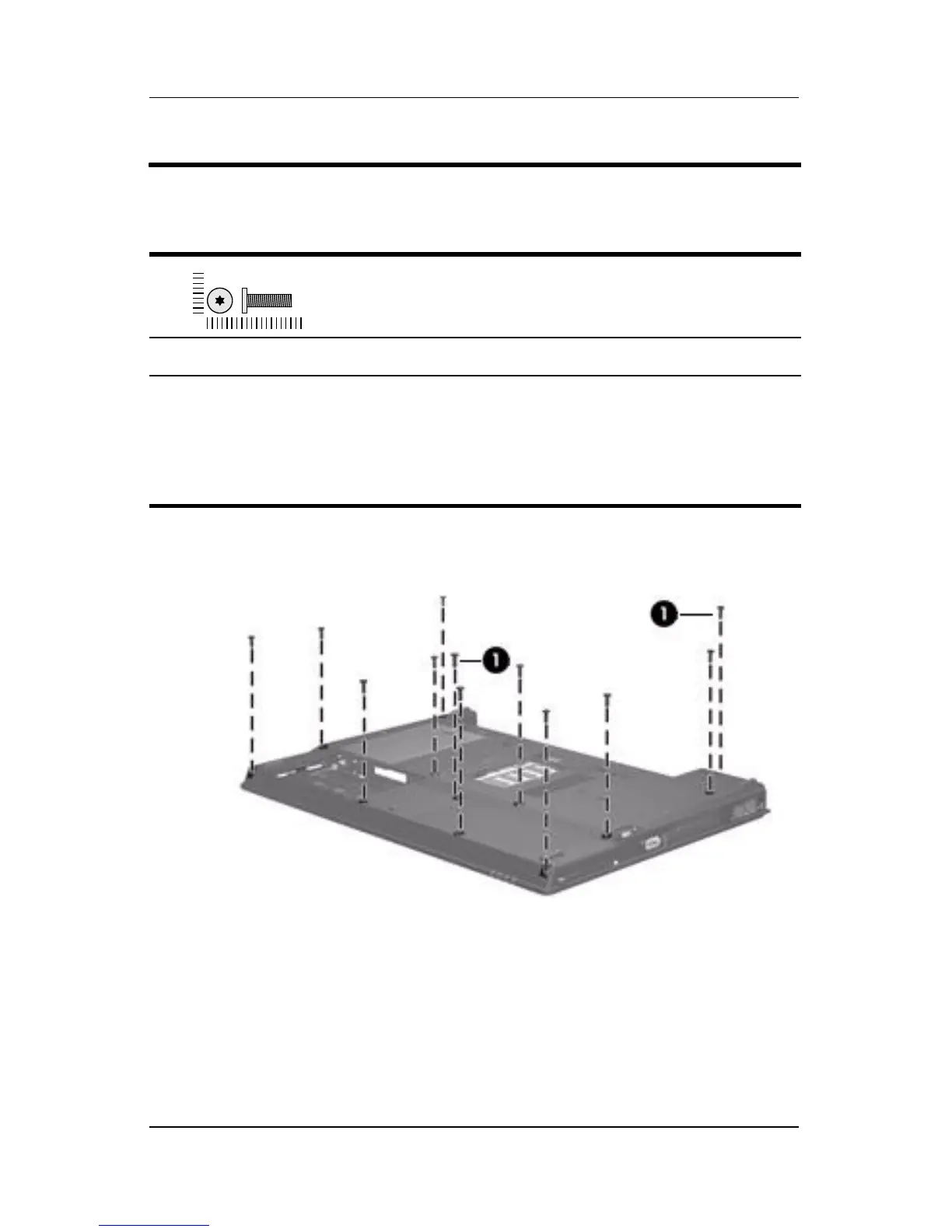

Torx8 T8M2.5×10.0 Screw Locations (full-featured model shown)
Table A-7
Torx8 T8M2.5×10.0 Screw
(Continued)
Color Qty. Length Thread
Head
Width
Black 20/18* 10.0 mm 2.5 mm 5.0 mm
Where used:
12 screws that secure the top cover to the computer (documented in
Section 5.19)
* 18 screws on defeatured model
Note: Screws
1 are not included on the defeatured model.
mm
